When the Target Becomes the Entry: Flipping TA on Its HeadMost technical-analysis textbooks teach pattern targets as destinations. A breakout occurs, the pattern provides a measured objective, and the trader watches price travel toward it.
But what if reaching the destination creates the next setup?
That is the counterintuitive idea explored in this case study. Gold Futures (GC) have produced a recognizable double-bottom structure on the daily chart. After price broke through the pattern's neckline, the subsequent advance brought GC toward the double bottom's projected objective.
Instead of treating that objective exclusively as an exit, we will examine it as a potential entry area for a move in the opposite direction.
There is an important caveat: the projected target is not being asked to do all the work. Around the same area, we also find Fibonacci retracement levels, an area of UnFilled Orders (UFO), and an extended reading relative to a Keltner Channel.
Individually, none of these observations establishes that price must reverse. Together, however, they create an interesting technical question:
Can the destination of one market move become the starting point for studying the next one?
The Double Bottom Sets the Stage

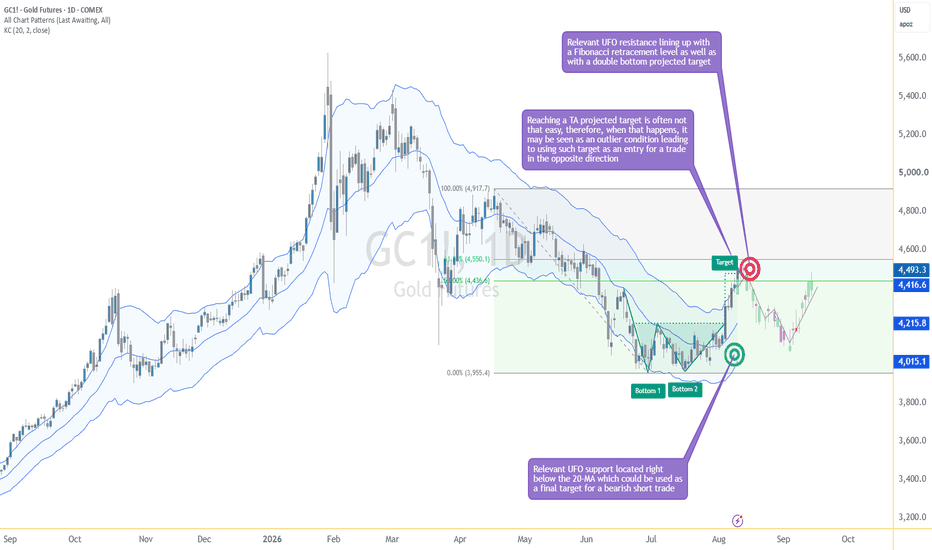

The daily GC chart provides the starting point.
After declining into the July area, gold established two distinct lows near a similar price region. Between them, price rebounded enough to create the characteristic structure of a double bottom.
Once price subsequently moved through the neckline, the pattern became relevant from a classical technical-analysis perspective.
The usual procedure is straightforward: measure the approximate vertical distance between the bottom and neckline and project that distance upward from the breakout. This produces the pattern's measured objective.
GC then advanced rapidly toward that objective.
There is a useful distinction here. A double bottom is commonly interpreted as a potential bullish reversal structure. Nothing about our analysis requires rejecting that interpretation.
Instead, we are separating two different time horizons.
The larger structure may have shifted in a bullish direction while the shorter-term move that followed the breakout becomes temporarily extended. A bearish trade taken near the measured objective would therefore represent a potential countertrend mean-reversion setup, rather than a declaration that the double bottom has failed.
That distinction will matter when we select our downside objectives.
Why Would a Target Become an Entry?
A technical target is a projection, not a promise.
Markets do not owe a chart pattern its measured move. Some patterns fail almost immediately. Others break out but never complete their projection. Still others travel the entire distance.
That last group creates an interesting condition.
Think about what price has accomplished by the time an ambitious projected target is reached. It has not simply arrived at another number on the chart. It has traveled the distance necessary to complete an entire technical pattern.
If that movement happens particularly quickly, the market may also become increasingly extended from its recent equilibrium.
This changes the question.
Instead of asking only:
"Has the target been reached?"
we can ask:
"What did price have to do to get there?"
That distinction is the foundation of this setup.
A projected target can describe not only where price might go, but also how far price has already traveled.
None of this means that pattern targets inherently cause reversals. They do not. A strong market can reach a measured objective and continue traveling in the same direction.
For that reason, using every pattern objective blindly as a countertrend entry would turn an interesting observation into a very weak methodology.
We need additional evidence.
Confluence: Don't Ask One Price Level to Do Everything
This is where the GC chart becomes considerably more interesting.
The double-bottom projection arrives in an area containing several other technical references.
A Fibonacci study drawn across the larger decline identifies the 50% retracement around 4,436.6 and the 61.8% retracement around 4,550.1.
Those levels effectively surround the double-bottom projected objective.
There is also a red UFO—an area of potential sell-side UnFilled Orders—extending approximately from 4,450.1 to 4,543.2.
Rather than one magic number, we therefore have a technical region:
Double-bottom measured objective
50% Fibonacci retracement around 4,436.6
61.8% Fibonacci retracement around 4,550.1
Sell-side UFO between approximately 4,450.1 and 4,543.2
That distinction between a price and an area is important.
Markets rarely respect the geometrical precision traders sometimes impose on charts. A Fibonacci ratio calculated to a decimal place does not mean that every participant suddenly changes behavior at exactly that price.
Confluence is more useful when it defines a neighborhood.
Here, several analytical methods independently identify approximately the same neighborhood as relevant.
That does not guarantee a reaction. It simply gives us more information than the double-bottom target could provide by itself.
One More Clue: Price Is Running Hot
The Keltner Channel adds another dimension.
Unlike the pattern target and Fibonacci levels, the channel is not primarily identifying horizontal resistance. Instead, it helps us examine how extended price has become relative to a moving reference.
On the chart, GC's advance has pushed price beyond the upper Keltner Channel.
Again, that is not automatically a bearish signal.
Markets can remain extended during strong directional moves, and selling something simply because it looks "overextended" can be an expensive habit.
What matters here is the combination.
Price is approaching the completion of a double-bottom measured move.
That objective is entering a 50%-61.8% Fibonacci retracement region.
The same neighborhood contains a sell-side UFO.
And the advance has stretched price beyond the upper Keltner boundary.
The individual pieces describe different aspects of the market. The pattern measures distance. Fibonacci examines proportional retracement. The UFO identifies an area of UnFilled Orders.
The Keltner Channel examines extension.
Their convergence is what makes the area worth studying.
Two Different Ways to Approach the Entry
If GC enters this region, execution style becomes another variable.
An aggressive approach could use a predefined limit order within the area. For illustration, 4,450.1, the lower boundary of the red UFO, can serve as our hypothetical entry.
This approach has an obvious trade-off. Entering immediately provides the intended price location, but the trader has no evidence yet that sellers will actually respond.
A more conservative approach could wait.
Price could first enter the confluence area, after which the trader would look for evidence of rejection or a developing reversal before establishing a bearish position.
The trade-off reverses. More information becomes available, but confirmation may occur at a less favorable price—or price may leave the area without providing an entry at all.
Neither approach is universally superior. They represent different ways of balancing location against confirmation.
For the numerical case study below, we will use 4,450.1 as the hypothetical entry so the risk calculations remain transparent and reproducible.
Risk First: Where Does the Idea Stop Making Sense?
Before discussing objectives, the setup needs an invalidation point.
The upper Fibonacci reference sits around 4,550.1, slightly above the upper edge of the red UFO at approximately 4,543.2.
Rather than placing the hypothetical stop precisely on that technical reference, this case study uses 4,560.1, providing a 10-point buffer above the 61.8% Fibonacci level.
That produces:
Illustrative short entry: 4,450.1
Illustrative stop: 4,560.1
Price risk: 110.0 points
This is where futures contract size becomes critical.
The exact same chart setup creates very different dollar exposure depending on which contract expresses it.
For the 100-troy-ounce GC contract, a $1.00 move in gold corresponds to $100 per contract. A 110-point adverse move would therefore represent approximately $11,000 of risk per contract, before commissions, fees and possible slippage.
For the 10-troy-ounce Micro Gold Futures (MGC), the same 110-point distance represents approximately $1,100 per contract.
For the 1-troy-ounce 1-Ounce Gold Futures (1OZ), it represents approximately $110 per contract.
The technical chart has not changed.
The dollar risk has.
That is precisely why position sizing should come after technical invalidation has been identified. Moving a technically meaningful stop simply because a particular contract creates excessive monetary exposure reverses that logic.
Two Objectives, Two Different Messages
Because this is a countertrend setup inside a potentially bullish larger structure, the first objective does not require gold to establish a new bearish trend.
The 20-period moving average around 4,184.3 (at the time of writing this article) provides the first potential objective.
From the illustrative 4,450.1 entry:
Risk to 4,560.1: 110.0 points
Distance to Target 1 at 4,184.3: 265.8 points
Reward-to-risk ratio: approximately 2.42:1
Target 1 is fundamentally a mean-reversion hypothesis. Price has become extended, and the setup asks whether it can rotate back toward its moving average.
The second objective asks more from the market.
A green UFO representing potential buy-side UnFilled Orders sits around 4,115.2, below the moving average.
Using that as Target 2:
Risk: 110.0 points
Distance to Target 2: 334.9 points
Reward-to-risk ratio: approximately 3.04:1
This distinction deserves attention.
Target 1 asks for mean reversion. Target 2 asks for something more.
A trader could therefore treat them differently. One possible risk-management framework would involve reducing exposure around the moving average while leaving some exposure for the lower UFO. Another could select only one objective from the beginning.
These alternatives are presented for illustration, not as instructions to enter or manage a position.
Actual fills, gaps, commissions and slippage would also alter the theoretical ratios.
Same Gold Market, Three Different Contract Sizes
The underlying price analysis can be examined through three differently sized COMEX gold futures contracts.
GC — Gold Futures: Contract size: 100 troy ounces | Minimum tick: $0.10/oz | Tick value: $10.00
MGC — Micro Gold Futures: Contract size: 10 troy ounces | Minimum tick: $0.10/oz | Tick value: $1.00
1OZ — 1-Ounce Gold Futures: Contract size: 1 troy ounce | Minimum tick: $0.25/oz | Tick value: $0.25
Contract specifications should always be checked before use because exchange specifications can change.
What About Margin?
Margin deserves special attention because it is not the same thing as trade risk. Current margin requirements at the time of writing this article:
GC ≈ $22,000
MGC ≈ $2,200
1OZ ≈ $220
These are calculated illustrations based on the CME methodology. Most importantly, margin is not maximum loss.
Risk Management Is the Setup
It is tempting to focus on the attractive part of this chart: several technical observations clustering around one potential reversal area.
But confluence does not remove uncertainty.
The market can trade directly through every level we have identified.
For that reason, the sequence matters:
Identify the technical area.
Decide what price behavior would invalidate the hypothesis.
Measure the distance between entry and invalidation.
Translate that distance into dollars for the chosen contract.
Determine whether that exposure fits the trader's predefined risk constraints.
Only then consider execution.
Notice what does not happen in that sequence: selecting a contract first and then squeezing the stop closer until the dollar exposure looks comfortable.
GC, MGC and 1OZ demonstrate why this distinction matters. One 110-point stop corresponds to approximately $11,000, $1,100 or $110 respectively before trading costs and slippage.
The market structure is identical. Position exposure is not.
Traders should also consider the possibility of slippage and price gaps. A stop defines an intended exit mechanism; it does not guarantee execution at the specified price.
The Bigger Lesson: Targets Contain Information
The most interesting part of this setup may ultimately have little to do with whether this particular bearish scenario works.
It is the analytical inversion.
Technical analysis often encourages us to divide chart levels into fixed categories: entries are entries, stops are stops, and targets are targets.
Markets do not know those labels.
A projected target is simply a price derived from information contained in an earlier structure. Once price reaches that location, the target has fulfilled one analytical purpose—but it may simultaneously begin serving another.
That is especially interesting when reaching the target required an unusually aggressive move and when other independent forms of analysis identify approximately the same area.
In this GC case study, the measured objective is joined by the 50% and 61.8% Fibonacci retracement region, a sell-side UFO and an extended position relative to the Keltner Channel.
If a bearish reaction develops there, the 20-period moving average around 4,184.3 provides a first mean-reversion reference, while the lower UFO around 4,115.2 offers a second, more demanding objective.
If price instead continues through the confluence area and the predefined invalidation point, the hypothesis has supplied something equally important: a reason to recognize that the anticipated scenario is not developing as intended.
That is ultimately the purpose of a structured trade idea.
Not certainty.
A framework for deciding where the hypothesis becomes interesting, where it becomes wrong, and whether the potential destination justifies the risk required to investigate it.
So, the next time a chart pattern approaches its measured objective, perhaps the analysis should not automatically end there.
Sometimes the more interesting question begins precisely at the target.
Data Consideration
When charting futures, the data provided could be delayed. Traders working with the ticker symbols discussed in this idea may prefer to use CME Group real-time data plan on TradingView: www.tradingview.com - This consideration is particularly important for shorter-term traders, whereas it may be less critical for those focused on longer-term trading strategies.
General Disclaimer
The trade ideas presented herein are solely for illustrative purposes forming a part of a case study intended to demonstrate key principles in risk management within the context of the specific market scenarios discussed. These ideas are not to be interpreted as investment recommendations or financial advice. They do not endorse or promote any specific trading strategies, financial products, or services. The information provided is based on data believed to be reliable; however, its accuracy or completeness cannot be guaranteed. Trading in financial markets involves risks, including the potential loss of principal. Each individual should conduct their own research and consult with professional financial advisors before making any investment decisions. The author or publisher of this content bears no responsibility for any actions taken based on the information provided or for any resultant financial or other losses.
