Non-standard chart types data

These functions allow scripts to fetch information from non-standard bars or chart types, regardless of the type of chart the script is running on. They are heikinashi, renko, linebreak, kagi and pointfigure. All of them work in the same manner; they create a special ticker identifier to be used as the first argument in a security function call.

heikinashi function

Heikin-Ashi means average bar in Japanese. The open, high, low and close prices of Heikin-Ashi candlesticks are synthetic; they are not actual prices. Each value is calculated using combinations of normal OHLC values from the current and previous bar. The calculations used make Heikin-Ashi bars less noisy than normal candlesticks.

The heikinashi() function creates a special ticker identifier for requesting Heikin-Ashi data with the security function.

This script requests low prices of Heikin-Ashi bars and plots them on top of the usual candlesticks:

Note that the low prices of Heikin-Ashi bars are different from the low prices of the normal candlesticks.

If you wanted to switch off extended hours data in Example 5, you would need to use the tickerid function first, instead of using the syminfo.tickerid variable directly:

Note that we use an additional fourth parameter with security: gaps=barmerge.gaps_on, which instructs the function not to use previous values to fill slots where data is absent. This means we will get empty areas during extended hours. To be able to see this on the chart, we also need to use a special plot style (style=plot.style_linebr), the Line With Breaks style.

You may plot Heikin-Ashi bars from a script so they look exactly like a chart’s Heikin-Ashi bars:

You will find more information on the plotcandle() and plotbar() functions in the Custom OHLC bars and candles section.

Renko function

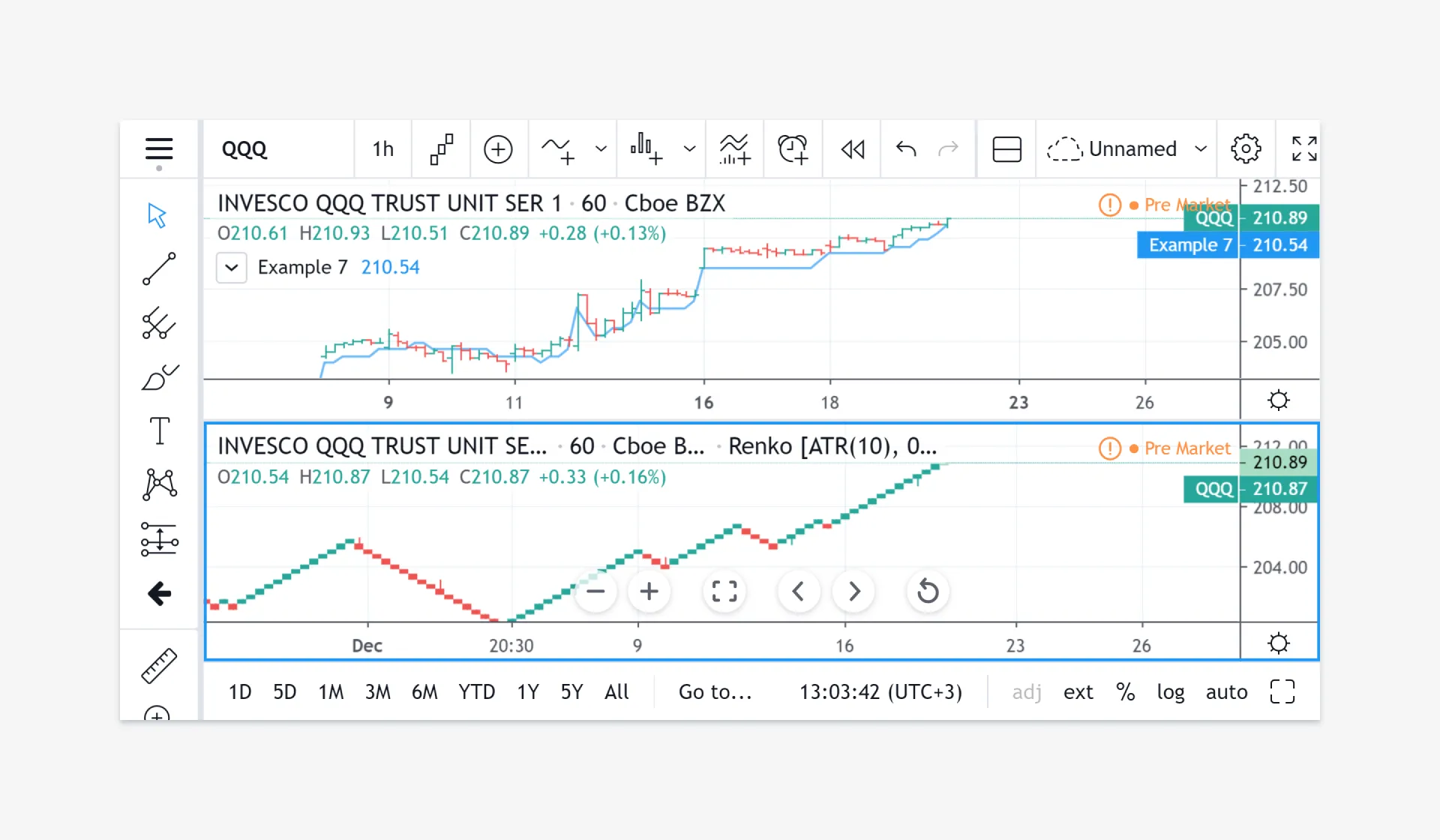

Renko bars only plot price movements, without taking time or volume into consideration. They are constructed from ticks and look like bricks stacked in adjacent columns¹. A new brick is drawn after the price passes the top or bottom by a predetermined amount.

Please note that you cannot plot Renko bricks from Pine script exactly as they look. You can only get a series of numbers similar to OHLC values for Renko bars and use them in your algorithms.

For detailed information, see renko().

Linebreak function

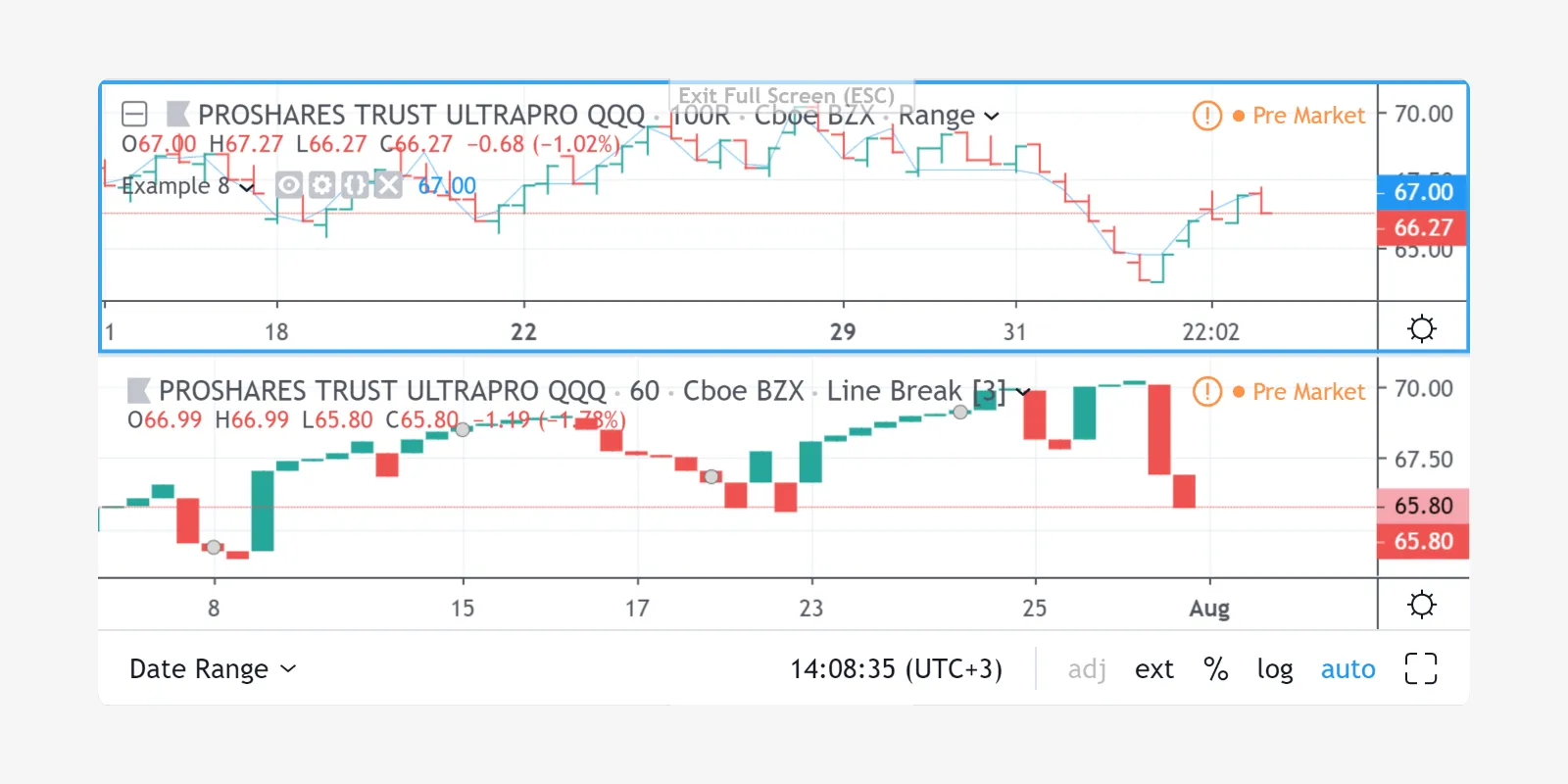

The Line Break chart type displays a series of vertical boxes that are based on price changes[^2].

Please note that you cannot plot Line Break boxes from Pine script exactly as they look. You can only get a series of numbers similar to OHLC values for Line Break charts and use them in your algorithms.

For detailed information, see linebreak().

Kagi function

Kagi charts are made of a continuous line that changes directions. The direction changes when the price changes[^3] beyond a predetermined amount.

Please note that you cannot plot Kagi lines from Pine script exactly as they look. You can only get a series of numbers similar to OHLC values for Kagi charts and use them in your algorithms.

For detailed information, see kagi().

Pointfigure function

Point and Figure (PnF) charts only plot price movements[^4], without taking time into consideration. A column of X’s is plotted as the price rises, and O’s are plotted when price drops.

Please note that you cannot plot PnF X’s and O’s from Pine script exactly as they look. You can only get a series of numbers that are similar to OHLC values for PnF charts and use them in your algorithms. Every column of X’s or O’s is represented with four numbers. You may think of them as synthetic OHLC PnF values.

For detailed information, see pointfigure().
