Functions and annotations
Pine Script distinguishes between functions and annotation functions (or just annotations). Syntactically they are similar, but they serve different purposes.
While functions are generally used to calculate values and for the result they return, annotations are mostly used for their side effects and only occasionally for the result some of them return.
Functions may be built-in, such as sma(), ema(), rsi(), or user-defined. All annotations are built-in.
The side effects annotations are used for include:
- assigning a name or other global properties to a script using study() or strategy()
- determining the inputs of a script using input()
- determining the outputs of a script using plot()
In addition to having side effects, a few annotations such as plot
and
hline
also return a result which may be used or not. This result,
however, can only be used in other annotations and can’t take part in
the script’s calculations (see
fill()
annotation).
A detailed overview of Pine annotations can be found here.
Syntactically, user-defined functions, built-in functions and annotation functions are similar, i.e., we call them by name with a list of arguments in parentheses. Differences between them are mostly semantic, except for the fact that annotations and built-in functions accept keyword arguments while user-defined functions do not.
Example of an annotation call with positional arguments:
The same call with keyword arguments:
It’s possible to mix positional and keyword arguments. Positional arguments must go first and keyword arguments should follow them. So the following call is not valid:
Execution of Pine functions and historical context inside function blocks
The history of series variables used inside Pine functions is created through each successive call to the function. If the function is not called on each bar the script runs on, this will result in disparities between the historic values of series inside vs outside the function’s local block. Hence, series referenced inside and outside the function using the same index value will not refer to the same point in history if the function is not called on each bar.
Let’s look at this example script where the f
and f2
functions are
called every second bar:

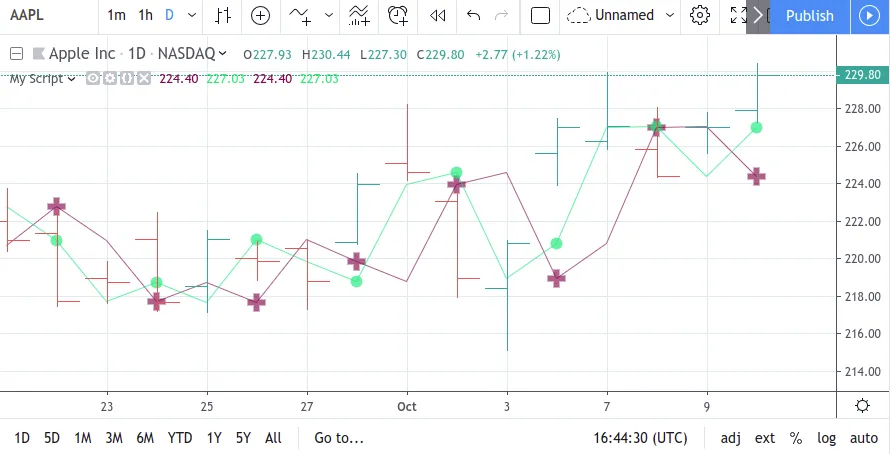

As can be seen with the resulting plots, a[1]
returns the previous
value of a in the function’s context, so the last time f
was called
two bars ago - not the close of the previous bar, as close[1]
does
in f2
. This results in a[1]
in the function block referring to a
different past value than close[1]
even though they use the same index
of 1.
Why this behavior?
This behavior is required because forcing execution of functions on each
bar would lead to unexpected results, as would be the case for a
label.new
function call inside an if branch, which must not execute
unless the if condition requires it.
On the other hand, this behavior leads to unexpected results with certain built-in functions which require being executed each bar to correctly calculate their results. Such functions will not return expected results if they are placed in contexts where they are not executed every bar, such as if branches.
The solution in these cases is to take those function calls outside their context so they can be executed on every bar.
In this script, barssince
is not called on every bar because it is
inside a ternary operator’s conditional branch:

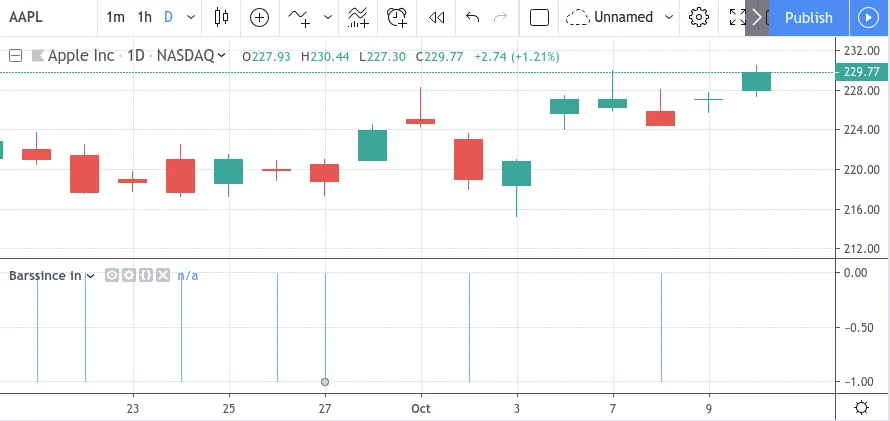

This leads to incorrect results because barssince
is not executed on
every bar:
The solution is to take the barssince call outside the conditional branch to force its execution on every bar:
Using this technique we get the expected output:
Exceptions
Not all built-in functions need to be executed every bar. These are the functions which do not require it, and so do not need special treatment:
abs, acos, asin, atan, ceil, cos, dayofmonth, dayofweek, exp, floor, heikinashi, hour, kagi, linebreak, log, log10, max, min, minute, month, na, nz, pow, renko, round, second, sign, sin, sqrt, tan, tickerid, time, timestamp, tostring, weekofyear, year
