BulletProof Market Structure Dashboard [3M Capital]

Aug 24

A comprehensive multi-timeframe market structure analysis dashboard built for day traders who use Smart Money Concepts, institutional order flow, and confluence-based decision-making.

What It Does

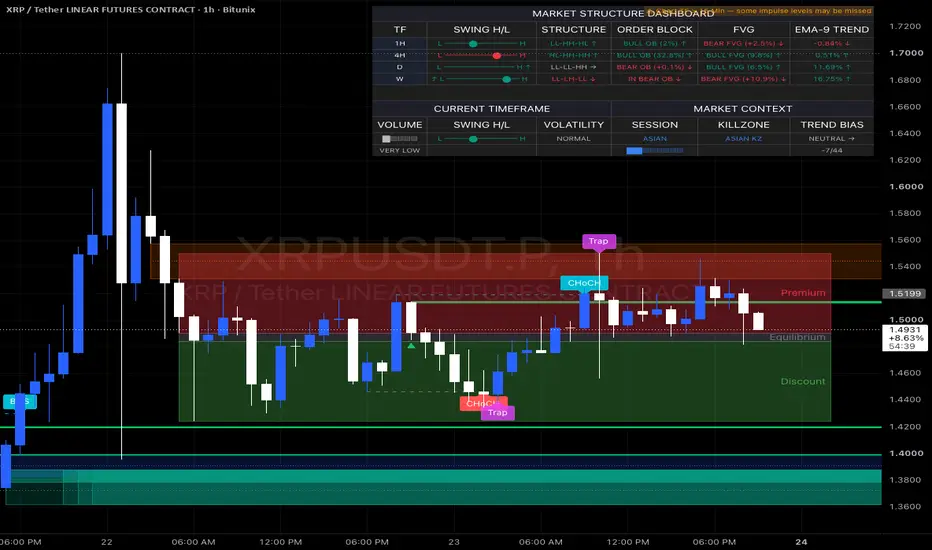

This indicator consolidates key market structure data across up to seven user-defined timeframes into a single on-chart dashboard. Rather than switching between timeframes manually, the dashboard presents a unified view of swing structure, order blocks, fair value gaps, EMA trend, and price position — all updating in real time.

Dashboard Sections

• Market Structure Dashboard (MTF) — Displays up to seven timeframes simultaneously. Each row shows the selected timeframe's swing high/low position (with visual range bar), structure sequence (HH/HL/LH/LL with bias arrow), nearest unmitigated order block, nearest unmitigated FVG, and EMA trend distance. All columns are individually toggleable.
• Current Timeframe Panel — Shows volume state relative to its 20-bar average (with bar meter), current swing range position, and ATR-based volatility state. Provides a quick read on whether conditions are active or quiet on the chart timeframe.
• Market Context Panel — Displays the active trading session (Asian, London, New York) with elapsed progress bar, current ICT killzone status with countdown to the next killzone, and a weighted trend bias score calculated from the enabled MTF factors.
• HTF Levels Panel — Tracks price position relative to Previous Day, Previous Week, and Previous Month high/low levels using the same visual range bar format. Includes liquidity sweep detection when price breaks and reclaims a level.

Visual Overlays

• Order Block zones with configurable lookback and extension
• Fair Value Gap zones with dashed borders
• Swing labels (HH/HL/LH/LL) plotted at detected pivot points
• Swing high/low horizontal lines
• Previous Day, Week, and Month high/low lines with auto-combining labels when levels cluster
• EMA plot

Trend Bias Engine

• The trend bias score is calculated by combining up to five factors — Structure, Order Block direction, FVG direction, EMA trend, and Swing position — across all active timeframes. Each timeframe carries a user-defined weight (0–10), and the final score is expressed as a directional total against the maximum possible. The bias state reads as Bullish, Lean Bull, Neutral, Lean Bear, or Bearish.

Alerts

Full alert coverage across all dashboard sections with 20+ configurable alert conditions:

• MTF swing breaks and liquidity sweeps (per timeframe)
• Structure bias changes (per timeframe)
• Order block and FVG entry/direction changes (per timeframe)
• EMA trend flips (per timeframe)
• Current timeframe swing breaks/sweeps, volume state changes, volatility state changes
• Session and killzone transitions with countdown
• Trend bias state changes
• HTF level (PDH/L, PWH/L, PMH/L) breaks and liquidity sweeps

All alerts are tagged with [BP MSD] for identification when running multiple indicators.

Configuration

• Seven fully configurable timeframe slots with individual trend weights
• All dashboard sections and columns independently toggleable
• Dark Mode and Light Mode themes
• Nine dashboard position options
• Distance display in Percent, Price, or Pips (forex)
• Customizable colors for trend, sessions, killzones, and all visual overlays
• Adjustable EMA length, swing detection length, and volatility lookback

Usage Notes

• The dashboard automatically hides timeframe rows that are equal to or lower than the chart timeframe to avoid redundant data
• Replay mode is supported — session and killzone detection uses bar time when replay is detected
• HTF level lines auto-combine their labels when levels are close together to reduce chart clutter
• Order blocks and FVGs are mitigated and removed automatically as price interacts with them

4 days ago

Release Notes

Fixed a runtime error that could occur on charts with deep bar history, particularly low-timeframe crypto pairs. The historical buffer limit has been increased from 1000 to 5000 (Pine Script maximum) to prevent buffer overflow on high-volume charts. No changes to indicator logic, visuals, alerts, or functionality.
