Pressure Transfer Zone

Many reversal indicators tell you when a market looks stretched. Pressure Transfer Zone asks a harder question: when price returns to the extreme, can the side that drove it there still make meaningful progress?

This indicator was built to identify a specific form of failed continuation. It waits for a strong directional drive, a real retreat, and then a second attempt at the extreme. If that second attempt makes little progress and closes with clear rejection, the script freezes the structure into a decision zone. From there, price must prove that control has actually transferred before a signal is confirmed.

The goal is not to call every top or bottom. The goal is to isolate the moments when a mature move may be losing control, show that process directly on the chart, and give the trader clear confirmation and invalidation levels.

WHO IT IS FOR

Pressure Transfer Zone is designed for intraday, swing, and position traders who use price action and want a more disciplined way to evaluate exhaustion, failed breakouts, failed continuation, and early reversals.

It is designed for liquid stocks, futures, forex, and cryptocurrency on standard candlestick charts. The engine does not run on Heikin Ashi, Renko, or other synthetic chart types because their prices can distort the structure being measured.

THE IDEA BEHIND IT

A strong trend does not end simply because price is overbought, oversold, or extended. Strong moves can remain extended for a long time. What matters is whether the original side can still produce results when it gets another opportunity.

The pattern develops in five stages:

1. A mature directional drive establishes real displacement.
2. Price makes a meaningful retreat away from the extreme.
3. The original side returns for a second attempt.
4. That second attempt produces limited progress and a weaker close.
5. Price confirms the transfer with a qualified break of the selected boundary or, in Sniper mode, with that break followed by a successful first retest.

This is an effort-versus-result test expressed entirely through price. The script does not claim to measure order flow, bid/ask delta, institutional activity, hidden liquidity, or volume pressure.

HOW THE MATHEMATICS WORKS

The first filter is directional efficiency:

Directional efficiency = net directional change / total absolute bar-to-bar movement

A clean drive that travels mostly in one direction receives a higher score. A noisy move that covers a lot of distance but makes little net progress receives a lower score.

The selected Source is used for net displacement and path efficiency. The zone itself is always built from confirmed OHLC prices.

The drive must also meet volatility, range, closing-location, and local-extreme requirements. Under the default pace profiles, it must:

* Produce at least 1.25 ATR of net directional displacement.
* Span at least 2.00 to 2.50 ATR, depending on the selected pace.
* Meet a directional-efficiency threshold of 0.40 to 0.48.
* Close in the outer 28% of the drive range.
* Create a fresh local extreme.

ATR is measured with a 14-bar lookback and frozen when the sequence begins. This prevents later volatility changes from moving the event’s established thresholds.

The retreat must travel at least the greater of 0.55 ATR or 18% of the original drive range, and the closing price must confirm that full retreat distance.

When price returns to the extreme, the second attempt must show deterioration. By default:

* Price must return to within the greater of 0.30 ATR or 8% of the original drive range from the first extreme.
* New progress beyond the first extreme cannot exceed 0.20 ATR.
* The second push cannot exceed 72% of the original drive range.
* The close must migrate away from the first attempt by at least 0.10 ATR.
* Rejection must equal at least the greater of 0.25 ATR or 25% of the developing zone.
* The rejection bar must close within the directional outer 45% of its range.
* The completed zone cannot exceed 60% of the original drive range.

Together, these filters are intended to remove many one-candle reactions, shallow pauses, and weak two-test formations. The model wants to see a legitimate first drive, real separation between attempts, and measurable deterioration on the return.

THE ZONE

Once the second attempt qualifies, the structure is armed and its levels are frozen:

* Outer edge: the most extreme price reached by the two attempts.
* Inner edge: the counter-extreme formed between the two attempts.
* Midpoint: the halfway point of the zone.
* Invalidation: 0.15 ATR beyond the outer edge in the direction of the original move.

For a bullish setup, price must transfer upward after a mature downward drive. For a bearish setup, price must transfer downward after a mature upward drive.

Invalidation requires a confirmed close beyond the buffered outer edge. The invalidation level is structural information, not an automatic stop-loss recommendation.

ENTRY TIMING

Early

Confirms on a qualified close through the zone midpoint. This is the fastest mode and can trigger on the same confirmed bar that arms the zone. It offers earlier recognition with a greater risk of false starts.

Balanced

Confirms on a later qualified close beyond the structural inner edge. Balanced is the default middle ground between earlier recognition and additional structural confirmation.

Sniper

Requires a qualified break of the inner edge followed by the first later retest of that level. The retest must remain shallow and close back in the transfer direction. The first retest decides the setup; a failed first retest cannot become a signal later.

The breakout candle must move in the transfer direction, span at least 0.35 ATR, have a real body covering at least 45% of its range, close within the directional outer 32% of the candle, and finish no more than 0.45 ATR beyond the selected boundary. The final limit is an anti-chase filter.

A valid Sniper retest must stay within 15% of the frozen zone depth, close at least 0.05 ATR back beyond the inner edge, have a directional body covering at least 35% of the candle, and close within the directional outer 40% of its range.

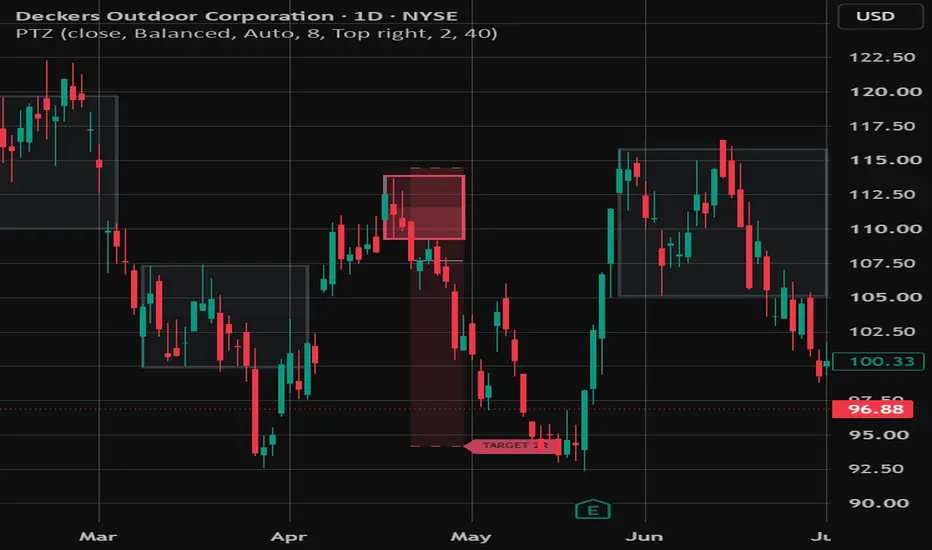

HOW TO READ THE CHART

With the default color palette:

* Amber: the pattern is still developing. It is information, not an entry signal.
* Violet: the structure is complete, armed, and waiting for confirmation.
* Cyan: the action area between the midpoint and inner edge.
* Green: a bullish pressure transfer has been confirmed.
* Red: a bearish pressure transfer has been confirmed.
* Faint gray: an armed setup failed, expired, or was invalidated.

The right-edge label shows the current phase and the next required action. Once the structure is armed, it also displays the confirmation boundary and invalidation price. A diamond appears only when the selected timing mode produces a confirmed trigger.

When Keep Recent Resolved Zones is enabled, the script retains a limited number of recent successful and failed zones. The default is eight, adjustable from one to twelve, so failures remain visible without overwhelming the chart.

PRACTICAL USE

1. Treat an amber zone as a developing idea, not permission to trade.
2. When the zone turns violet, note its direction, confirmation boundary, and invalidation price.
3. Wait for the exact requirement of Early, Balanced, or Sniper mode.
4. Use the broader trend, nearby support and resistance, liquidity, session conditions, and scheduled news as separate context.
5. Apply your own position sizing, stop placement, targets, and trade-management rules.

ADAPTIVE PACE

Auto mode adjusts the engine according to the chart timeframe:

* Fast: 15-minute charts and below.
* Swing: above 15 minutes through 4 hours.
* Position: above 4 hours.

Fast, Swing, and Position can also be selected manually. The selected pace changes the drive and local-extreme lookbacks, minimum drive size, efficiency threshold, formation lifetime, armed lifetime, and Sniper retest window. It does not change the meaning of the pattern.

ALERTS

The indicator includes five alerts:

* Long Zone Armed
* Short Zone Armed
* Long Pressure Transfer
* Short Pressure Transfer
* Pressure Transfer Invalidated

Create alerts using Once Per Bar Close.

Trigger alerts and chart diamonds use the same confirmed-bar event. If an Early setup resolves on the same bar it arms, the temporary armed alert is suppressed so users do not receive a stale or redundant notification.

CONFIRMED-BAR DESIGN

Actionable signals are confirmed only after the chart bar closes. They are not backdated and do not use future data, pivot backpainting, negative offsets, higher-timeframe requests, or lookahead logic.

Amber developing zones are intentionally provisional and can change or disappear because the pattern is not complete. Once a zone turns violet, its structural prices and invalidation level are frozen for that event.

LIMITATIONS

Pressure Transfer Zone identifies structural-exhaustion candidates, not guaranteed reversals. It tracks one active sequence at a time and can miss fast V-shaped turns that never form two separate attempts.

Strong trends can repeatedly invalidate countertrend setups. Thin markets, price gaps, news shocks, and irregular sessions can also reduce the usefulness of ATR-based thresholds.

This is an indicator, not a strategy. It does not place orders, calculate position size, set profit targets, or claim a win rate. Its job is narrower: determine whether the original directional side returned to the extreme, failed to produce enough additional progress, and then met the model’s confirmation rule at a clearly defined price.
