Updated Order Flow Criticality Hawkes Branching Ratio
Order-Flow Criticality — Hawkes Branching Ratio
What it is
Most order-flow tools ask how strong flow is. This one asks how fragile it is — how close the tape is to a self-sustaining cascade, where each burst of aggressive flow tends to trigger the next. That property is the branching ratio (n) of a self-exciting (Hawkes) process: n ≈ 0 means bursts are independent and the tape is stable (exogenous); n → 1 means flow is nearly self-sustaining — endogenous, reflexive, fragile. The output is a state read that says size down as criticality rises. It never issues a buy or sell.
How it works (and why this method)
Event — a bar whose absolute signed volume-delta is unusually large for its time of day. Delta is built from finest-available lower-timeframe signed volume, with an automatic bar-shape fallback.
Branching ratio — fitting a Hawkes kernel by maximum likelihood is heavy and fragile, so this uses the model-independent moment estimator of Hardiman & Bouchaud (2014): for a self-exciting process the variance-to-mean ratio of the event count (the Fano factor) grows as 1/(1−n)², so n ≈ 1 − √(mean_count / var_count) over recent non-overlapping counting bins. Only a mean and a variance of counts are needed. A random (Poisson) tape gives n ≈ 0; a clustered tape gives n → 1.
De-seasonalization (the key honesty step) — this estimator is known to be biased upward by intraday seasonality: opens and closes have naturally higher flow, which can masquerade as criticality (a Poisson process with a changing rate can show a spurious n ≈ 1). So an event is judged against the typical flow for its hour, removing the daily rhythm so what remains is genuine self-excitation.

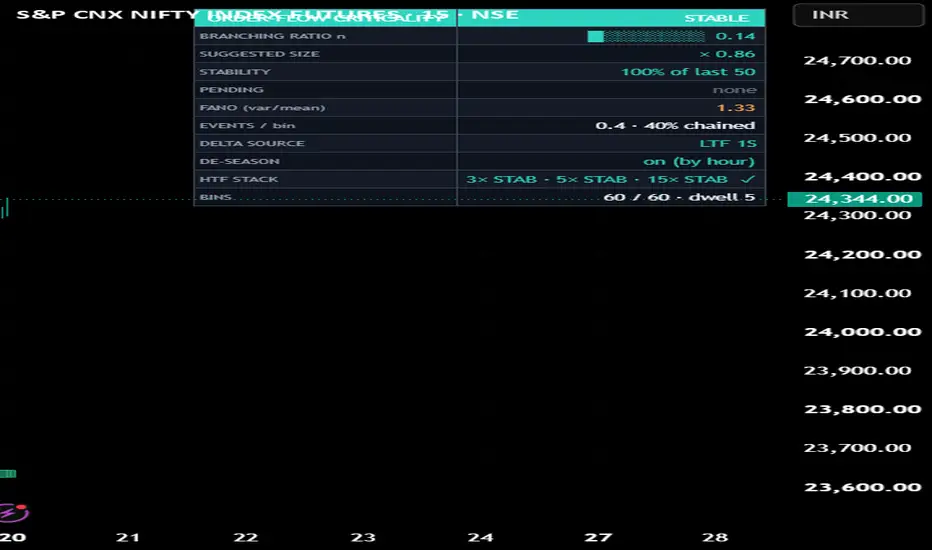

Output — a background tint that intensifies as n rises, ● event marks, a SIZE-DOWN tag on crossing the critical zone, and a dashboard stating STABLE / ELEVATED / CRITICAL with a suggested size factor (1 − n).
Everything advances only on confirmed bars; the lower-timeframe delta is read on closed bars. No hindsight.
The stability & multi-timeframe layer
States are dwell-filtered (standard anti-chattering): a new STABLE/ELEVATED/CRITICAL is announced only after surviving a set number of confirmed bars. STABILITY shows how settled the read is; PENDING shows a forming state with a countdown. Cost: a few bars of lag — stated and adjustable.
The criticality lane — a thin strip at the pane bottom — gives the glance-read: green = stable, amber = elevated, red = critical. Risk colors (safe/danger), never direction.
The HTF STACK row shows the raw criticality state on three higher timeframes derived as multiples of the chart (defaults 3×, 5×, 15×). Honesty notes: the HTF slots use the bar-shape delta proxy (lower-timeframe data cannot be nested inside a higher-timeframe request) and the global flow baseline instead of the hourly profile (an HTF bar spans multiple hours, so per-hour bucketing is ill-defined there). ✓ = every timeframe agrees; ⚠ = a higher timeframe is CRITICAL while the chart is not — fragility above your resolution.
Seeing the cascades
Every flow burst prints a dot below its own bar: blue = isolated (arrived independently), warm = chained (within a few bars of the previous burst — likely triggered by it). This is the branching ratio made visible: as the tape approaches critical you can watch chains lengthen at the price action itself.
The EVENTS row shows the recent % chained — the plain-language twin of n — and the branching-ratio row carries a fill gauge so the number reads like a fuel gauge.
How to use it
Add to any liquid symbol/timeframe; defaults suit index futures — change the volume source and lower-timeframe for other markets.
Read the dashboard headline: STABLE / ELEVATED / CRITICAL. As it rises toward CRITICAL, the branching ratio is telling you the tape is increasingly self-referential and prone to cascades.
Use it as a risk overlay on top of your directional tools: when criticality is high, cut size, widen stops, or stand aside — regardless of which way you lean. When it's low and stable, normal sizing is more justified.
Keep de-seasonalization on (default). Turning it off will make opens and closes look critical when they may just be busy.
What makes it original
Retail order-flow tools measure intensity and call it strength. This measures endogeneity — the degree to which flow is feeding on itself — using a published market-reflexivity statistic, computed by a moment estimator that is feasible on a chart, and de-seasonalized so it isn't fooled by the daily rhythm (the exact bias the literature warns about). Reframing order flow from "how strong" to "how fragile," as an explicit size-down gauge, is the contribution.
Concept credits
Self-exciting point processes — A. G. Hawkes (1971). Reflexivity / branching ratio as market endogeneity and flash-crash analysis — V. Filimonov & D. Sornette. Moment (mean/variance) branching-ratio estimator — S. Hardiman & J.-P. Bouchaud (2014). Hawkes models of order flow — E. Bacry, J.-F. Muzy and co-authors. Implementation and charting design are the author's own.
Important disclaimer
Research and education only. Not financial advice, not a signal service, not a guarantee of future results. The branching ratio is a descriptive statistic and a proxy — not a certainty and not a direction. High criticality does not predict which way price will move, only that flow is fragile. Validate independently and manage your own risk.
What it is
Most order-flow tools ask how strong flow is. This one asks how fragile it is — how close the tape is to a self-sustaining cascade, where each burst of aggressive flow tends to trigger the next. That property is the branching ratio (n) of a self-exciting (Hawkes) process: n ≈ 0 means bursts are independent and the tape is stable (exogenous); n → 1 means flow is nearly self-sustaining — endogenous, reflexive, fragile. The output is a state read that says size down as criticality rises. It never issues a buy or sell.
How it works (and why this method)
Event — a bar whose absolute signed volume-delta is unusually large for its time of day. Delta is built from finest-available lower-timeframe signed volume, with an automatic bar-shape fallback.
Branching ratio — fitting a Hawkes kernel by maximum likelihood is heavy and fragile, so this uses the model-independent moment estimator of Hardiman & Bouchaud (2014): for a self-exciting process the variance-to-mean ratio of the event count (the Fano factor) grows as 1/(1−n)², so n ≈ 1 − √(mean_count / var_count) over recent non-overlapping counting bins. Only a mean and a variance of counts are needed. A random (Poisson) tape gives n ≈ 0; a clustered tape gives n → 1.
De-seasonalization (the key honesty step) — this estimator is known to be biased upward by intraday seasonality: opens and closes have naturally higher flow, which can masquerade as criticality (a Poisson process with a changing rate can show a spurious n ≈ 1). So an event is judged against the typical flow for its hour, removing the daily rhythm so what remains is genuine self-excitation.
Output — a background tint that intensifies as n rises, ● event marks, a SIZE-DOWN tag on crossing the critical zone, and a dashboard stating STABLE / ELEVATED / CRITICAL with a suggested size factor (1 − n).
Everything advances only on confirmed bars; the lower-timeframe delta is read on closed bars. No hindsight.
The stability & multi-timeframe layer
States are dwell-filtered (standard anti-chattering): a new STABLE/ELEVATED/CRITICAL is announced only after surviving a set number of confirmed bars. STABILITY shows how settled the read is; PENDING shows a forming state with a countdown. Cost: a few bars of lag — stated and adjustable.
The criticality lane — a thin strip at the pane bottom — gives the glance-read: green = stable, amber = elevated, red = critical. Risk colors (safe/danger), never direction.
The HTF STACK row shows the raw criticality state on three higher timeframes derived as multiples of the chart (defaults 3×, 5×, 15×). Honesty notes: the HTF slots use the bar-shape delta proxy (lower-timeframe data cannot be nested inside a higher-timeframe request) and the global flow baseline instead of the hourly profile (an HTF bar spans multiple hours, so per-hour bucketing is ill-defined there). ✓ = every timeframe agrees; ⚠ = a higher timeframe is CRITICAL while the chart is not — fragility above your resolution.
Seeing the cascades
Every flow burst prints a dot below its own bar: blue = isolated (arrived independently), warm = chained (within a few bars of the previous burst — likely triggered by it). This is the branching ratio made visible: as the tape approaches critical you can watch chains lengthen at the price action itself.
The EVENTS row shows the recent % chained — the plain-language twin of n — and the branching-ratio row carries a fill gauge so the number reads like a fuel gauge.
How to use it
Add to any liquid symbol/timeframe; defaults suit index futures — change the volume source and lower-timeframe for other markets.
Read the dashboard headline: STABLE / ELEVATED / CRITICAL. As it rises toward CRITICAL, the branching ratio is telling you the tape is increasingly self-referential and prone to cascades.
Use it as a risk overlay on top of your directional tools: when criticality is high, cut size, widen stops, or stand aside — regardless of which way you lean. When it's low and stable, normal sizing is more justified.
Keep de-seasonalization on (default). Turning it off will make opens and closes look critical when they may just be busy.
What makes it original
Retail order-flow tools measure intensity and call it strength. This measures endogeneity — the degree to which flow is feeding on itself — using a published market-reflexivity statistic, computed by a moment estimator that is feasible on a chart, and de-seasonalized so it isn't fooled by the daily rhythm (the exact bias the literature warns about). Reframing order flow from "how strong" to "how fragile," as an explicit size-down gauge, is the contribution.
Concept credits
Self-exciting point processes — A. G. Hawkes (1971). Reflexivity / branching ratio as market endogeneity and flash-crash analysis — V. Filimonov & D. Sornette. Moment (mean/variance) branching-ratio estimator — S. Hardiman & J.-P. Bouchaud (2014). Hawkes models of order flow — E. Bacry, J.-F. Muzy and co-authors. Implementation and charting design are the author's own.
Important disclaimer
Research and education only. Not financial advice, not a signal service, not a guarantee of future results. The branching ratio is a descriptive statistic and a proxy — not a certainty and not a direction. High criticality does not predict which way price will move, only that flow is fragile. Validate independently and manage your own risk.
Release Notes
v1.1 — Finishing pass (no engine change)- Added a Data Window (EXP_) export bus so the branching ratio, Fano factor and higher-timeframe
fragility flags can feed other scripts via input.source().
- Added the MPL-2.0 licence header.
- No change to the Hawkes branching-ratio engine, the fragility state, the multi-timeframe reads or
the dashboard — everyday behaviour is identical.
Descriptive fragility-monitoring tool, not investment advice.
