Institutional Order Zones | ProjectSyndicate

Institutional Order Zones automatically identifies and power-ranks high-probability institutional zones by analyzing market compression events and explosive breakout candles. It filters for quality, calculates a SCORE for every zone based on its formation dynamics and historical interaction, and presents all data on the chart and in a comprehensive dashboard to eliminate clutter and focus on levels that matter.

• 🎯 Proprietary Three-Engine Architecture — the algorithm does not use generic pivots or standard support/resistance detection. Engine 1 (Order Compression) identifies statistically quiet consolidation periods using ATR percentile compression and linear regression slope neutrality. Engine 2 (Institutional Breakout) detects the institutional breakout candle — body and volume must both spike simultaneously above statistical thresholds. Engine 3 (Zone Scoring) assigns every zone a score from 0-100 based on Breakout Strength (40pts), Order Compression Duration (30pts), and Post-Breakout Momentum (30pts).

• 🎨 Score-Based Visuals — zones are color-coded into three tiers based on their 0-100 score. STANDARD (0-34): purple-magenta resistance / bright teal support. STRONG (35-64): dark red resistance / medium teal support. INSTITUTIONAL (65-100): deep pink resistance / dark teal support. Higher-tier zones automatically receive a thicker border and centerline for instant visual priority.

• 🧠 Advanced Zone Management — zones are dynamically updated on every bar. A price rejection adds +10 to the zone score and promotes its status to VALIDATED. A price breach subtracts -20 and marks the zone as VIOLATED. Violated zones can be hidden or shown via a toggle input.

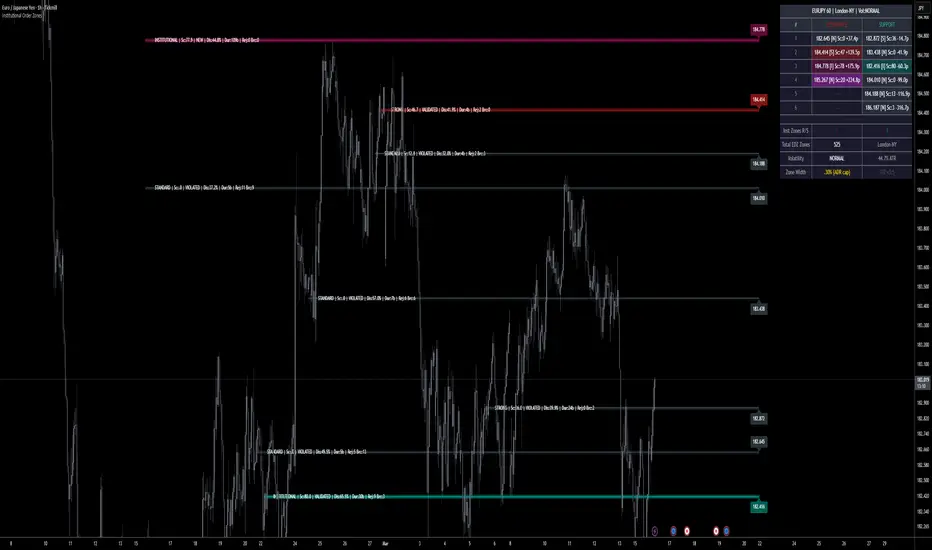

• 📈 Detailed On-Chart Markup — every zone is plotted with a label anchored inside the shaded area: TIER | Sc:xx.x | STATUS | Dis:xx.x% | Dur:nb | Rej:n Brc:n. This shows the zone tier, composite score, current status (NEW / VALIDATED / VIOLATED), the breakout dislocation strength as a percentage, the consolidation duration in bars, and the full rejection and breach history.

• 🧭 Comprehensive Dashboard Display — get a complete market overview without leaving your chart. The Zone Rankings panel shows the nearest Resistance and Support zones ranked by proximity, with price, tier flag, score, and pip distance per row. The Market Stats panel shows the current session, daily range vs 10-day ADR, volatility state (LOW / NORMAL / HIGH), and the total count of active Institutional-grade zones on each side.

• 🔔 Comprehensive Alerts — get an alert whenever price enters proximity of a Standard zone, a Strong zone, or an Institutional zone, with separate alert conditions for resistance and support so you can filter exactly what matters to your setup.

• ✅ Quality Control Filters — user-configurable inputs for ATR percentile threshold, slope neutrality tolerance, minimum compression duration, body multiplier, and volume multiplier allow for deep customization. Tighten the thresholds for fewer, higher-quality zones. Loosen them for broader coverage on lower timeframes.

• 🔧 Fully Customizable — control everything from the max number of zones shown, lookback period, zone width percentage, and extend-right bars to the text size of all labels, dashboard size, and individual zone colors.

• 🎯 Why this algo is unique: Standard supply/demand or FVG indicators rely on simple pattern recognition (gap between candles, pivot highs/lows). This algorithm quantifies the underlying market state that precedes institutional moves. It measures the quality of the compression that created the zone and the statistical significance of the breakout that validates it. Every zone has a score you can trust, not just a visual box.

• 🚀 Apply to Gold (XAUUSD), Forex, Crypto, and Indices on any timeframe. The ATR-based detection and zone width settings allow it to adapt to anything from M5 scalping to D1 swing trading.

• 🎯 How to use this? Use the dashboard to identify the strongest, closest zones. Focus on price action around INSTITUTIONAL-tier zones (Score >= 65) that align with your higher-timeframe bias. Use the alerts to know when price is approaching a key level so you are never caught off guard.

• ⚠️ IMPORTANT NOTICE: This indicator is designed to identify high-probability institutional order zones. It should NOT be used as a standalone signal for entering live trades. Always use it in conjunction with your own trading strategy, price action analysis, and other technical indicators to confirm trade setups and manage risk.
