Updated Fibonacci Structure Engine [WillyAlgoTrader]
📐 Fibonacci Structure Engine is an overlay indicator that combines automatic Fibonacci retracement from live market structure with Smart Money Concepts (BOS/CHoCH detection), weighted confluence scoring, premium/discount zone classification, and context-filtered engulfing pattern entries — creating a complete structure-to-Fibonacci-to-entry workflow where every component feeds into the next.
The core idea: Fibonacci levels are only meaningful when drawn from the correct swing points. This indicator automates the entire process: it detects swing highs/lows with ATR-filtered pivot detection, identifies structure breaks (BOS) and trend reversals (CHoCH), anchors Fibonacci retracement levels from the structure-defined swing, trails the live edge as price extends, locks it when a confirmed pivot arrives, scores the confluence between current price and Fibonacci levels, and generates entry signals when engulfing patterns occur at high-confluence zones in the correct structural context.
Most Fibonacci tools on TradingView require manual drawing — you select the swing high and low, and the levels appear. The problem: selecting the wrong swing, forgetting to update after a new structure break, or drawing from a minor swing that doesn't reflect the current trend leg. This indicator solves all three: the Fibonacci anchors update automatically on every structure break, trail the live edge as price extends, and lock when a confirmed pivot arrives — always reflecting the most relevant swing for the current market structure.
🧩 WHY THESE COMPONENTS WORK TOGETHER
Fibonacci retracement levels alone are static S/R lines. Structure detection alone tells you trend direction. Engulfing patterns alone fire everywhere. Confluence scoring alone has nothing to score against.
This indicator chains them into a dependency pipeline:
ATR-filtered swing detection → HH/HL/LH/LL classification → BOS/CHoCH structure breaks → Fibonacci anchor from structure swing → Live edge trailing + pivot locking → Fib level calculation → Confluence scoring (price vs Fib levels) → Premium/Discount zone classification → Engulfing pattern detection in structural context → Entry signal with cooldown
The swing detection feeds the structure engine — without confirmed pivots, no BOS/CHoCH can fire. The structure breaks anchor the Fibonacci levels — without a break, there's no swing to draw from. The Fibonacci levels feed the confluence scorer — without levels, there's nothing to score proximity against. The confluence score plus the premium/discount zone filter the engulfing patterns — without context, engulfing patterns produce too many false entries. And the signal cooldown prevents clustering from this entire chain.
Removing the structure detection breaks the Fibonacci anchoring. Removing the ATR filter floods the structure with noise swings. Removing the confluence scoring allows entries at non-Fibonacci prices. Removing the premium/discount filter allows bullish entries in premium (where sells should occur). Each component eliminates a specific failure mode.
🔍 WHAT MAKES IT ORIGINAL
1️⃣ Structure-anchored Fibonacci with live edge trailing.
The Fibonacci engine uses a 4-phase lifecycle:
Phase 1 — Anchor on structure break: When a BOS or CHoCH is detected:
— Bullish break: top = current high (live, will trail), bottom = most recent swing low (locked)
— Bearish break: bottom = current low (live, will trail), top = most recent swing high (locked)
This instantly draws Fibonacci levels from the break point.
Phase 2 — Trail live edge: As price extends beyond the initial break, the live edge (top for bull, bottom for bear) updates to the new extreme. Fibonacci levels recalculate continuously to reflect the current move. This captures the full extent of the breakout without waiting for a pivot confirmation.
Phase 3 — Lock on pivot: When a confirmed swing high (for bullish trailing) or swing low (for bearish trailing) is detected by the pivot engine, the live edge locks to that confirmed pivot. The Fibonacci levels stop updating and represent the confirmed swing range.
Phase 4 — Update on new swings: When a new confirmed swing arrives that differs from the current locked anchor, the Fibonacci levels update to the new structure — always reflecting the most recent confirmed swing.
This lifecycle means the Fibonacci levels are always relevant: immediately reactive after a break (phases 1–2), then structurally confirmed once a pivot is detected (phases 3–4).
2️⃣ ATR-filtered pivot detection with noise suppression.
Standard ta.pivothigh/ta.pivotlow detects every local extreme, including minor fluctuations that don't represent real swing points. The ATR filter requires:
— For a swing high: the distance from the pivot high to the most recent swing low ≥ ATR × multiplier (default 0.5)
— For a swing low: the distance from the most recent swing high to the pivot low ≥ ATR × multiplier
This ensures only swings of meaningful size (relative to current volatility) are used for structure detection and Fibonacci anchoring. The multiplier is configurable: lower (0.2–0.3) for more granular structure, higher (0.8–1.0) for only major swings.
3️⃣ BOS / CHoCH structure detection with bias tracking.
The indicator tracks a persistent structureBias variable (+1 bullish, −1 bearish, 0 neutral):
— BOS (Break of Structure): close breaks above the most recent swing high while bias is already bullish (or below swing low while already bearish) — trend continuation
— CHoCH (Change of Character): close breaks above swing high while bias was bearish, or below swing low while bias was bullish — trend reversal
Each break requires: barstate.isconfirmed + the swing level hasn't been broken before (tracked via lastBrokenHigh/lastBrokenLow). Structure lines are drawn from the swing point to the break bar with configurable style (solid/dashed/dotted) and width.
4️⃣ Weighted confluence scoring (0–100).
The indicator measures how close the current price is to each Fibonacci level (within ATR × tolerance) and assigns weights by Fib importance:
— 0.236 → weight 1.0 (minor level)
— 0.382 → weight 1.5 (shallow retracement)
— 0.500 → weight 2.0 (equilibrium)
— 0.618 → weight 2.5 (golden ratio — highest weight)
— 0.786 → weight 1.5 (deep retracement)
Swing highs/lows within tolerance add +1.0 each. Total weight × 10 = confluence score (capped at 100). Classification: Strong (≥ 60), Moderate (≥ 30), Weak (> 0), None (0).
The tolerance is ATR-based (default 0.3× ATR) — on a volatile instrument, the "near" zone expands proportionally. On a quiet instrument, it tightens. This prevents false confluence readings from both too-tight and too-loose proximity checks.
5️⃣ Premium / Discount zone classification.
Using the 0.500 Fibonacci level as the equilibrium:
— Premium: close > Fib 0.500 — price is above equilibrium (expensive relative to the swing)
— Discount: close ≤ Fib 0.500 — price is below equilibrium (cheap relative to the swing)
This classification is used as a context filter for engulfing patterns: bullish engulfing patterns are only marked when price is in discount or at a confluence zone. Bearish engulfing patterns are only marked in premium or at a confluence zone. This prevents the most common engulfing failure mode: bullish patterns at the top of a range and bearish patterns at the bottom.
6️⃣ Context-filtered engulfing pattern detection.
The engulfing pattern detection requires:
— Current candle body > EMA(body, 14) — above-average body size (not a doji)
— Previous candle body < EMA(body, 14) — smaller previous candle (setup for engulf)
— Current candle fully engulfs previous candle's body
— Context filter: in premium/discount zone OR confluence weight ≥ 1.5
Bearish engulfing (▼): marked when price is in premium or near a Fib level — a reversal pattern at resistance. Bullish engulfing (▲): marked when price is in discount or near a Fib level — a reversal pattern at support.
7️⃣ Dual-path entry signals with cooldown.
Two entry paths:
— Engulfing + Structure + Confluence: engulfing pattern in context + structure bias aligned + confluence weight ≥ 1.5
— CHoCH (trend reversal): any confirmed CHoCH — strong reversal signal, no additional confluence required
Both paths subject to signal cooldown (default 5 bars) to prevent clustering. Buy/Sell signals are displayed as labels (off by default — enable in Visual Settings).

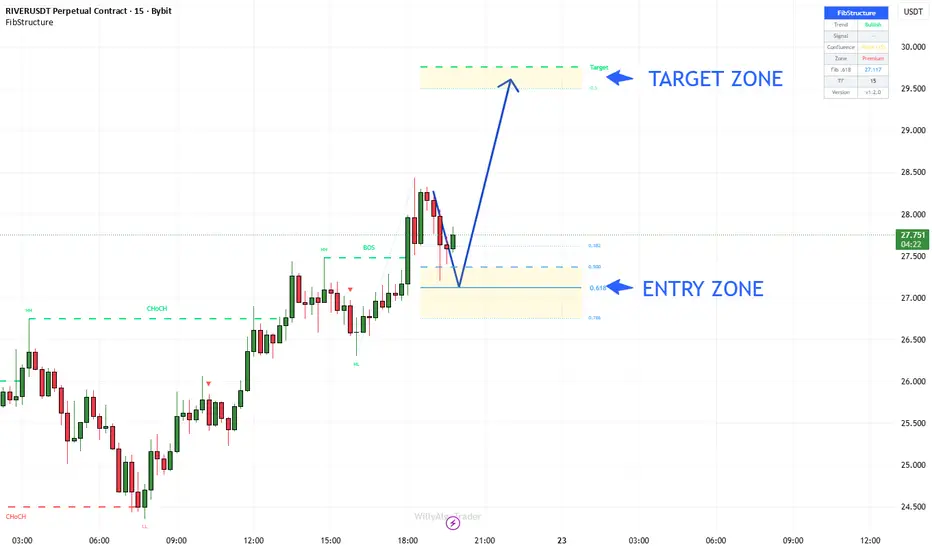

8️⃣ Golden Zone + Target Zone visualization.
Two highlighted zones drawn as semi-transparent boxes:
— Golden Zone (0.500 – 0.786): the highest-probability retracement area. Where most retests find support/resistance.
— Target Zone (−0.500 – −0.618): the Fibonacci extension target for the next leg. Where price typically reaches after a confirmed retracement entry.
Both zones extend rightward by the configurable extension (default 20 bars) and update with Fibonacci level changes.
9️⃣ Seven configurable Fibonacci levels.
Individually toggleable: 0.236, 0.382, 0.500, 0.618, 0.786, −0.500, and Target (−0.618). Each drawn with distinct line styles — 0.618 is the thickest and most opaque (golden ratio emphasis), 0.236 is the thinnest (minor level). A dotted reference line connects the swing low to swing high showing the measured move.
⚙️ HOW IT WORKS — CALCULATION FLOW
Step 1 — Pivot detection: ta.pivothigh/ta.pivotlow with configurable lookback. ATR filter removes minor swings (swing size must exceed ATR × multiplier).
Step 2 — Swing tracking: Most recent two swing highs and two swing lows stored with bar indices. Each new swing is compared to previous → HH/HL/LH/LL classification.
Step 3 — Structure detection: Close breaks above swing high → BOS (if bias already bullish) or CHoCH (if bias was bearish). Same logic inverted for bearish breaks. Structure bias updated.
Step 4 — Fibonacci anchoring: On break → live edge set at current extreme, locked edge at swing. Live edge trails with price. Locks when confirmed pivot arrives. Updates on new swings.
Step 5 — Level calculation: fibLevel = swingHigh − (swingHigh − swingLow) × ratio for each ratio. Extension targets use negative ratios.
Step 6 — Confluence scoring: For each Fib level, check if |close − level| ≤ ATR × tolerance. Add weighted score. Include swing level proximity. Cap at 100.
Step 7 — Entry logic: Path A: engulfing in context + bias + confluence ≥ 1.5. Path B: CHoCH. Both respect cooldown.
📖 HOW TO USE
🎯 Quick start:
1. Add the indicator — Fibonacci levels and structure labels appear automatically
2. HH/HL/LH/LL labels show market structure
3. BOS/CHoCH labels show structure breaks and reversals
4. Yellow-shaded Golden Zone (0.500–0.786) = highest-probability retracement area
5. ▲/▼ arrows = engulfing patterns in structural context
6. Enable Buy/Sell Signals in Visual Settings for entry labels
👁️ Reading the chart:
— 🟢 HH / HL labels = bullish structure (higher highs, higher lows)
— 🔴 LH / LL labels = bearish structure (lower highs, lower lows)
— 🟢 "BOS" line + label = bullish break of structure (continuation)
— 🔴 "BOS" line + label = bearish break of structure
— 🟢🔴 "CHoCH" = Change of Character (trend reversal)
— 🔵 Horizontal lines = Fibonacci levels (0.236–0.786)
— 🟡 Shaded box (upper) = Golden Zone (0.500–0.786)
— 🟡 Shaded box (lower) = Target Zone (−0.500 to −0.618)
— 🟢 ▲ = bullish engulfing in discount / Fib zone
— 🔴 ▼ = bearish engulfing in premium / Fib zone
— 🟢 "BUY" / 🔴 "SELL" = confirmed entry signals (when enabled)
🔧 Tuning guide:
— Too many structure labels: increase Swing Length (12–20) or increase ATR Multiplier (0.7–1.0)
— Missing swings: decrease Swing Length (5–8) or decrease ATR Multiplier (0.2–0.3)
— Confluence too strict: increase Confluence ATR Tolerance (0.4–0.5)
— Too many engulfing signals: they self-filter by premium/discount — increase ATR Filter to reduce swing count
— Signal clustering: increase Signal Cooldown (8–15 bars)
⚙️ KEY SETTINGS REFERENCE
⚙️ Main:
— Swing Detection Length (default 10): pivot lookback — higher = larger swings
— ATR Swing Filter (default On): minimum swing size as ATR multiple
— ATR Filter Multiplier (default 0.5): how large swings must be
— Signal Cooldown (default 5): bars between consecutive signals
📐 Fibonacci:
— Show Fibonacci Levels (default On)
— Fib Extension Bars (default 20): rightward line extension
— Individual level toggles: 0.236 (off), 0.382, 0.500, 0.618, 0.786, −0.5, Target −0.618
— Confluence ATR Tolerance (default 0.3): proximity threshold
🏗️ Structure:
— BOS / CHoCH (default On): show structure break lines and labels
— Swing Labels (default On): HH/HL/LH/LL on pivots
— Engulfing Signals (default On): context-filtered patterns
🎨 Visual:
— Buy/Sell Signals (default Off): enable for entry labels
— Structure line style (Solid/Dashed/Dotted) and width (1–4)
— Auto / Dark / Light theme
🔔 Alerts
— 🟢 BUY / 🔴 SELL — ticker, price, TF, confluence score, SL, TP
— 🔵 BOS — structure break with direction
— 🟡 CHoCH — trend reversal with direction
All support plain text and JSON webhook format. Bar-close confirmed.
⚠️ IMPORTANT NOTES
— 🚫 No repainting. All structure breaks and signals require barstate.isconfirmed. Pivot detection uses equal left/right lookback (swingLen/swingLen) — pivots are confirmed swingLen bars after the actual high/low. Fibonacci levels update on confirmed pivots and structure breaks only.
— 📐 The Fibonacci anchor system has two states per edge: live and locked. A live edge trails with price (capturing the full move after a break). A locked edge is confirmed by a pivot. You'll see the Fibonacci levels shift on bar close as the live edge updates — this is by design, not repainting. Once the pivot locks, levels stabilize.
— ⚖️ The 0.618 level carries the highest confluence weight (2.5) because it is the golden ratio — the most statistically significant Fibonacci retracement level. The 0.500 carries weight 2.0, while the extreme levels (0.236, 0.786) carry 1.0–1.5.
— 📊 Buy/Sell signals are off by default. The indicator is designed primarily as a structure + Fibonacci analysis tool. Enable signals in Visual Settings when you want automated entry detection.
— 🔄 CHoCH signals do not require confluence — they represent a structural trend reversal, which is inherently a high-conviction event. Engulfing-based entries require confluence weight ≥ 1.5 + correct structural bias.
— 📏 The Golden Zone (0.500–0.786) is the area where most successful retests occur. The Target Zone (−0.500 to −0.618) is the area where the next impulse leg typically reaches. Both are highlighted with semi-transparent boxes.
— 🛠️ This is a structure analysis and Fibonacci visualization tool, not an automated trading bot. It maps market structure, draws Fibonacci levels, scores confluence, and identifies high-probability entry zones — trade decisions remain yours.
— 🌐 Works on all markets and timeframes.
