RSI Liquidity Sweep Confluence Engine [PhenLabs]

📊 RSI Liquidity Sweep Confluence Engine [PhenLabs]

Version: PineScript™ v6

📌 Description
The RSI Liquidity Sweep Confluence Engine rebuilds the RSI as dynamic, price-projected support and resistance levels — then waits for liquidity to be swept exactly at those levels before firing a signal. It solves the two biggest problems retail traders face with RSI and liquidity tools: RSI divergence readings that never map to price, and liquidity sweep alerts that fire on every wick with no filter.

By requiring full confluence — an RSI-derived level, a genuine liquidity sweep, and volume confirmation all aligning on the same bar — the engine suppresses noise and only marks the reversals where smart-money delivery actually shifts. Signals do not repaint on closed bars.

This is a fusion indicator. It takes the week’s most popular concept (RSI rebuilt as S/R), PhenLabs’ core specialty (liquidity sweep mapping), and the highest-traction publishing format (confluence-scored, fire-only-on-full-alignment engines) and combines them into one clean, dashboard-backed tool.

🚀 Points of Innovation

• RSI pivots mapped directly onto price as live support/resistance levels, not oscillator readings
• Liquidity sweep detection gated to fire only when the sweep occurs at an RSI-derived level
• Triple-confluence gate: RSI S/R + liquidity sweep + volume confirmation must all align
• Adaptive ATR-based tolerance so the confluence zone scales with current volatility
• WMA-smoothed S/R lines with a single soft channel fill for a clean, uncluttered chart
• No repaint on closed bars — signals confirm on bar close

🔧 Core Components

• RSI Core Levels: Confirmed RSI pivots (left/right bars configurable) are recorded with their corresponding price high/low, building a rolling set of dynamic S/R zones projected onto the chart as smoothed lines
• Liquidity Sweep Detector: Tracks swing high/low liquidity pools over a lookback window and flags genuine sweeps (wick beyond pool, optional close-back inside for reversal confirmation)
• Confluence Gate: Measures the distance between the swept price and the nearest RSI S/R level using ATR-scaled tolerance, then confirms with a volume-vs-SMA check

🔥 Key Features

• Triple Confluence Gating: Signals fire only when RSI level, liquidity sweep, and volume all agree — drastically reducing false reversals
• RSI-as-Price S/R: Converts oscillator extremes into actionable price levels you can trade against directly
• ATR-Adaptive Tolerance: Confluence zone widens in high volatility, tightens in ranges — works across timeframes and instruments without re-tuning
• Close-Back Reversal Filter: Optional requirement that price closes back inside the swept pool, filtering stop-runs that continue
• Clean Visual Layer: Two smoothed S/R lines, one soft channel fill, subtle state-tinted background and color-coded bars — premium look without chart clutter
• Live State Dashboard: Compact on-chart table shows RSI, nearest S/R levels, volume confirm, ATR, and current state at a glance
• Dual-Direction Alerts: Separate bullish and bearish alertconditions for automated notification

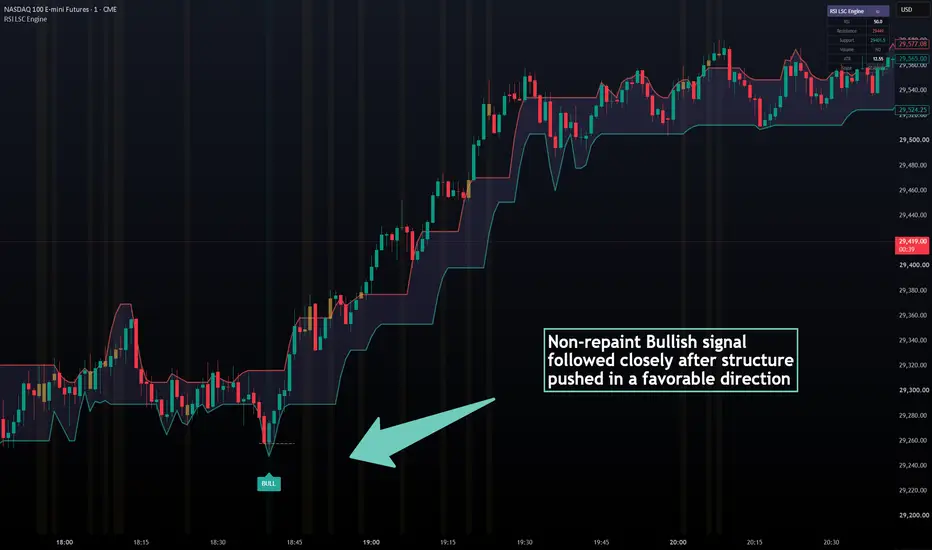

🎨 Visualization

• Smoothed S/R lines: A red resistance line above price and a green support line below, WMA-smoothed so transitions ease instead of snapping
• Soft channel fill: A single subtle purple band between support and resistance defining the active RSI value zone
• State background tint: Chart background subtly greens on bullish confluence, reds on bearish confluence, gold-tints when a sweep is armed
• Color-coded bars: Candle bodies shift green / red / gold based on the live confluence state
• Sweep marker + label: A single dashed box marks the exact swept liquidity pool, with a compact BULL / BEAR label at the signal bar
• Top-right dashboard: Compact state table with RSI, resistance, support, volume confirm, ATR, and Scanning / Armed / Confluence state

📖 Usage Guidelines

• RSI Length — Default: 14 — Range: 2-50 — Controls RSI period used to derive S/R levels; lower = more reactive levels, higher = more structural
• RSI Pivot Left / Right — Default: 5 / 5 — Range: 1-20 — Bars used to confirm RSI pivots; higher = fewer but more reliable levels
• Active RSI Levels Kept — Default: 4 — Range: 1-10 — Number of most-recent RSI S/R levels kept active on chart
• Level Smoothing (WMA) — Default: 3 — Range: 1-10 — WMA length applied to S/R lines for smoother transitions
• Sweep Lookback — Default: 20 — Range: 5-100 — Bars defining the swing high/low liquidity pools
• Require Close-Back — Default: true — Toggles whether price must close back inside the swept pool to validate a sweep
• RSI Level Tolerance (ATR x) — Default: 0.30 — Range: 0.0-2.0 — Distance (in ATR multiples) within which a sweep counts as touching an RSI level; 0.0 disables RSI confluence
• Volume Multiplier — Default: 1.20 — Range: 0.0-5.0 — Volume must exceed this multiple of its SMA to confirm; 0.0 disables volume confluence
• ATR Length — Default: 14 — Range: 1-100 — ATR period used to scale the confluence tolerance

✅ Best Use Cases

• Intraday and swing reversal trading on indices, FX majors, and high-liquidity crypto
• Smart-money / ICT traders who want a filtered sweep signal instead of raw sweep noise
• Traders who already use RSI but want it mapped to price as tradable S/R
• Multi-timeframe confluence stacking — run on higher TF for bias, lower TF for entries

⚠️ Limitations

• Like all pivot-based tools, signals are confirmed pivotRight bars after the pivot forms; expect a small structural lag on the S/R levels themselves
• Confluence gating reduces signal frequency by design — fewer but higher-quality signals, not a continuous signal generator
• Volume conformance requires sufficient volume data; on symbols with no volume feed, set Volume Multiplier to 0.0
• Best on instruments with genuine liquidity pools and clean swings; choppy low-range sessions produce fewer qualified setups

💡 What Makes This Unique

• RSI-as-S/R fused with liquidity sweeps: No top community script currently combines RSI-derived price levels with sweep detection — this fills that white space
• Fire-only-on-full-confluence design: Uses the highest-viral-ratio publishing format (confluence-scored engines) applied to PhenLabs’ core liquidity specialty

🔬 How It Works

1. RSI S/R construction: The engine computes RSI, detects confirmed pivots via left/right lookbacks, and records the price high (resistance) or low (support) at each RSI pivot bar. The most recent levels are kept in a rolling buffer, WMA-smoothed, and projected as clean lines on the chart with a soft channel fill between them.
2. Liquidity pool tracking: Swing highs and lows over the configured lookback define resting liquidity pools. A sweep is registered when price wicks beyond a pool — and optionally closes back inside it, confirming a reversal rather than a continuation stop-run.
3. Triple confluence gating: The engine checks that the sweep occurred within an ATR-scaled tolerance of the nearest RSI S/R level, and that volume exceeded its moving average by the configured multiple. Only when all three gates align does a bullish or bearish signal marker fire, with a dashed box marking the exact swept pool and a BULL / BEAR label at the signal bar.

💡 Note:
Best results come from pairing the engine with your own market-structure read and using it as a high-probability entry filter rather than a standalone signal. Tune RSI Length and Tolerance to your timeframe — shorter for scalping, longer for swing. This tool is an analytical aid to support your own judgment and is not financial advice.
