Structural Leg Profiler [LuxAlgo]

The Structural Leg Profiler indicator is a comprehensive structural analysis tool that dynamically maps lower-timeframe volume distributions onto major market swings to reveal where the most significant trading activity occurs within a trend.

🔶 USAGE

The tool is designed to bridge the gap between traditional price action swings and order flow analysis. By using an ATR-based swing detection mechanism, the indicator automatically identifies structural "legs" (upward or downward price movements) and generates a detailed volume distribution profile for each one.

Users can leverage this tool to identify high-interest zones (Point of Control) and determine whether a move is supported by aggressive buying or selling volume through the Delta coloring mode.

🔹 Interpreting the Profiles

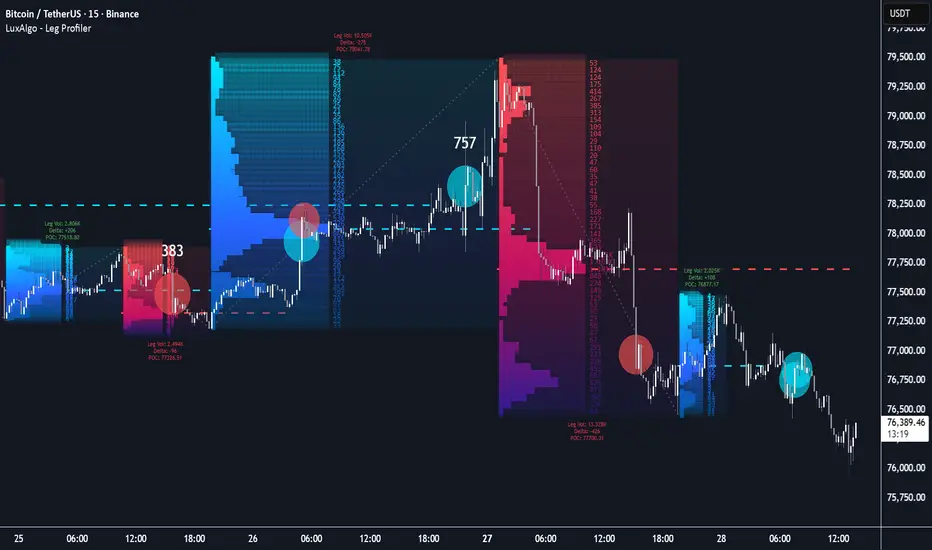

Each structural leg displays a volume profile across its duration, constructed from lower-timeframe data to ensure precision.

• Volume Gradient Mode: Highlights nodes based on total activity. The colors transition from low-volume areas to high-volume nodes, with the Point of Control (POC) being the most prominent.
• Delta Mode: Colors the profile blocks based on the net difference between buying and selling volume. Bright green indicates heavy aggressive buying, while bright red indicates heavy aggressive selling.
• Summary Labels: Each leg includes a summary label showing the Total Leg Volume, the Net Delta, and the exact POC price.

🔹 Volume Anomalies
The script automatically detects and highlights candles with unusual volume spikes using dynamic "bubbles." This helps in identifying potential exhaustion points or strong breakout momentum.

• Standard Bubbles: Indicate volume that is significantly above the 20-period average.
• Large Bubbles with Values: Indicate extreme volume spikes, with the exact volume printed inside the bubble for immediate context.

🔶 DETAILS

🔹 Untested POC Extensions
A core feature of this script is the "Naked POC" logic. When a structural leg is completed, its Point of Control is projected forward as a dashed line. These levels often act as high-probability support or resistance zones. The line continues to extend until price eventually "tests" or crosses it, at which point it automatically terminates to keep the chart clean.

🔹 Lower Timeframe Precision
Unlike standard profiles that use only chart-resolution data, this script utilizes

request.security_lower_tf

to pull granular data. This provides a much more accurate view of how volume was distributed within each leg compared to simple OHLC-based approximations.

🔶 SETTINGS

🔹 Swing Detection

• ATR Period: The lookback period used to calculate volatility for swing detection.
• Swing Multiplier (ATR): Controls the sensitivity of the legs. Higher values capture major trends; lower values capture micro-swings.

🔹 Profile Settings

• Max Profile Boxes: Defines the vertical resolution and maximum number of rows in the profiles.
• Profile Alignment: Determines where the volume bars are anchored (Left, Right, or Center) within the leg area.
• Show Volume Value: Toggles the visibility of numeric volume values inside the profile boxes.
• Extend Untested POCs: Enables the forward projection of POC lines until they are mitigated by price.

🔹 Volume Anomalies

• Show Volume Bubbles: Toggles the volume anomaly visualization.
• Spike Threshold: The multiplier relative to the 20-period average volume that triggers an anomaly bubble.

🔹 Style & Colors

• Box Color Mode: Choose between "Volume Gradient" (Total Volume focus) or "Delta" (Buy vs. Sell focus).
• Up/Down Leg Colors: Customizable color gradients for both bullish and bearish structural legs.
