Debugging

Introduction

TradingView’s close integration between the Pine Editor and the chart interface facilitates efficient, interactive debugging of Pine Script™ code, as scripts can produce dynamic results in multiple locations, on and off the chart. Programmers can utilize such results to refine their script’s behaviors and ensure everything works as expected.

When a programmer understands the appropriate techniques for inspecting the variety of behaviors one may encounter while writing a script, they can quickly and thoroughly identify and resolve potential problems in their code, which allows for a more seamless overall coding experience. This page demonstrates some of the handiest ways to debug code when working with Pine Script™.

The lay of the land

Pine scripts can output their results in multiple different ways, any of which programmers can utilize for debugging.

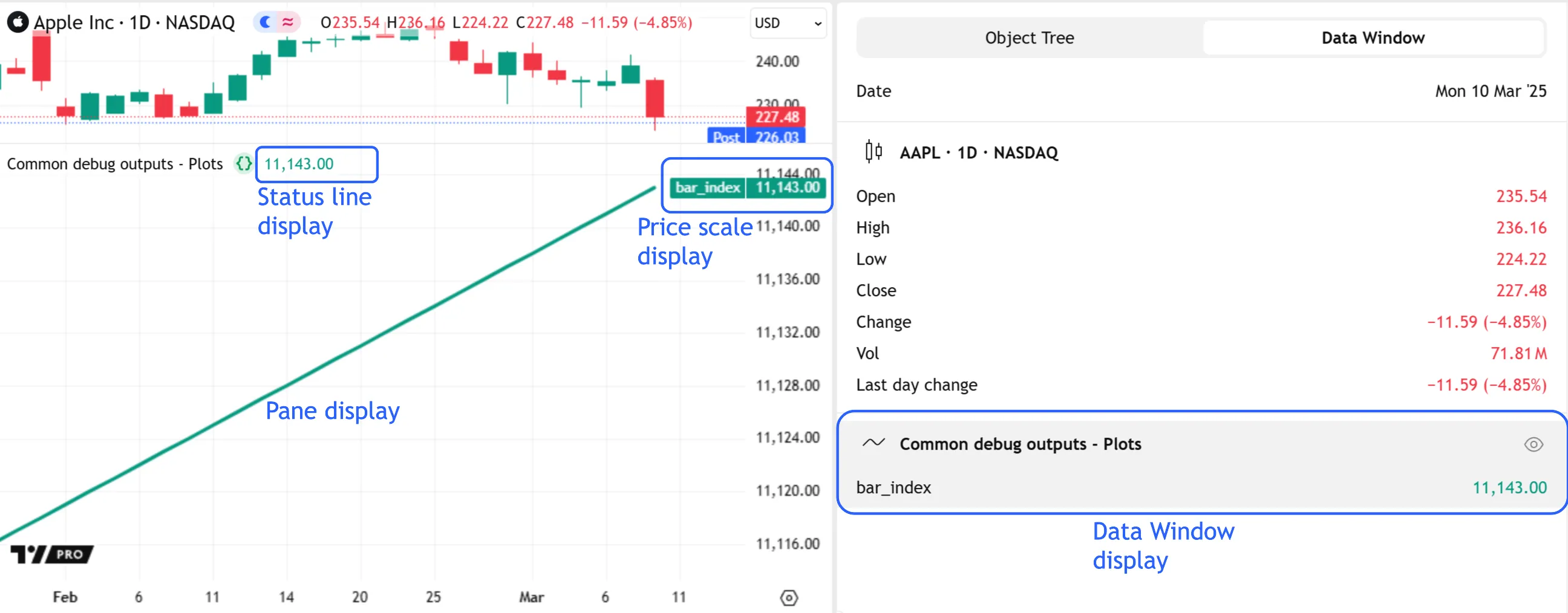

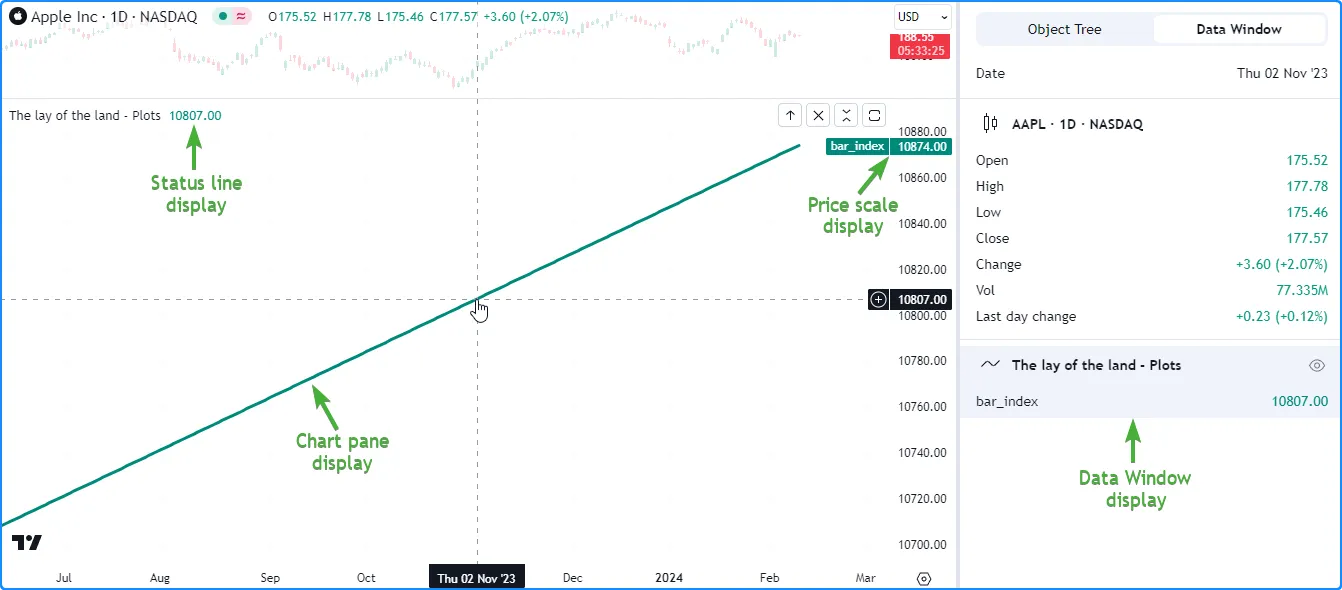

The plot*() functions can display results in a chart pane, the script’s status line, the price (y-axis) scale, and the Data Window, providing simple, convenient ways to debug numeric and conditional values:


//@version=5 indicator("The lay of the land - Plots") // Plot the `bar_index` in all available locations. plot(bar_index, "bar_index", color.teal, 3)

Note that:

  • A script’s status line outputs will only show when enabling the “Values” checkbox within the “Indicators” section of the chart’s “Status line” settings.
  • Price scales will only show plot values or names when enabling the options from the “Indicators and financials” dropdown in the chart’s “Scales and lines” settings.

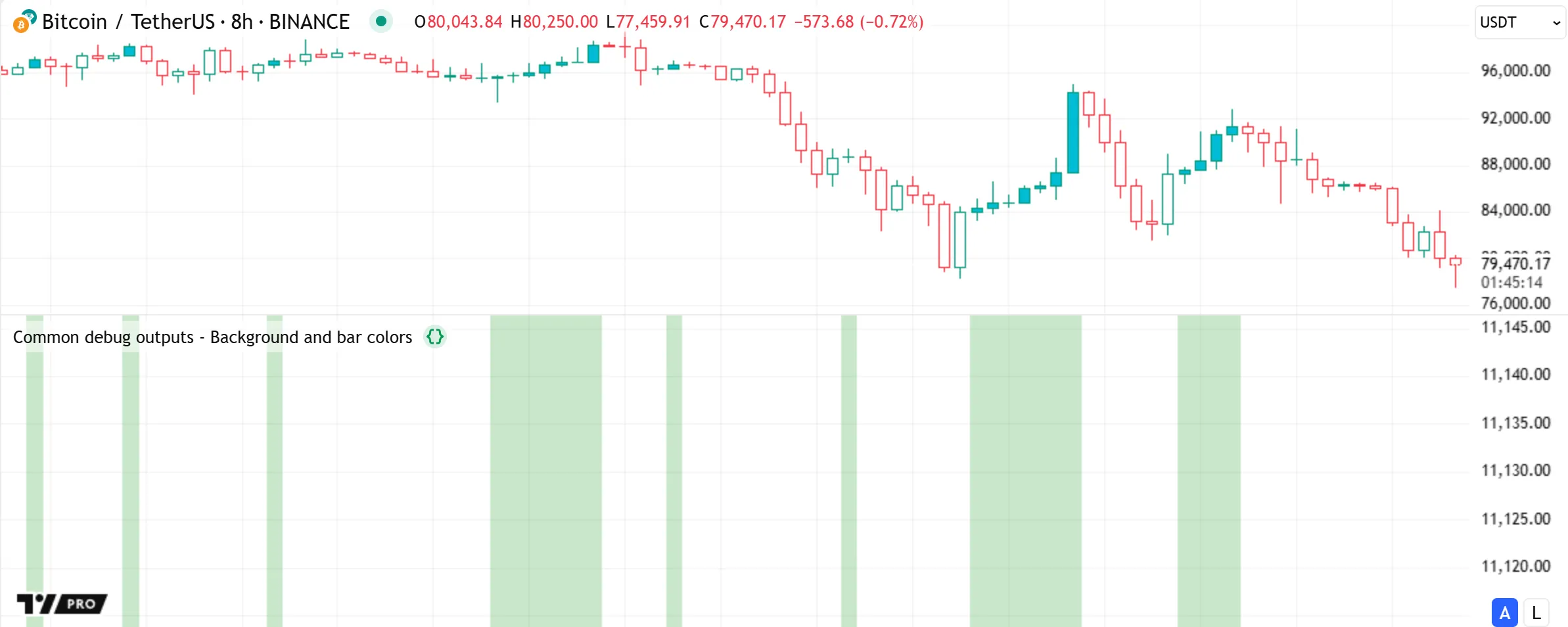

The bgcolor() function displays colors in the script pane’s background, and the barcolor() function changes the colors of the main chart’s bars or candles. Both of these functions provide a simple way to visualize conditions:


//@version=5 indicator("The lay of the land - Background and bar colors") //@variable Is `true` if the `close` is rising over 2 bars. bool risingPrice = ta.rising(close, 2) // Highlight the chart background and color the main chart bars based on `risingPrice`. bgcolor(risingPrice ? color.new(color.green, 70) : na, title= "`risingPrice` highlight") barcolor(risingPrice ? color.aqua : chart.bg_color, title = "`risingPrice` bar color")

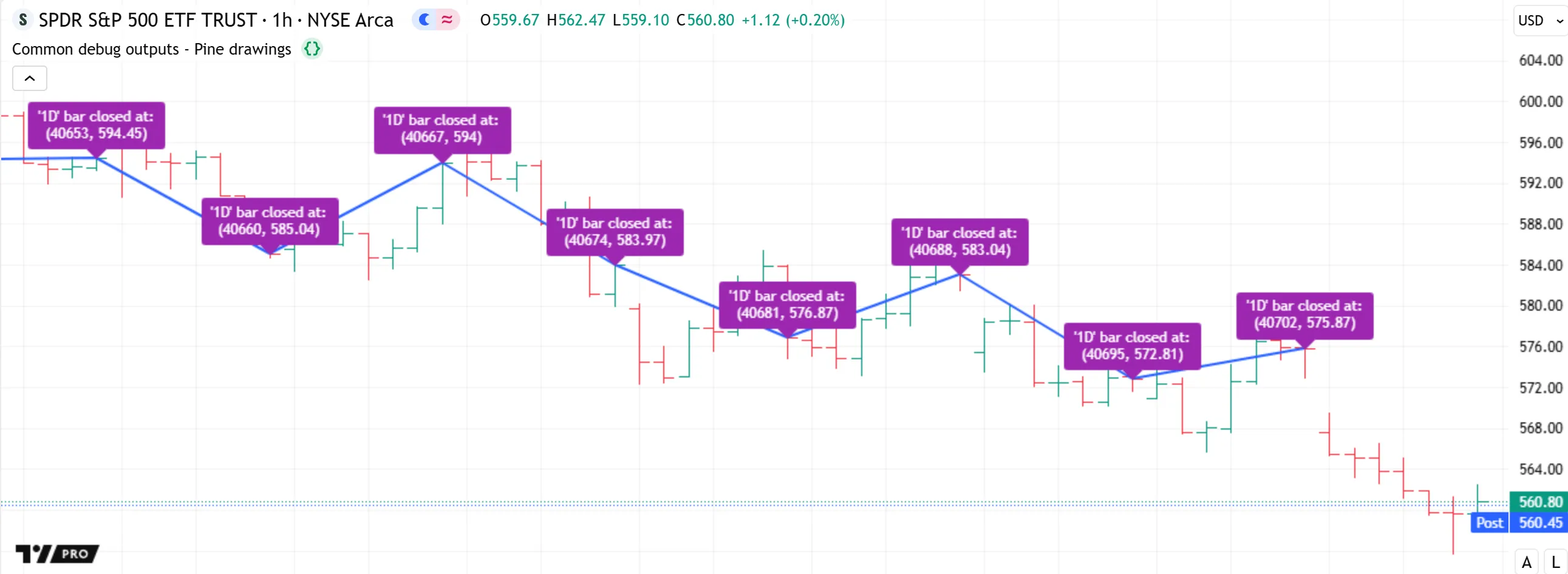

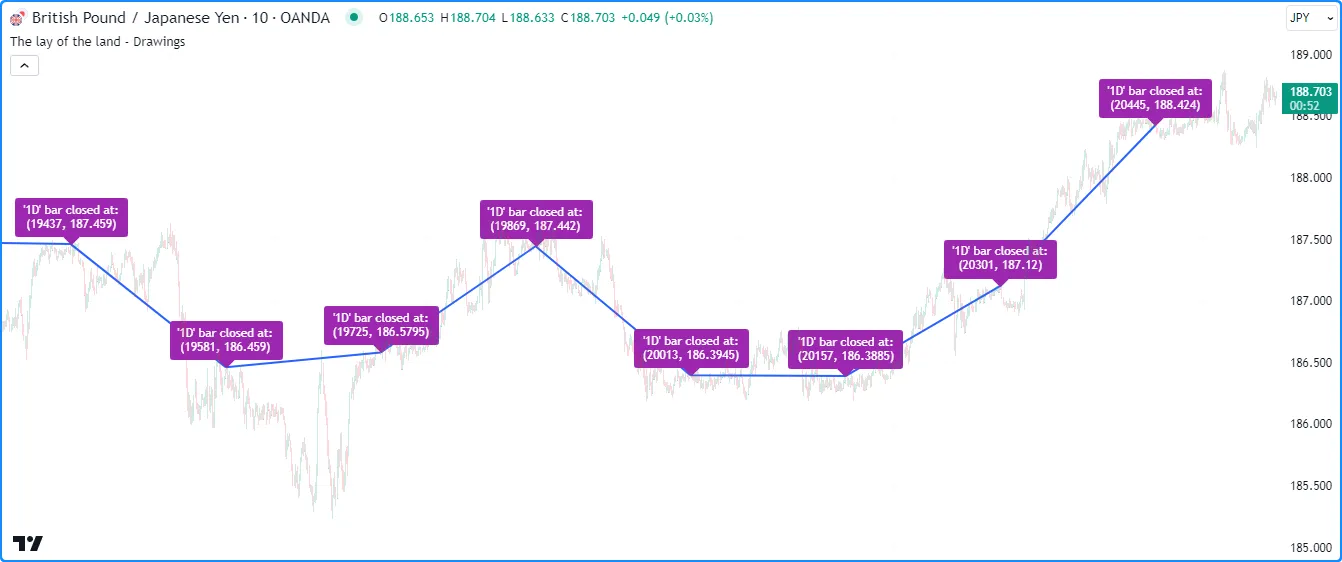

Pine’s drawing types (line, box, polyline, label) produce drawings in the script’s pane. While they don’t return results in other locations, such as the status line or Data Window, they provide alternative, flexible solutions for inspecting numeric values, conditions, and strings directly on the chart:


//@version=5 indicator("The lay of the land - Drawings", overlay = true) //@variable Is `true` when the time changes on the "1D" timeframe. bool newDailyBar = timeframe.change("1D") //@variable The previous bar's `bar_index` from when `newDailyBar` last occurred. int closedIndex = ta.valuewhen(newDailyBar, bar_index - 1, 0) //@variable The previous bar's `close` from when `newDailyBar` last occurred. float closedPrice = ta.valuewhen(newDailyBar, close[1], 0) if newDailyBar //@variable Draws a line from the previous `closedIndex` and `closedPrice` to the current values. line debugLine = line.new(closedIndex[1], closedPrice[1], closedIndex, closedPrice, width = 2) //@variable Variable info to display in a label. string debugText = "'1D' bar closed at: \n(" + str.tostring(closedIndex) + ", " + str.tostring(closedPrice) + ")" //@variable Draws a label at the current `closedIndex` and `closedPrice`. label.new(closedIndex, closedPrice, debugText, color = color.purple, textcolor = color.white)

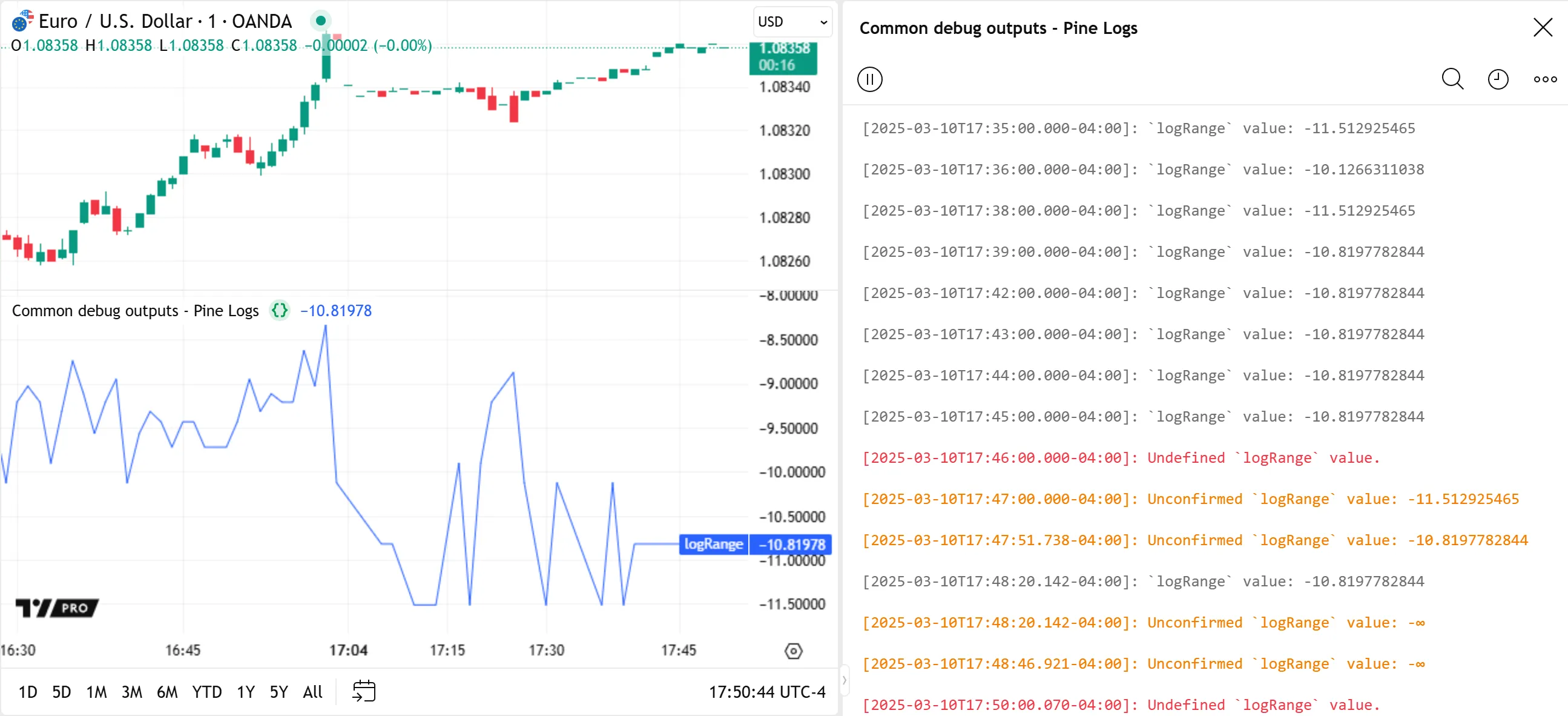

The log.*() functions produce Pine Logs results. Every time a script calls any of these functions, the script logs a message in the Pine Logs pane, along with a timestamp and navigation options to identify the specific times, chart bars, and lines of code that triggered a log:


//@version=5 indicator("The lay of the land - Pine Logs") //@variable The natural logarithm of the current `high - low` range. float logRange = math.log(high - low) // Plot the `logRange`. plot(logRange, "logRange") if barstate.isconfirmed // Generate an "error" or "info" message on the confirmed bar, depending on whether `logRange` is defined. switch na(logRange) => log.error("Undefined `logRange` value.") => log.info("`logRange` value: " + str.tostring(logRange)) else // Generate a "warning" message for unconfirmed values. log.warning("Unconfirmed `logRange` value: " + str.tostring(logRange))

One can apply any of the above, or a combination, to establish debugging routines to fit their needs and preferences, depending on the data types and structures they’re working with. See the sections below for detailed explanations of various debugging techniques.

Numeric values

When creating code in Pine Script™, working with numbers is inevitable. Therefore, to ensure a script works as intended, it’s crucial to understand how to inspect the numeric (int and float) values it receives and calculates.

Plotting numbers

One of the most straightforward ways to inspect a script’s numeric values is to use plot*() functions, which can display results graphically on the chart and show formatted numbers in the script’s status line, the price scale, and the Data Window. The locations where a plot*() function displays its results depend on the display parameter. By default, its value is display.all.

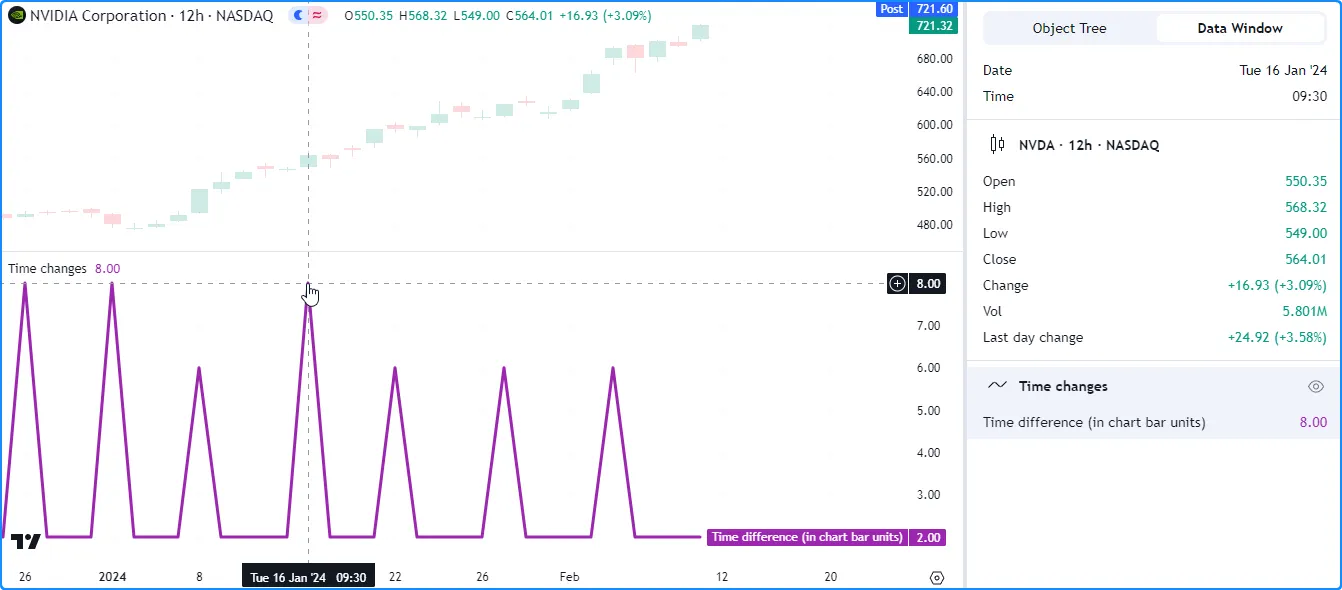

The following example uses the plot() function to display the 1-bar change in the value of the built-in time variable measured in chart timeframes (e.g., a plotted value of 1 on the “1D” chart means there is a one-day difference between the opening times of the current and previous bars). Inspecting this series can help to identify time gaps in a chart’s data, which is helpful information when designing time-based indicators.

Since we have not specified a display argument, the function uses display.all, meaning it will show data in all possible locations, as we see below:


//@version=5 indicator("Plotting numbers demo", "Time changes") //@variable The one-bar change in the chart symbol's `time` value, measured in units of the chart timeframe. float timeChange = ta.change(time) / (1000.0 * timeframe.in_seconds()) // Display the `timeChange` in all possible locations. plot(timeChange, "Time difference (in chart bar units)", color.purple, 3)

Note that:

  • The numbers displayed in the script’s status line and the Data Window reflect the plotted values at the location of the chart’s cursor. These areas will show the latest bar’s value when the mouse pointer isn’t on the chart.
  • The number in the price scale reflects the latest available value on the visible chart.

Without affecting the scale

When debugging multiple numeric values in a script, programmers may wish to inspect them without interfering with the price scales or cluttering the visual outputs in the chart’s pane, as distorted scales and overlapping plots may make it harder to evaluate the results.

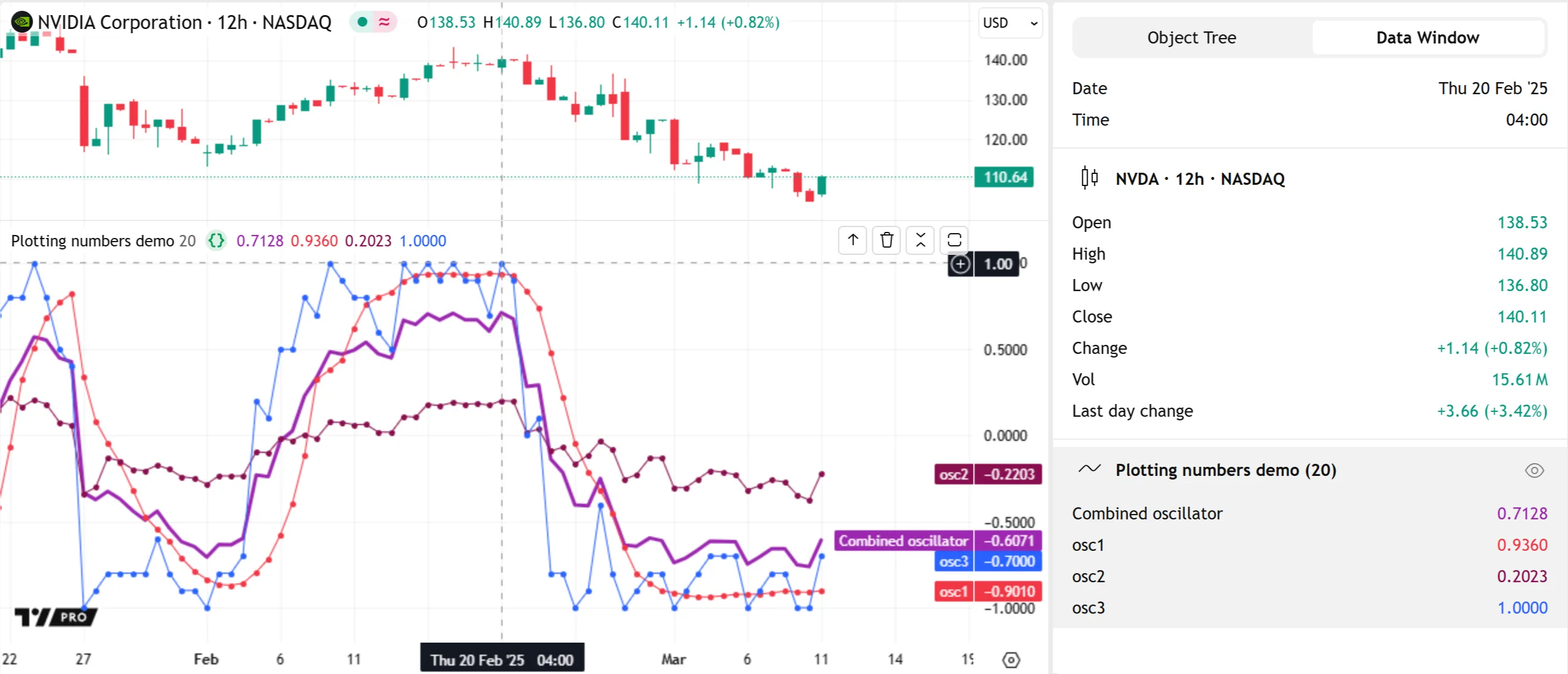

A simple way to inspect numbers without adding more visuals to the chart’s pane is to change the display values in the script’s plot*() calls to other display.* variables or expressions using them.

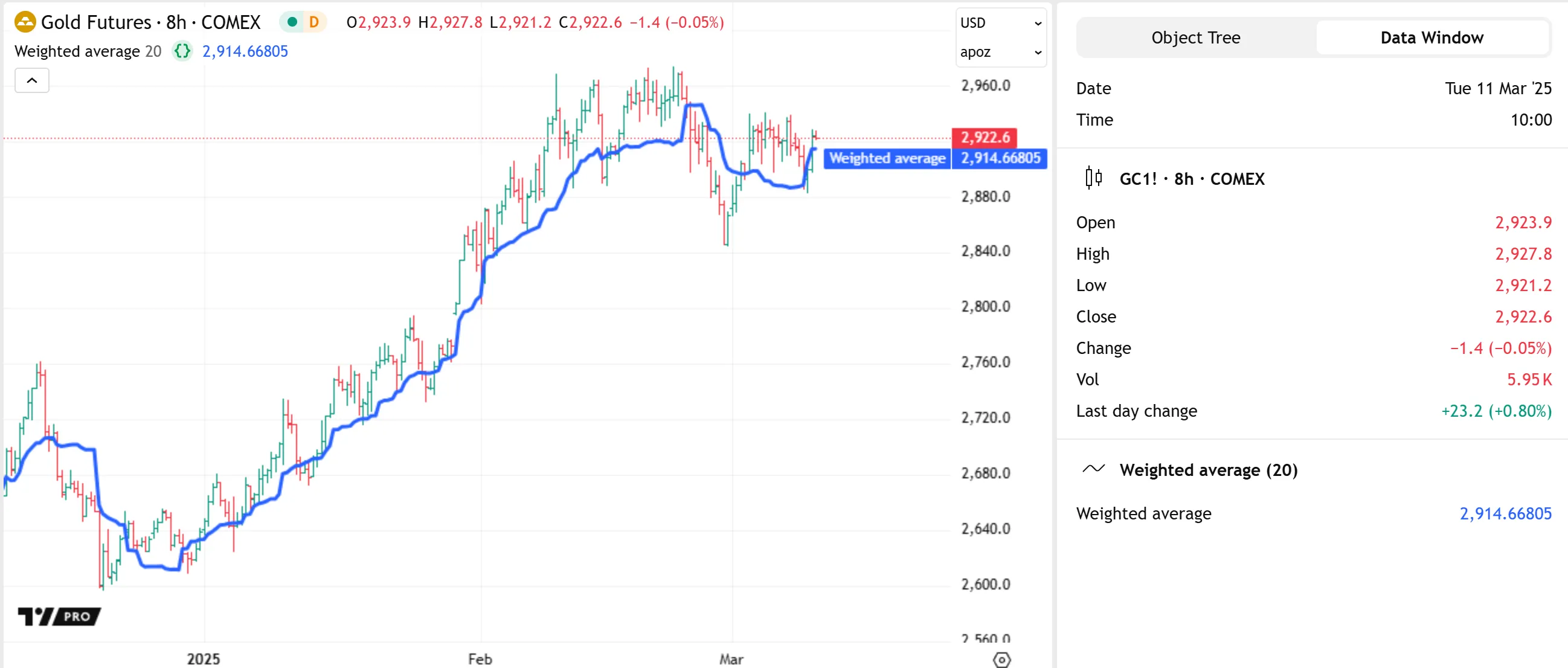

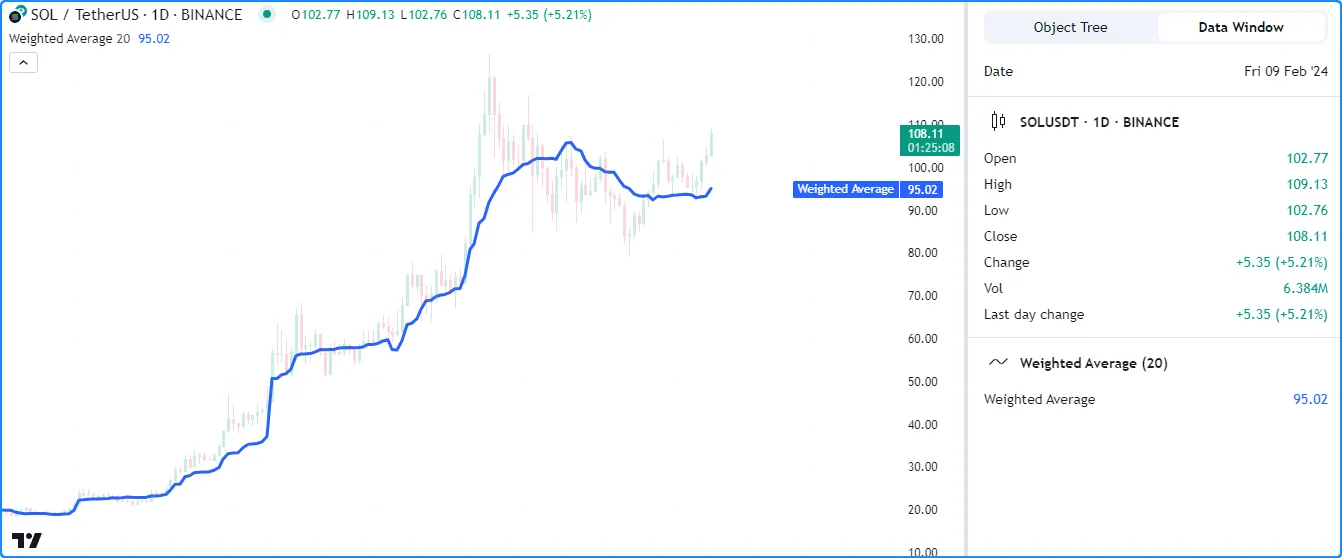

Let’s look at a practical example. Here, we’ve drafted the following script that calculates a custom-weighted moving average by dividing the sum of weight * close values by the sum of the weight series:


//@version=5 indicator("Plotting without affecting the scale demo", "Weighted Average", true) //@variable The number of bars in the average. int lengthInput = input.int(20, "Length", 1) //@variable The weight applied to the price on each bar. float weight = math.pow(close - open, 2) //@variable The numerator of the average. float numerator = math.sum(weight * close, lengthInput) //@variable The denominator of the average. float denominator = math.sum(weight, lengthInput) //@variable The `lengthInput`-bar weighted average. float average = numerator / denominator // Plot the `average`. plot(average, "Weighted Average", linewidth = 3)

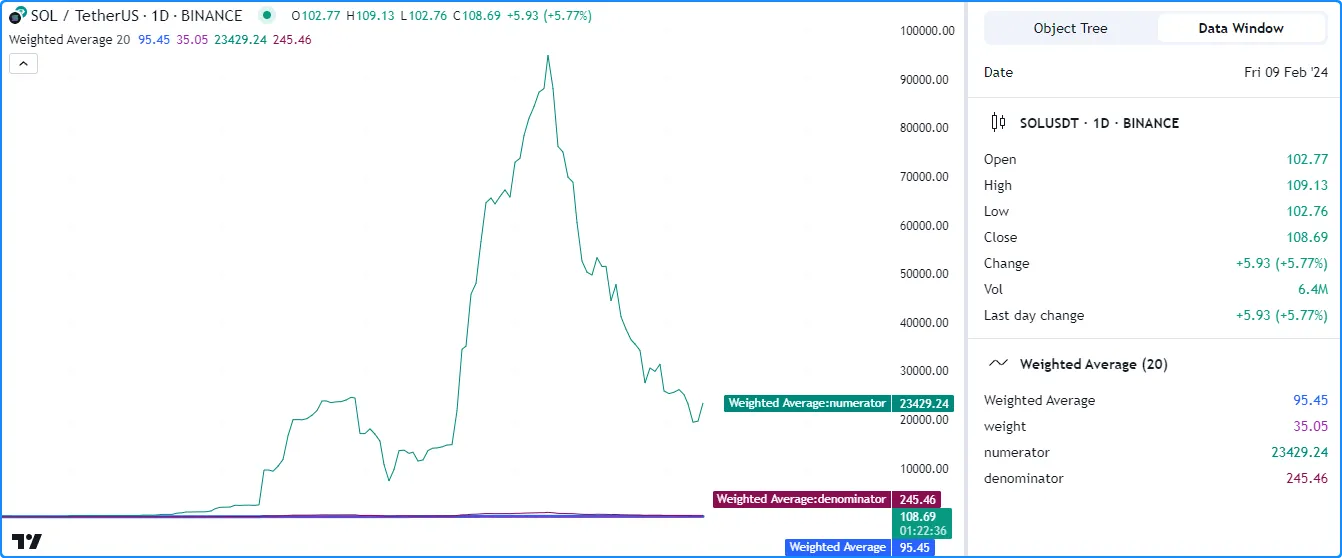

Suppose we’d like to inspect the variables used in the average calculation to understand and fine-tune the result. If we were to use plot() to display the script’s weight, numerator, and denominator in all locations, we can no longer easily identify our average line on the chart since each variable has a radically different scale:


//@version=5 indicator("Plotting without affecting the scale demo", "Weighted Average", true) //@variable The number of bars in the average. int lengthInput = input.int(20, "Length", 1) //@variable The weight applied to the price on each bar. float weight = math.pow(close - open, 2) //@variable The numerator of the average. float numerator = math.sum(close * weight, lengthInput) //@variable The denominator of the average. float denominator = math.sum(weight, lengthInput) //@variable The `lengthInput`-bar weighted average. float average = numerator / denominator // Plot the `average`. plot(average, "Weighted Average", linewidth = 3) // Create debug plots for the `weight`, `numerator`, and `denominator`. plot(weight, "weight", color.purple) plot(numerator, "numerator", color.teal) plot(denominator, "denominator", color.maroon)

While we could hide individual plots from the “Style” tab of the script’s settings, doing so also prevents us from inspecting the results in any other location. To simultaneously view the variables’ values and preserve the scale of our chart, we can change the display values in our debug plots.

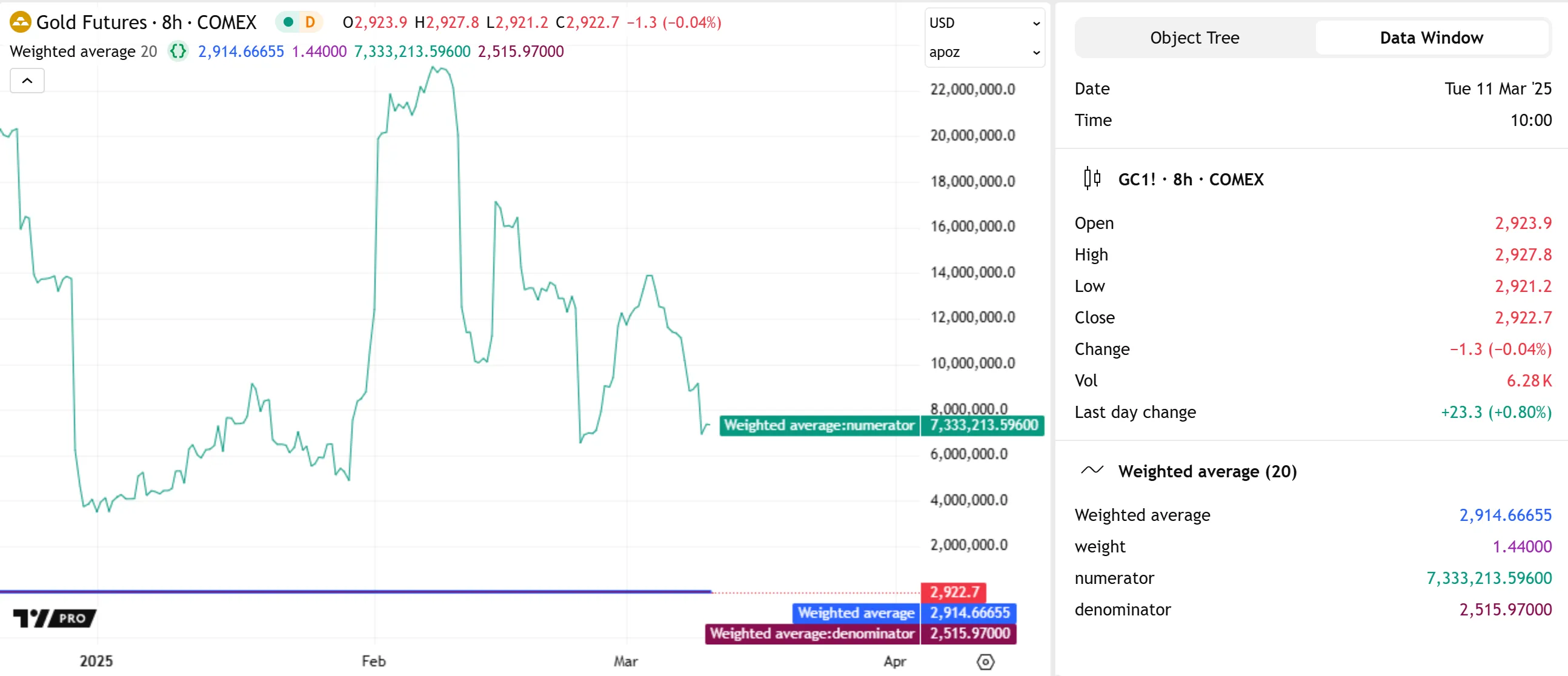

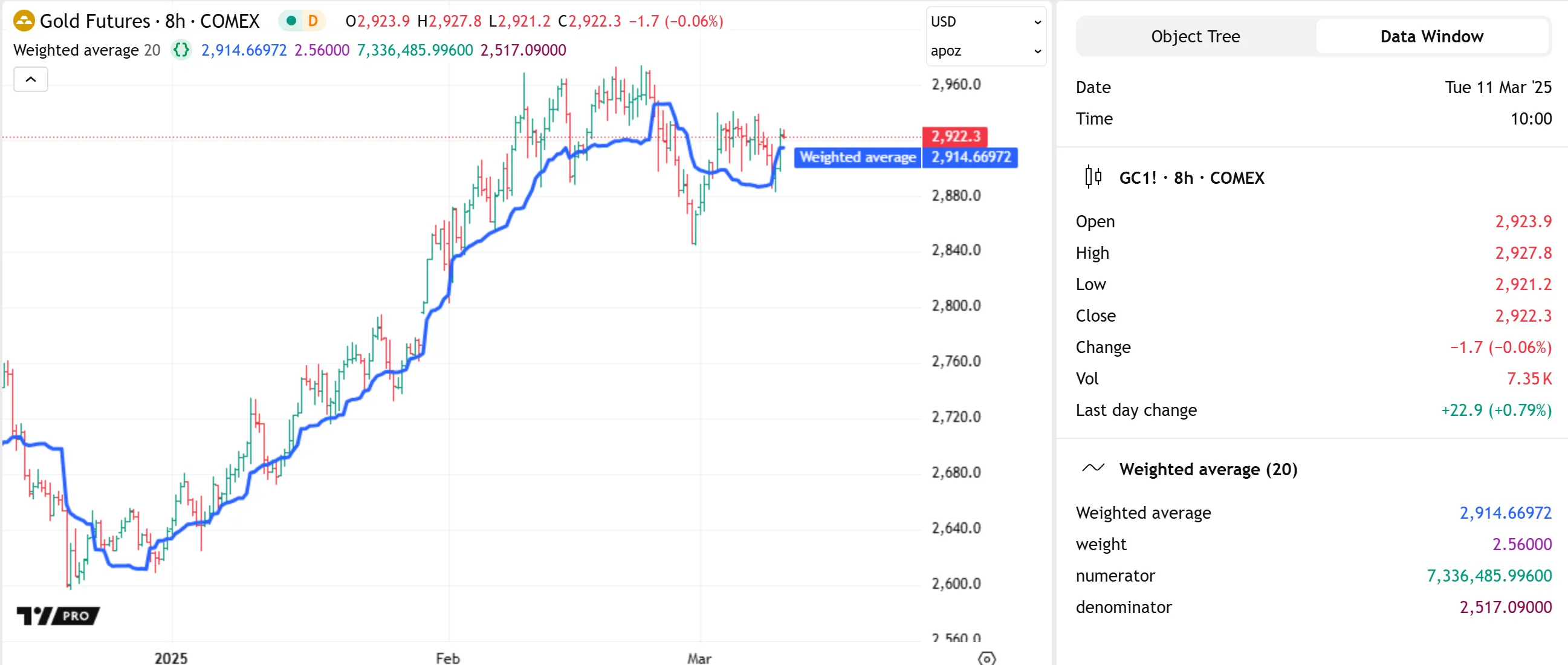

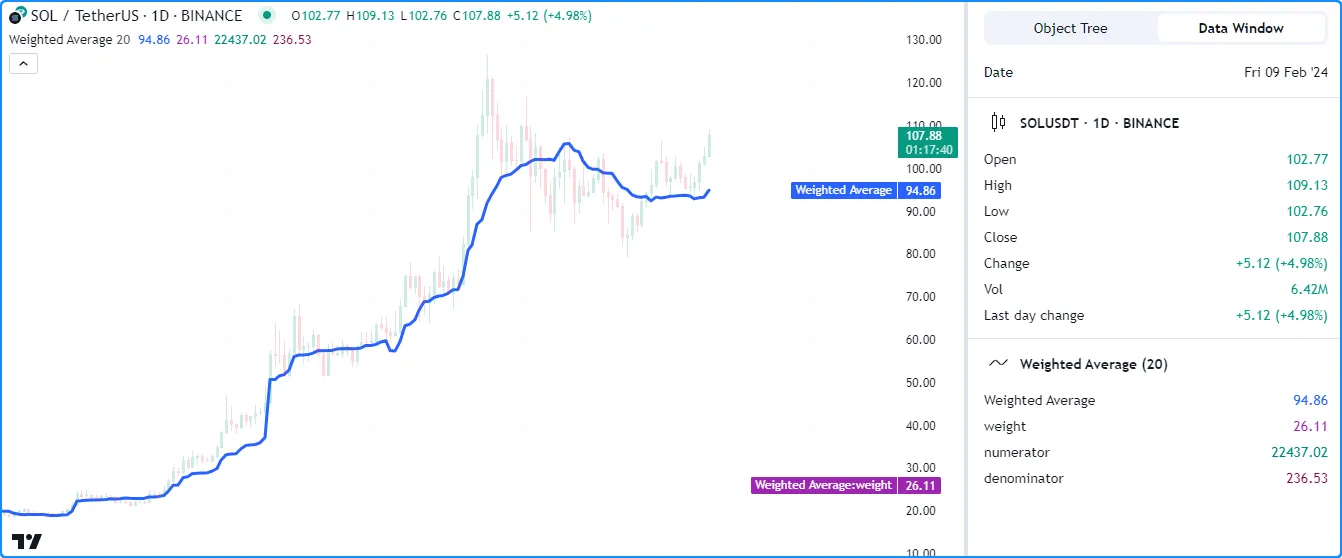

The version below includes a debugLocations variable in the debug plot() calls with a value of display.all - display.pane to specify that all locations except the chart pane will show the results. Now we can inspect the calculation’s values without the extra clutter:


//@version=5 indicator("Plotting without affecting the scale demo", "Weighted Average", true) //@variable The number of bars in the average. int lengthInput = input.int(20, "Length", 1) //@variable The weight applied to the price on each bar. float weight = math.pow(close - open, 2) //@variable The numerator of the average. float numerator = math.sum(close * weight, lengthInput) //@variable The denominator of the average. float denominator = math.sum(weight, lengthInput) //@variable The `lengthInput`-bar weighted average. float average = numerator / denominator // Plot the `average`. plot(average, "Weighted Average", linewidth = 3) //@variable The display locations of all debug plots. debugLocations = display.all - display.pane // Create debug plots for the `weight`, `numerator`, and `denominator`. plot(weight, "weight", color.purple, display = debugLocations) plot(numerator, "numerator", color.teal, display = debugLocations) plot(denominator, "denominator", color.maroon, display = debugLocations)

From local scopes

A script’s local scopes are sections of indented code within conditional structures, functions, and methods. When working with variables declared within these scopes, using the plot*() functions to display their values directly will not work, as plots only work with literals and global variables.

To display a local variable’s values using plots, one can assign its results to a global variable and pass that variable to the plot*() call.

For example, this script calculates the all-time maximum and minimum change in the close price over a lengthInput period. It uses an if structure to declare a local change variable and update the global maxChange and minChange once every lengthInput bars:


//@version=5 indicator("Plotting numbers from local scopes demo", "Periodic changes") //@variable The number of chart bars in each period. int lengthInput = input.int(20, "Period length", 1) //@variable The maximum `close` change over each `lengthInput` period on the chart. var float maxChange = na //@variable The minimum `close` change over each `lengthInput` period on the chart. var float minChange = na //@variable Is `true` once every `lengthInput` bars. bool periodClose = bar_index % lengthInput == 0 if periodClose //@variable The change in `close` prices over `lengthInput` bars. float change = close - close[lengthInput] // Update the global `maxChange` and `minChange`. maxChange := math.max(nz(maxChange, change), change) minChange := math.min(nz(minChange, change), change) // Plot the `maxChange` and `minChange`. plot(maxChange, "Max periodic change", color.teal, 3) plot(minChange, "Min periodic change", color.maroon, 3) hline(0.0, color = color.gray, linestyle = hline.style_solid)

Suppose we want to inspect the history of the change variable using a plot. While we cannot plot the variable directly since the script declares it in a local scope, we can assign its value to another global variable for use in a plot*() function.

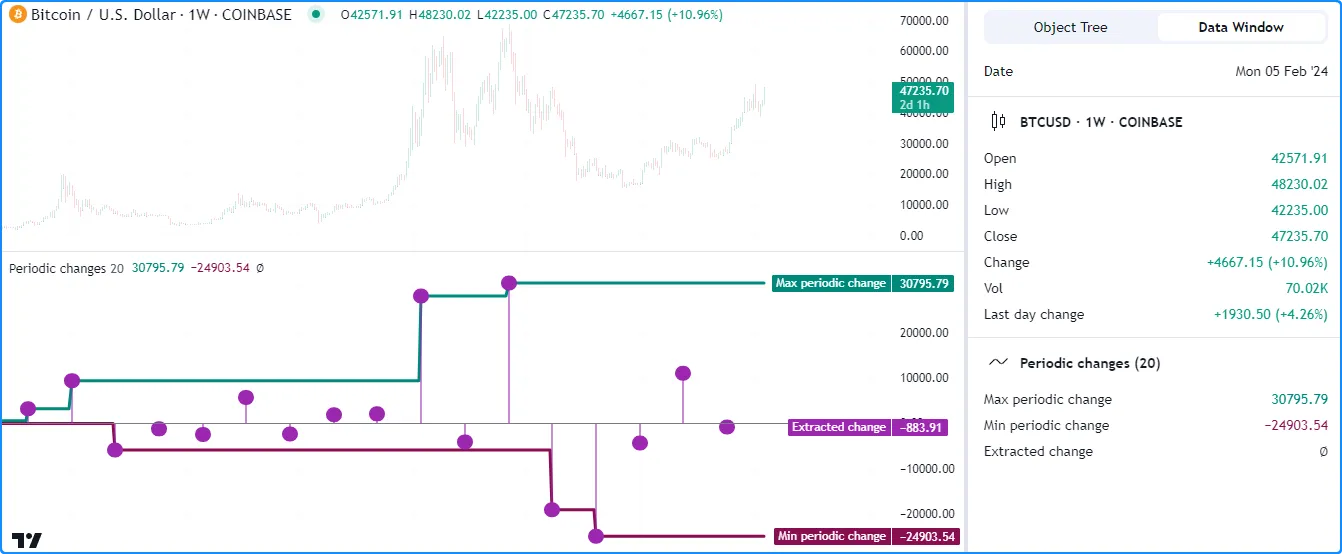

Below, we’ve added a debugChange variable with an initial value of na to the global scope, and the script reassigns its value within the if structure using the local change variable. Now, we can use plot() with the debugChange variable to view the history of available change values:


//@version=5 indicator("Plotting numbers from local scopes demo", "Periodic changes") //@variable The number of chart bars in each period. int lengthInput = input.int(20, "Period length", 1) //@variable The maximum `close` change over each `lengthInput` period on the chart. var float maxChange = na //@variable The minimum `close` change over each `lengthInput` period on the chart. var float minChange = na //@variable Is `true` once every `lengthInput` bars. bool periodClose = bar_index % lengthInput == 0 //@variable Tracks the history of the local `change` variable. float debugChange = na if periodClose //@variable The change in `close` prices over `lengthInput` bars. float change = close - close[lengthInput] // Update the global `maxChange` and `minChange`. maxChange := math.max(nz(maxChange, change), change) minChange := math.min(nz(minChange, change), change) // Assign the `change` value to the `debugChange` variable. debugChange := change // Plot the `maxChange` and `minChange`. plot(maxChange, "Max periodic change", color.teal, 3) plot(minChange, "Min periodic change", color.maroon, 3) hline(0.0, color = color.gray, linestyle = hline.style_solid) // Create a debug plot to visualize the `change` history. plot(debugChange, "Extracted change", color.purple, 15, plot.style_areabr)

Note that:

  • The script uses plot.style_areabr in the debug plot, which doesn’t bridge over na values as the default style does.
  • When the rightmost visible bar’s plotted value is na the number in the price scale represents the latest non-na value before that bar, if one exists.

With drawings

An alternative approach to graphically inspecting the history of a script’s numeric values is to use Pine’s drawing types, including lines, boxes, polylines, and labels.

While Pine drawings don’t display results anywhere other than the chart pane, scripts can create them from within local scopes, including the scopes of functions and methods (see the Debugging functions section to learn more). Additionally, scripts can position drawings at any available chart location, irrespective of the current bar_index.

For example, let’s revisit the “Periodic changes” script from the previous section. Suppose we’d like to inspect the history of the local change variable without using a plot. In this case, we can avoid declaring a separate global variable and instead create drawing objects directly from the if structure’s local scope.

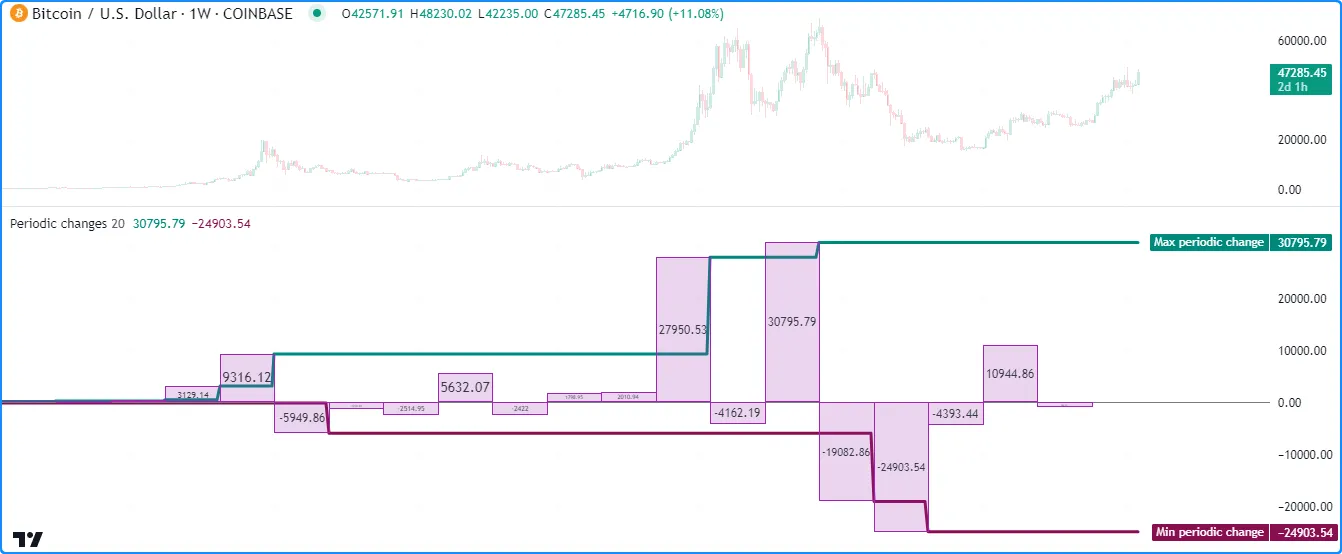

The script below is a modification of the previous script that uses boxes to visualize the change variable’s behavior. Inside the scope of the if structure, it calls box.new() to create a box that spans from the bar lengthInput bars ago to the current bar_index:


//@version=5 indicator("Drawing numbers from local scopes demo", "Periodic changes", max_boxes_count = 500) //@variable The number of chart bars in each period. int lengthInput = input.int(20, "Period length", 1) //@variable The maximum `close` change over each `lengthInput` period on the chart. var float maxChange = na //@variable The minimum `close` change over each `lengthInput` period on the chart. var float minChange = na //@variable Is `true` once every `lengthInput` bars. bool periodClose = bar_index % lengthInput == 0 if periodClose //@variable The change in `close` prices over `lengthInput` bars. float change = close - close[lengthInput] // Update the global `maxChange` and `minChange`. maxChange := math.max(nz(maxChange, change), change) minChange := math.min(nz(minChange, change), change) //@variable Draws a box on the chart to visualize the `change` value. box debugBox = box.new( bar_index - lengthInput, math.max(change, 0.0), bar_index, math.min(change, 0.0), color.purple, bgcolor = color.new(color.purple, 80), text = str.tostring(change) ) // Plot the `maxChange` and `minChange`. plot(maxChange, "Max periodic change", color.teal, 3) plot(minChange, "Min periodic change", color.maroon, 3) hline(0.0, color = color.gray, linestyle = hline.style_solid)

Note that:

For more information about using boxes and other related drawing types, see our User Manual’s Lines and boxes page.

Conditions

Many scripts one will create in Pine involve declaring and evaluating conditions to dictate specific script actions, such as triggering different calculation patterns, visuals, signals, alerts, strategy orders, etc. As such, it’s imperative to understand how to inspect the conditions a script uses to ensure proper execution.

As numbers

One possible way to debug a script’s conditions is to define numeric values based on them, which allows programmers to inspect them using numeric approaches, such as those outlined in the previous section.

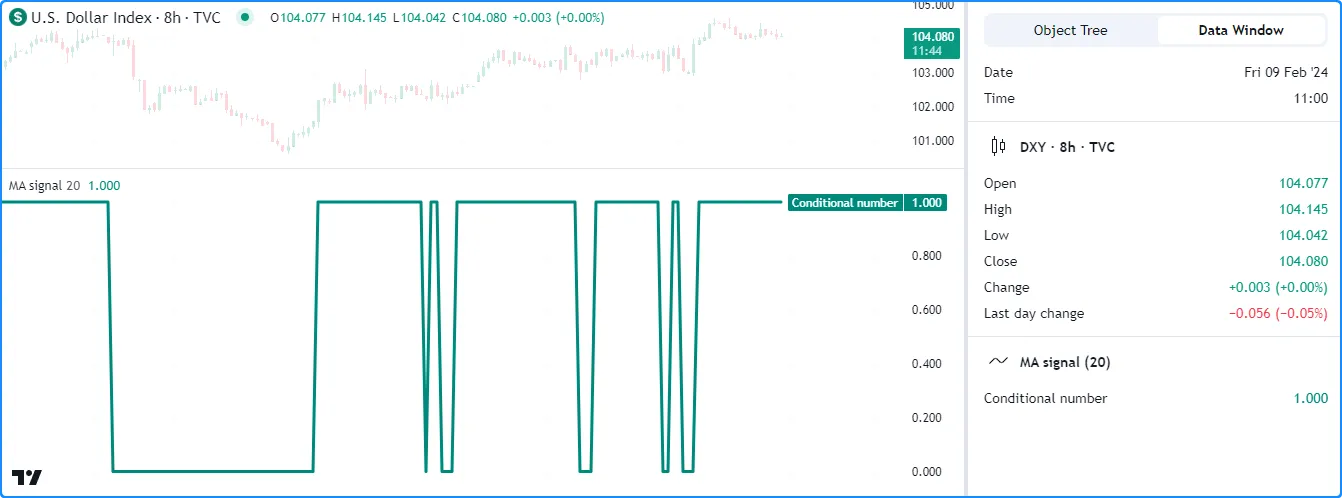

Let’s look at a simple example. This script calculates the ratio between the ohlc4 price and the lengthInput-bar moving average. It assigns a condition to the priceAbove variable that returns true whenever the value of the ratio exceeds 1 (i.e., the price is above the average).

To inspect the occurrences of the condition, we created a debugValue variable assigned to the result of an expression that uses the ternary ?: operator to return 1 when priceAbove is true and 0 otherwise. The script plots the variable’s value in all available locations:


//@version=5 indicator("Conditions as numbers demo", "MA signal") //@variable The number of bars in the moving average calculation. int lengthInput = input.int(20, "Length", 1) //@variable The ratio of the `ohlc4` price to its `lengthInput`-bar moving average. float ratio = ohlc4 / ta.sma(ohlc4, lengthInput) //@variable The condition to inspect. Is `true` when `ohlc4` is above its moving average, `false` otherwise. bool priceAbove = ratio > 1.0 //@variable Returns 1 when the `priceAbove` condition is `true`, 0 otherwise. int debugValue = priceAbove ? 1 : 0 // Plot the `debugValue. plot(debugValue, "Conditional number", color.teal, 3)

Note that:

  • Representing “bool” values using numbers also allows scripts to display conditional shapes or characters at specific y-axis locations with plotshape() and plotchar(), and it facilitates conditional debugging with plotarrow(). See the next section to learn more.

Plotting conditional shapes

The plotshape() and plotchar() functions provide utility for debugging conditions, as they can plot shapes or characters at absolute or relative chart locations whenever they contain a true or non-na series argument.

These functions can also display numeric representations of the series in the script’s status line and the Data Window, meaning they’re also helpful for debugging numbers. We show a simple, practical way to debug numbers with these functions in the Tips section.

The chart locations of the plots depend on the location parameter, which is location.abovebar by default.

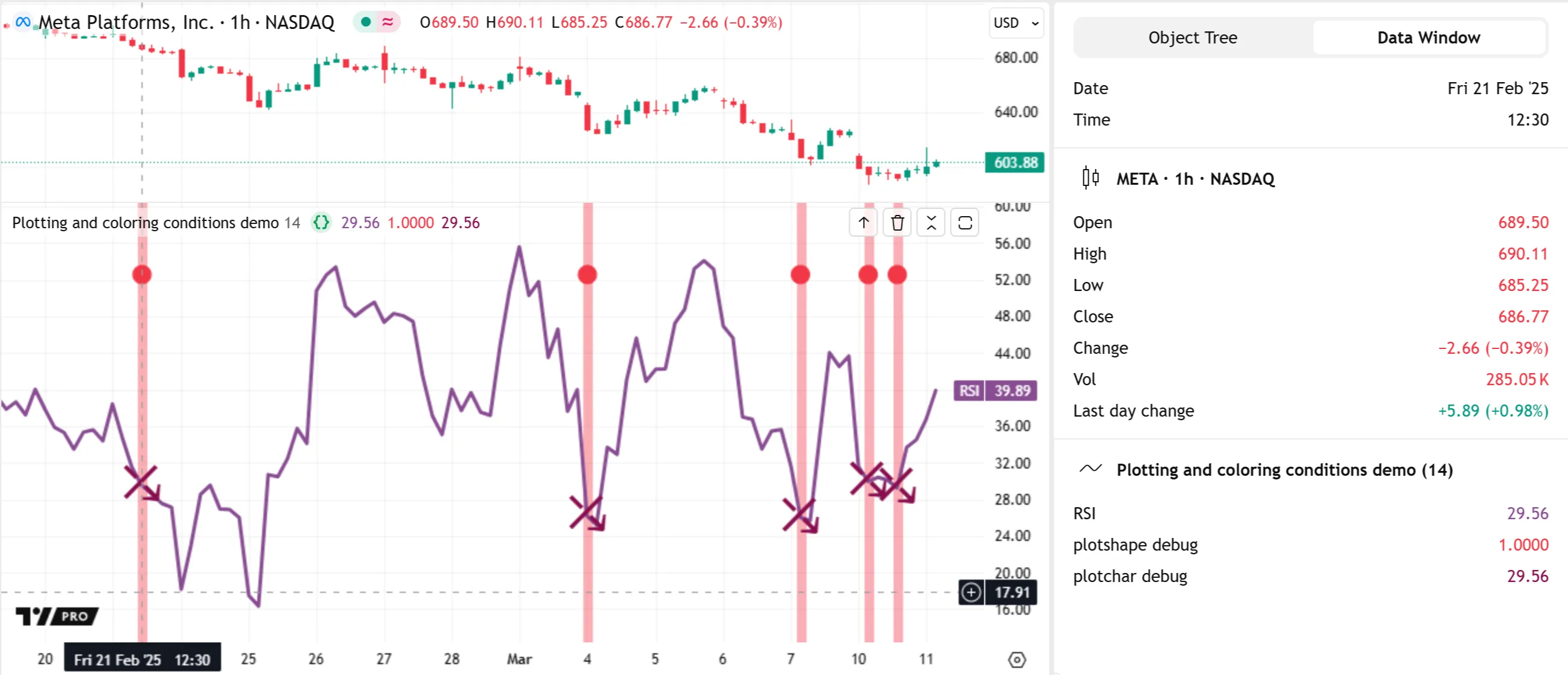

Let’s inspect a condition using these functions. The following script calculates an RSI with a lengthInput length and a crossBelow variable whose value is the result of a condition that returns true when the RSI crosses below 30. It calls plotshape() to display a circle near the top of the pane each time the condition occurs:


//@version=5 indicator("Conditional shapes demo", "RSI cross under 30") //@variable The length of the RSI. int lengthInput = input.int(14, "Length", 1) //@variable The calculated RSI value. float rsi = ta.rsi(close, lengthInput) //@variable Is `true` when the `rsi` crosses below 30, `false` otherwise. bool crossBelow = ta.crossunder(rsi, 30.0) // Plot the `rsi`. plot(rsi, "RSI", color.rgb(136, 76, 146), linewidth = 3) // Plot the `crossBelow` condition as circles near the top of the pane. plotshape(crossBelow, "RSI crossed below 30", shape.circle, location.top, color.red, size = size.small)

Note that:

  • The status line and Data Window show a value of 1 when crossBelow is true and 0 when it’s false.

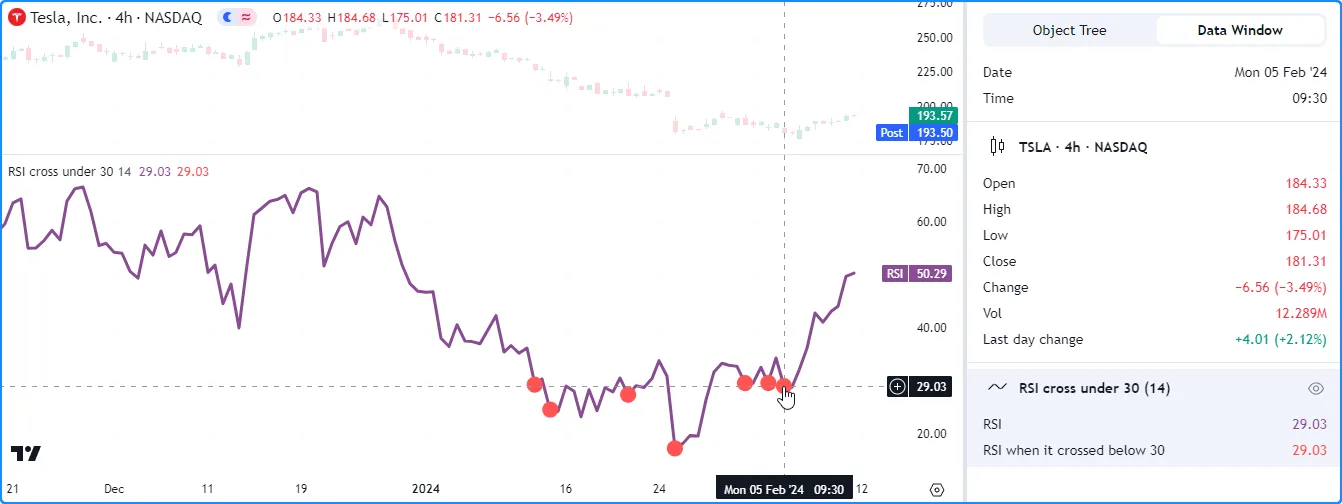

Suppose we’d like to display the shapes at precise locations rather than relative to the chart pane. We can achieve this by using conditional numbers and location.absolute in the plotshape() call.

In this example, we’ve modified the previous script by creating a debugNumber variable that returns the rsi value when crossBelow is true and na otherwise. The plotshape() function uses this new variable as its series argument and location.absolute as its location argument:


//@version=5 indicator("Conditional shapes demo", "RSI cross under 30") //@variable The length of the RSI. int lengthInput = input.int(14, "Length", 1) //@variable The calculated RSI value. float rsi = ta.rsi(close, lengthInput) //@variable Is `true` when the `rsi` crosses below 30, `false` otherwise. bool crossBelow = ta.crossunder(rsi, 30.0) //@variable Returns the `rsi` when `crossBelow` is `true`, `na` otherwise. float debugNumber = crossBelow ? rsi : na // Plot the `rsi`. plot(rsi, "RSI", color.rgb(136, 76, 146), linewidth = 3) // Plot circles at the `debugNumber`. plotshape(debugNumber, "RSI when it crossed below 30", shape.circle, location.absolute, color.red, size = size.small)

Note that:

  • Since we passed a numeric series to the function, our conditional plot now shows the values of the debugNumber in the status line and Data Window instead of 1 or 0.

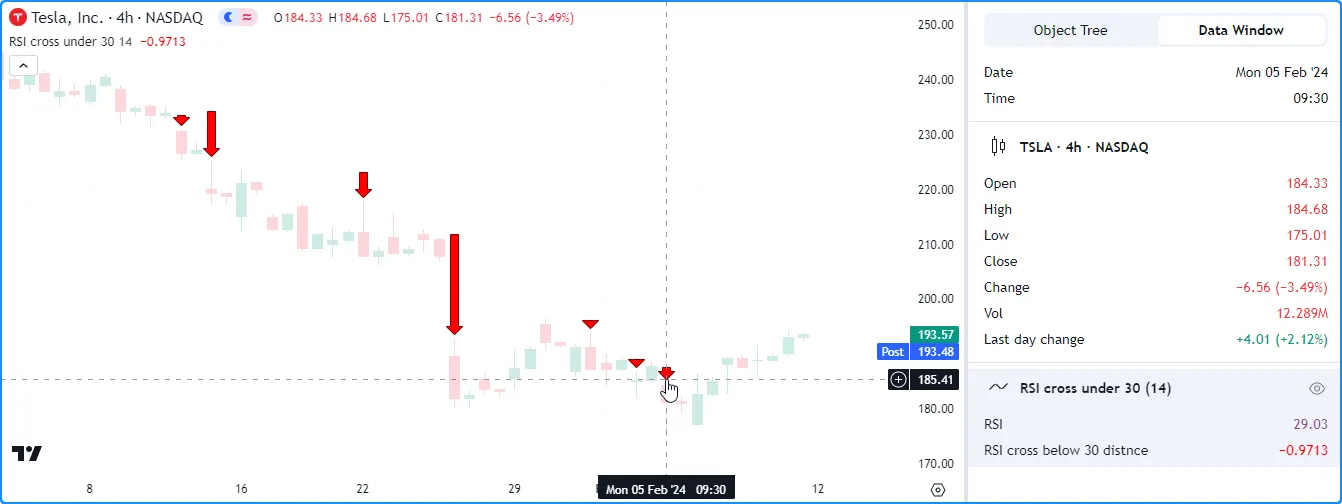

Another handy way to debug conditions is to use plotarrow(). This function plots an arrow with a location relative to the main chart prices whenever the series argument is nonzero and not na. The length of each arrow varies with the series value supplied. As with plotshape() and plotchar(), plotarrow() can also display numeric results in the status line and the Data Window.

This example shows an alternative way to inspect our crossBelow condition using plotarrow(). In this version, we’ve set overlay to true in the indicator() function and added a plotarrow() call to visualize the conditional values. The debugNumber in this example measures how far the rsi dropped below 30 each time the condition occurs:


//@version=5 indicator("Conditional shapes demo", "RSI cross under 30", true) //@variable The length of the RSI. int lengthInput = input.int(14, "Length", 1) //@variable The calculated RSI value. float rsi = ta.rsi(close, lengthInput) //@variable Is `true` when the `rsi` crosses below 30, `false` otherwise. bool crossBelow = ta.crossunder(rsi, 30.0) //@variable Returns `rsi - 30.0` when `crossBelow` is `true`, `na` otherwise. float debugNumber = crossBelow ? rsi - 30.0 : na // Plot the `rsi`. plot(rsi, "RSI", color.rgb(136, 76, 146), display = display.data_window) // Plot circles at the `debugNumber`. plotarrow(debugNumber, "RSI cross below 30 distnce")

Note that:

To learn more about plotshape(), plotchar(), and plotarrow(), see this manual’s Text and shapes page.

Conditional colors

An elegant way to visually represent conditions in Pine is to create expressions that return color values based on true or false states, as scripts can use them to control the appearance of drawing objects or the results of plot*(), fill(), bgcolor(), or barcolor() calls.

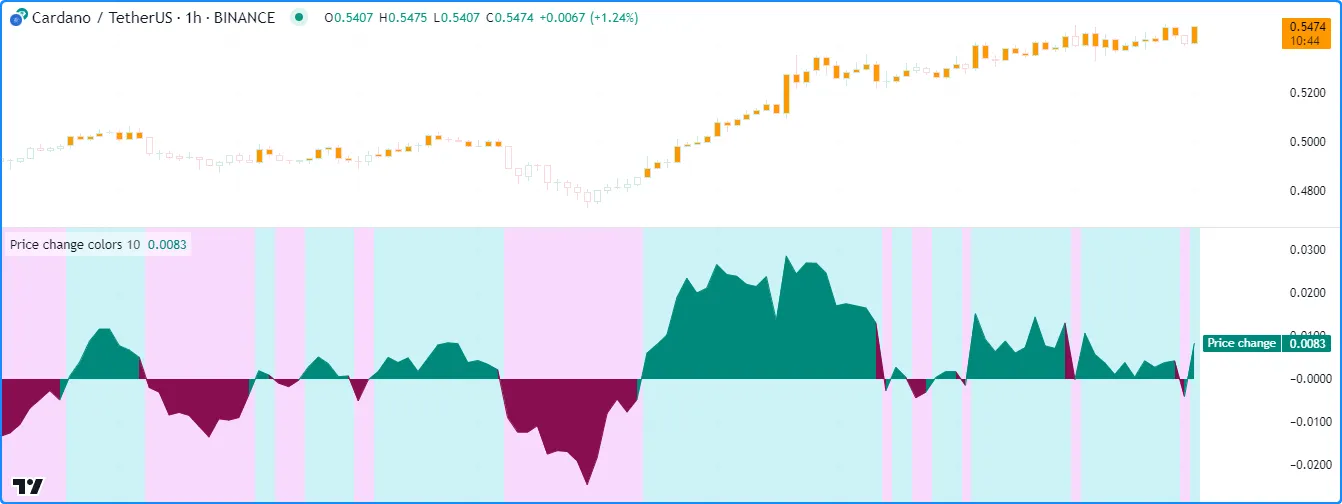

For example, this script calculates the change in close prices over lengthInput bars and declares two “bool” variables to identify when the price change is positive or negative.

The script uses these “bool” values as conditions in ternary expressions to assign the values of three “color” variables, then uses those variables as the color arguments in plot(), bgcolor(), and barcolor() to debug the results:


//@version=5 indicator("Conditional colors demo", "Price change colors") //@variable The number of bars in the price change calculation. int lengthInput = input.int(10, "Length", 1) //@variable The change in `close` prices over `lengthInput` bars. float priceChange = ta.change(close, lengthInput) //@variable Is `true` when the `priceChange` is a positive value, `false` otherwise. bool isPositive = priceChange > 0 //@variable Is `true` when the `priceChange` is a negative value, `false` otherwise. bool isNegative = priceChange < 0 //@variable Returns a color for the `priceChange` plot to show when `isPositive`, `isNegative`, or neither occurs. color plotColor = isPositive ? color.teal : isNegative ? color.maroon : chart.fg_color //@variable Returns an 80% transparent color for the background when `isPositive` or `isNegative`, `na` otherwise. color bgColor = isPositive ? color.new(color.aqua, 80) : isNegative ? color.new(color.fuchsia, 80) : na //@variable Returns a color to emphasize chart bars when `isPositive` occurs. Otherwise, returns the `chart.bg_color`. color barColor = isPositive ? color.orange : chart.bg_color // Plot the `priceChange` and color it with the `plotColor`. plot(priceChange, "Price change", plotColor, style = plot.style_area) // Highlight the pane's background with the `bgColor`. bgcolor(bgColor, title = "Background highlight") // Emphasize the chart bars with positive price change using the `barColor`. barcolor(barColor, title = "Positive change bars")

Note that:

  • The barcolor() function always colors the main chart’s bars, regardless of whether the script occupies another chart pane, and the chart will only display the results if the bars are visible.

See the Colors, Fills, Backgrounds, and Bar coloring pages for more information about working with colors, filling plots, highlighting backgrounds, and coloring bars.

Using drawings

Pine Script™‘s drawing types provide flexible ways to visualize conditions on the chart, especially when the conditions are within local scopes.

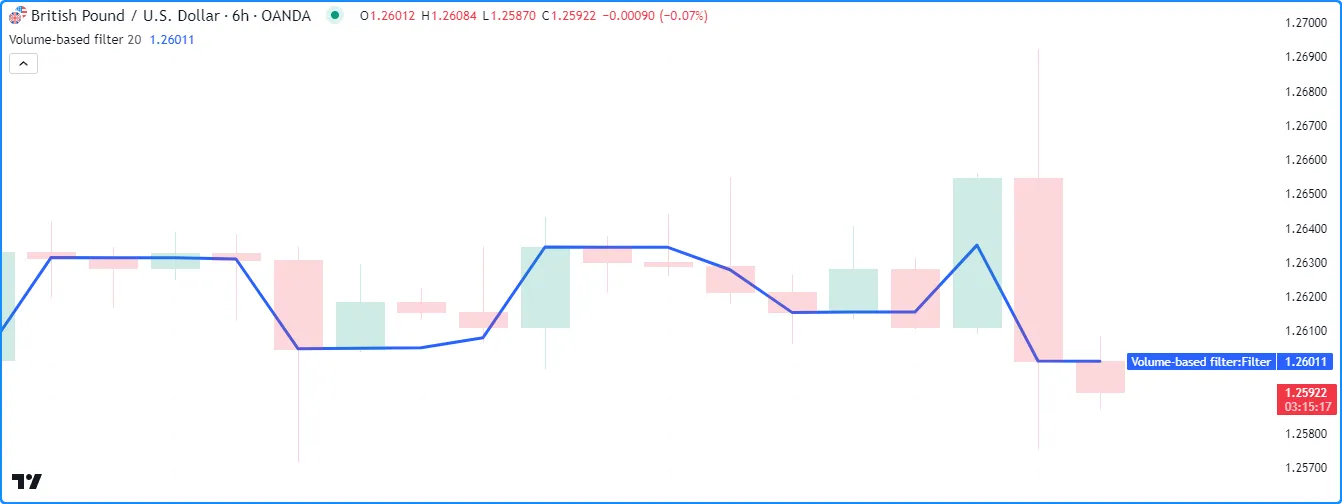

Consider the following script, which calculates a custom filter with a smoothing parameter (alpha) that changes its value within an if structure based on recent volume conditions:


//@version=5 indicator("Conditional drawings demo", "Volume-based filter", true) //@variable The number of bars in the volume average. int lengthInput = input.int(20, "Volume average length", 1) //@variable The average `volume` over `lengthInput` bars. float avgVolume = ta.sma(volume, lengthInput) //@variable A custom price filter based on volume activity. float filter = close //@variable The smoothing parameter of the filter calculation. Its value depends on multiple volume conditions. float alpha = na // Set the `alpha` to 1 if `volume` exceeds its `lengthInput`-bar moving average. if volume > avgVolume alpha := 1.0 // Set the `alpha` to 0.5 if `volume` exceeds its previous value. else if volume > volume[1] alpha := 0.5 // Set the `alpha` to 0.01 otherwise. else alpha := 0.01 // Calculate the new `filter` value. filter := (1.0 - alpha) * nz(filter[1], filter) + alpha * close // Plot the `filter`. plot(filter, "Filter", linewidth = 3)

Suppose we’d like to inspect the conditions that control the alpha value. There are several ways we could approach the task with chart visuals. However, some approaches will involve more code and careful handling.

For example, to visualize the if structure’s conditions using plotted shapes or background colors, we’d have to create additional variables or expressions in the global scope for the plot*() or bgcolor() functions to access.

Alternatively, we can use drawing types to visualize the conditions concisely without those extra steps.

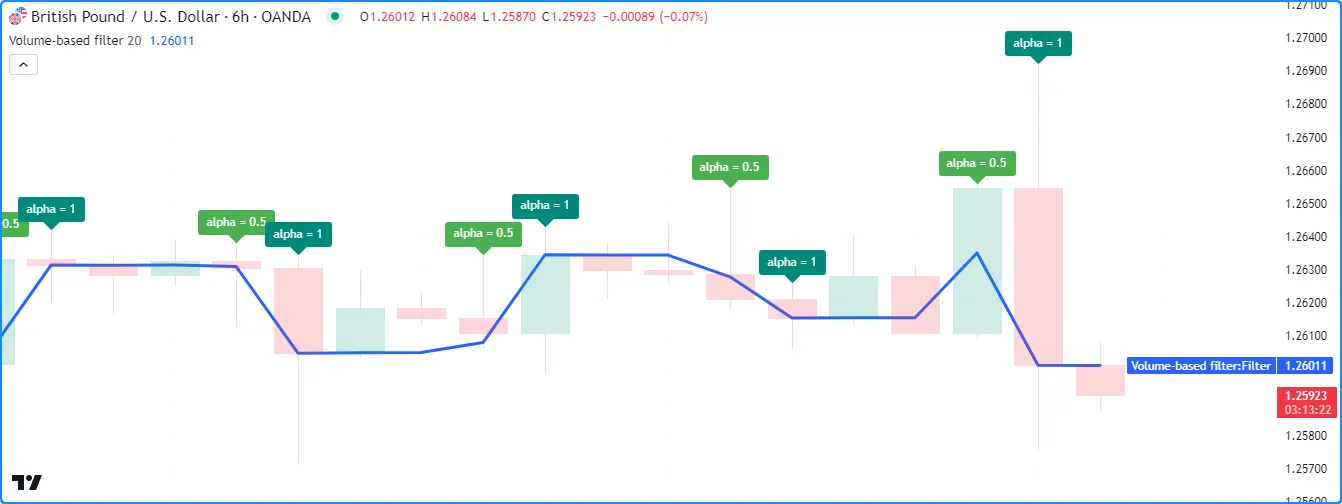

The following is a modification of the previous script that calls label.new() within specific branches of the conditional structure to draw labels on the chart whenever those branches execute. These simple changes allow us to identify those conditions on the chart without much extra code:


//@version=5 indicator("Conditional drawings demo", "Volume-based filter", true, max_labels_count = 500) //@variable The number of bars in the volume average. int lengthInput = input.int(20, "Volume average length", 1) //@variable The average `volume` over `lengthInput` bars. float avgVolume = ta.sma(volume, lengthInput) //@variable A custom price filter based on volume activity. float filter = close //@variable The smoothing parameter of the filter calculation. Its value depends on multiple volume conditions. float alpha = na // Set the `alpha` to 1 if `volume` exceeds its `lengthInput`-bar moving average. if volume > avgVolume // Add debug label. label.new(chart.point.now(high), "alpha = 1", color = color.teal, textcolor = color.white) alpha := 1.0 // Set the `alpha` to 0.5 if `volume` exceeds its previous value. else if volume > volume[1] // Add debug label. label.new(chart.point.now(high), "alpha = 0.5", color = color.green, textcolor = color.white) alpha := 0.5 // Set the `alpha` to 0.01 otherwise. else alpha := 0.01 // Calculate the new `filter` value. filter := (1.0 - alpha) * nz(filter[1], filter) + alpha * close // Plot the `filter`. plot(filter, "Filter", linewidth = 3)

Note that:

  • We added the label.new() calls above the alpha reassignment expressions, as the returned types of each branch in the if structure must match.
  • The indicator() function includes max_labels_count = 500 to specify that the script can show up to 500 labels on the chart.

Compound and nested conditions

When a programmer needs to identify situations where more than one condition can occur, they may construct compound conditions by aggregating individual conditions with logical operators (and, or).

For example, this line of code shows a compoundCondition variable that only returns true if condition1 and either condition2 or condition3 occurs:

bool compoundCondition = condition1 and (condition2 or condition3)

One may alternatively create nested conditions using conditional structures or ternary expressions. For example, this if structure assigns true to the nestedCondition variable if condition1 and condition2 or condition3 occurs. However, unlike the logical expression above, the branches of this structure also allow the script to execute additional code before assigning the “bool” value:

bool nestedCondition = false if condition1 // [additional_code] if condition2 // [additional_code] nestedCondition := true else if condition3 // [additional_code] nestedCondition := true

In either case, whether working with compound or nested conditions in code, one will save many headaches and ensure they work as expected by validating the behaviors of the individual conditions that compose them.

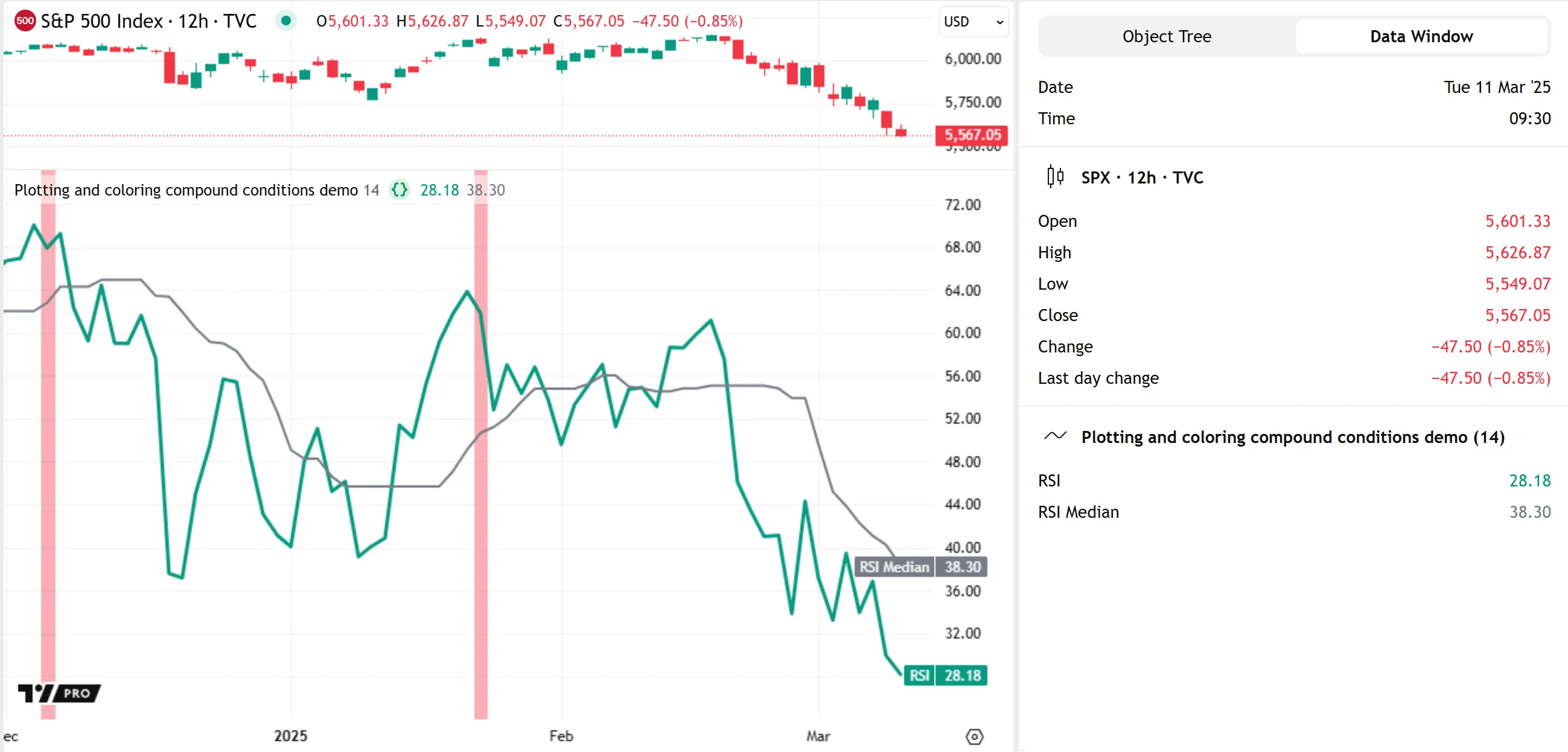

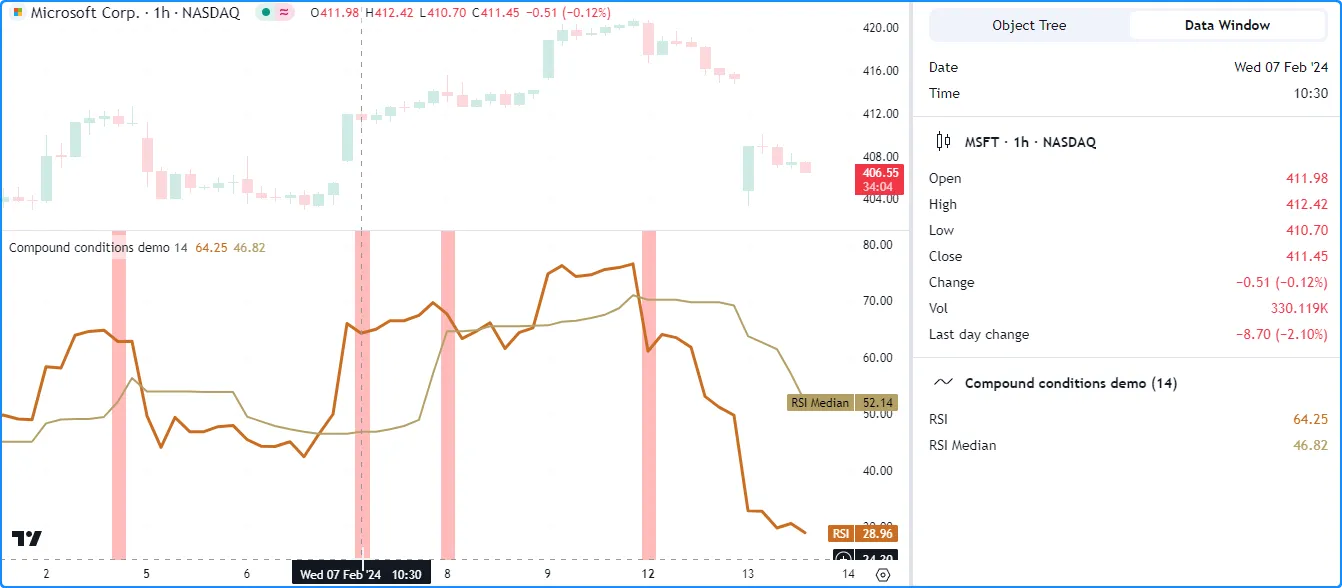

For example, this script calculates an rsi and the median of the rsi over lengthInput bars. Then, it creates five variables to represent different singular conditions. The script uses these variables in a logical expression to assign a “bool” value to the compoundCondition variable, and it displays the results of the compoundCondition using a conditional background color:


//@version=5 indicator("Compound conditions demo") //@variable The length of the RSI and median RSI calculations. int lengthInput = input.int(14, "Length", 2) //@variable The `lengthInput`-bar RSI. float rsi = ta.rsi(close, lengthInput) //@variable The `lengthInput`-bar median of the `rsi`. float median = ta.median(rsi, lengthInput) //@variable Condition #1: Is `true` when the 1-bar `rsi` change switches from 1 to -1. bool changeNegative = ta.change(math.sign(ta.change(rsi))) == -2 //@variable Condition #2: Is `true` when the previous bar's `rsi` is greater than 70. bool prevAbove70 = rsi[1] > 70.0 //@variable Condition #3: Is `true` when the current `close` is lower than the previous bar's `open`. bool closeBelow = close < open[1] //@variable Condition #4: Is `true` when the `rsi` is between 60 and 70. bool betweenLevels = bool(math.max(70.0 - rsi, 0.0) * math.max(rsi - 60.0, 0.0)) //@variable Condition #5: Is `true` when the `rsi` is above the `median`. bool aboveMedian = rsi > median //@variable Is `true` when the first condition occurs alongside conditions 2 and 3 or 4 and 5. bool compundCondition = changeNegative and ((prevAbove70 and closeBelow) or (betweenLevels and aboveMedian)) //Plot the `rsi` and the `median`. plot(rsi, "RSI", color.rgb(201, 109, 34), 3) plot(median, "RSI Median", color.rgb(180, 160, 102), 2) // Highlight the background red when the `compundCondition` occurs. bgcolor(compundCondition ? color.new(color.red, 60) : na, title = "compundCondition")

As we see above, it’s not necessarily easy to understand the behavior of the compoundCondition by only visualizing its end result, as five underlying singular conditions determine the final value. To effectively debug the compoundCondition in this case, we must also inspect the conditions that compose it.

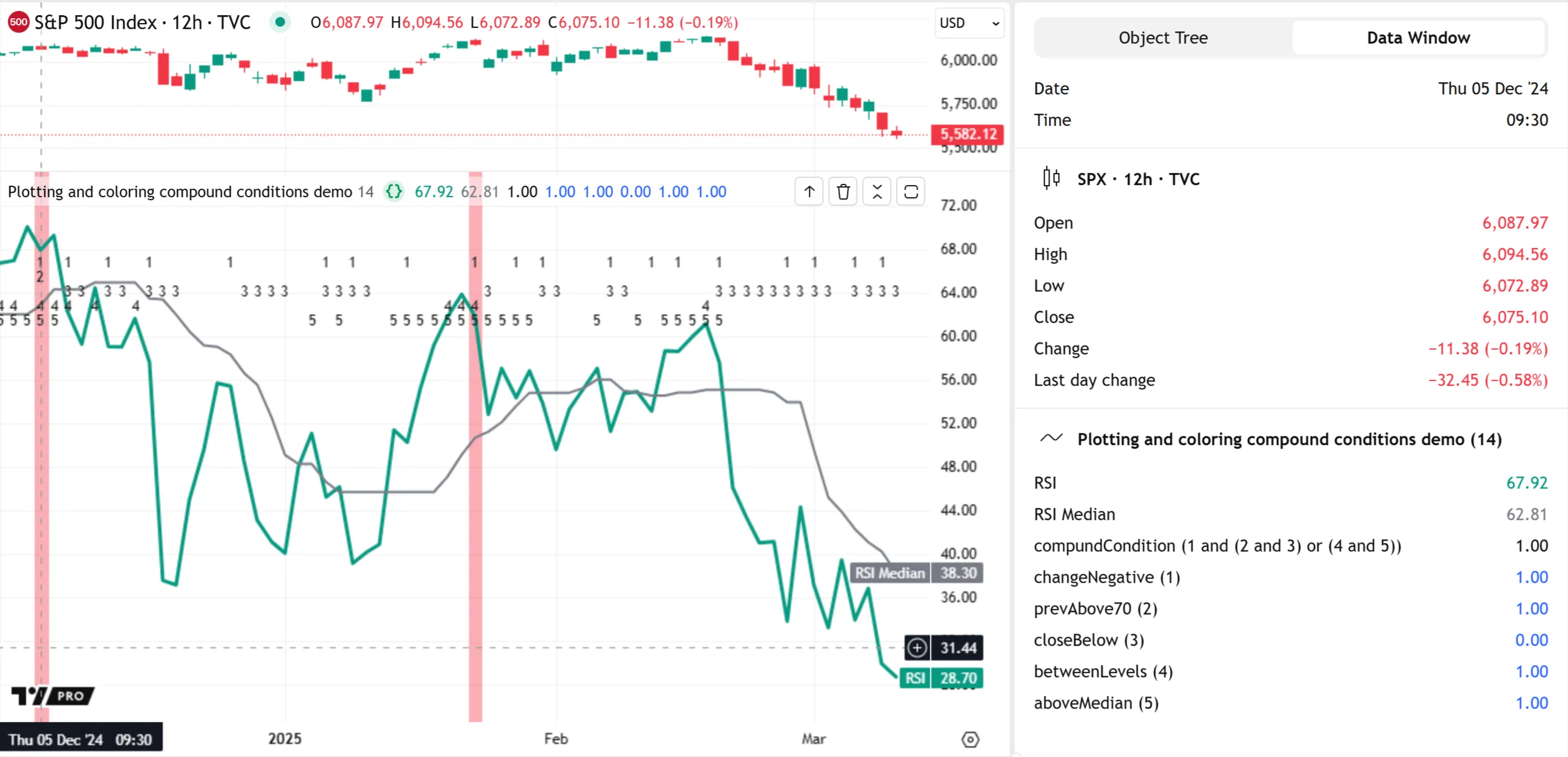

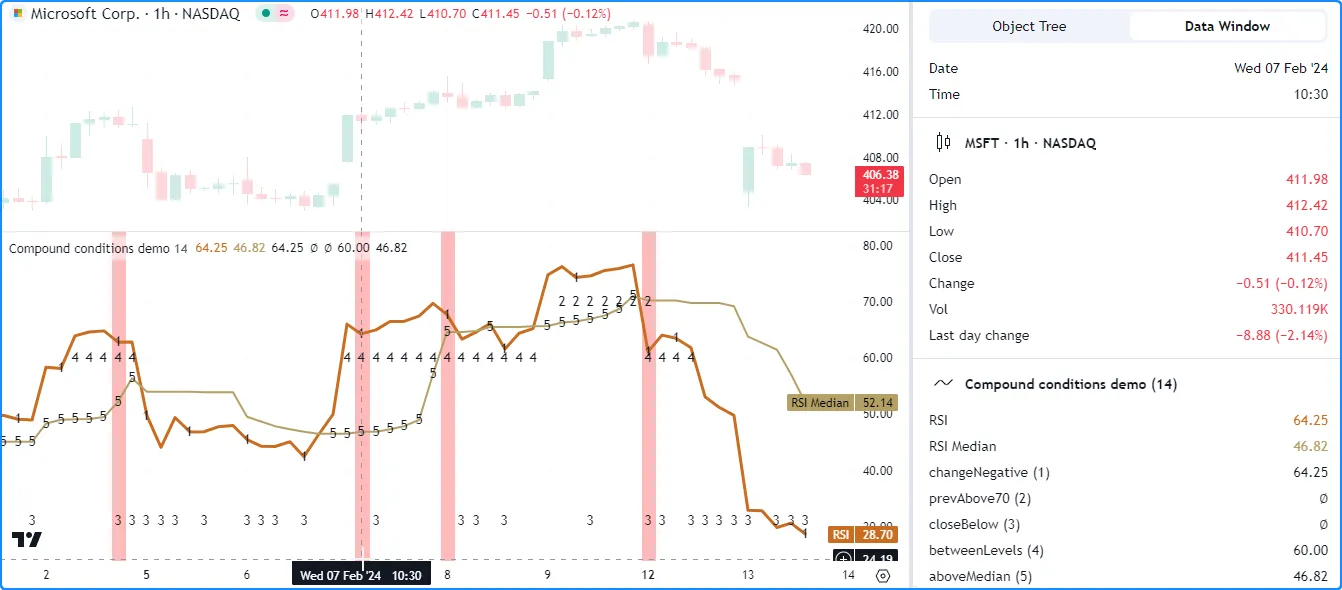

In the example below, we’ve added five plotchar() calls to display characters on the chart and numeric values in the status line and Data Window when each singular condition occurs. Inspecting each of these results provides us with more complete information about the compoundCondition’s behavior:


//@version=5 indicator("Compound conditions demo") //@variable The length of the RSI and median RSI calculations. int lengthInput = input.int(14, "Length", 2) //@variable The `lengthInput`-bar RSI. float rsi = ta.rsi(close, lengthInput) //@variable The `lengthInput`-bar median of the `rsi`. float median = ta.median(rsi, lengthInput) //@variable Condition #1: Is `true` when the 1-bar `rsi` change switches from 1 to -1. bool changeNegative = ta.change(math.sign(ta.change(rsi))) == -2 //@variable Condition #2: Is `true` when the previous bar's `rsi` is greater than 70. bool prevAbove70 = rsi[1] > 70.0 //@variable Condition #3: Is `true` when the current `close` is lower than the previous bar's `open`. bool closeBelow = close < open[1] //@variable Condition #4: Is `true` when the `rsi` is between 60 and 70. bool betweenLevels = bool(math.max(70.0 - rsi, 0.0) * math.max(rsi - 60.0, 0.0)) //@variable Condition #5: Is `true` when the `rsi` is above the `median`. bool aboveMedian = rsi > median //@variable Is `true` when the first condition occurs alongside conditions 2 and 3 or 4 and 5. bool compundCondition = changeNegative and ((prevAbove70 and closeBelow) or (betweenLevels and aboveMedian)) //Plot the `rsi` and the `median`. plot(rsi, "RSI", color.rgb(201, 109, 34), 3) plot(median, "RSI Median", color.rgb(180, 160, 102), 2) // Highlight the background red when the `compundCondition` occurs. bgcolor(compundCondition ? color.new(color.red, 60) : na, title = "compundCondition") // Plot characters on the chart when conditions 1-5 occur. plotchar(changeNegative ? rsi : na, "changeNegative (1)", "1", location.absolute, chart.fg_color) plotchar(prevAbove70 ? 70.0 : na, "prevAbove70 (2)", "2", location.absolute, chart.fg_color) plotchar(closeBelow ? close : na, "closeBelow (3)", "3", location.bottom, chart.fg_color) plotchar(betweenLevels ? 60 : na, "betweenLevels (4)", "4", location.absolute, chart.fg_color) plotchar(aboveMedian ? median : na, "aboveMedian (5)", "5", location.absolute, chart.fg_color)

Note that:

  • Each plotchar() call uses a conditional number as the series argument. The functions display the numeric values in the status line and Data Window.
  • All the plotchar() calls, excluding the one for the closeBelow condition, use location.absolute as the location argument to display characters at precise locations whenever their series is not na (i.e., the condition occurs). The call for closeBelow uses location.bottom to display its characters near the bottom of the pane.
  • In this section’s examples, we assigned individual conditions to separate variables with straightforward names and annotations. While this format isn’t required to create a compound condition since one can combine conditions directly within a logical expression, it makes for more readable code that’s easier to debug, as explained in the Tips section.

Strings

Strings are sequences of alphanumeric, control, and other characters (e.g., Unicode). They provide utility when debugging scripts, as programmers can use them to represent a script’s data types as human-readable text and inspect them with drawing types that have text-related properties, or by using Pine Logs.

Representing other types

Users can create “string” representations of virtually any data type, facilitating effective debugging when other approaches may not suffice. Before exploring “string” inspection techniques, let’s briefly review ways to represent a script’s data using strings.

Pine Script™ includes predefined logic to construct “string” representations of several other built-in types, such as int, float, bool, array, and matrix. Scripts can conveniently represent such types as strings via the str.tostring() and str.format() functions.

For example, this snippet creates strings to represent multiple values using these functions:

//@variable Returns: "1.25" string floatRepr = str.tostring(1.25) //@variable Returns: "1" string rounded0 = str.tostring(1.25, "#") //@variable Returns: "1.3" string rounded1 = str.tostring(1.25, "#.#") //@variable Returns: "1.2500" string trailingZeros = str.tostring(1.25, "#.0000") //@variable Returns: "true" string trueRepr = str.tostring(true) //@variable Returns: "false" string falseRepr = str.tostring(5 == 3) //@variable Returns: "[1, 2, -3.14]" string floatArrayRepr = str.tostring(array.from(1, 2.0, -3.14)) //@variable Returns: "[2, 20, 0]" string roundedArrayRepr = str.tostring(array.from(2.22, 19.6, -0.43), "#") //@variable Returns: "[Hello, World, !]" string stringArrayRepr = str.tostring(array.from("Hello", "World", "!")) //@variable Returns: "Test: 2.718 ^ 2 > 5: true" string mixedTypeRepr = str.format("{0}{1, number, #.###} ^ 2 > {2}: {3}", "Test: ", math.e, 5, math.e * math.e > 5) //@variable Combines all the above strings into a multi-line string. string combined = str.format( "{0}\n{1}\n{2}\n{3}\n{4}\n{5}\n{6}\n{7}\n{8}\n{9}", floatRepr, rounded0, rounded1, trailingZeros, trueRepr, falseRepr, floatArrayRepr, roundedArrayRepr, stringArrayRepr, mixedTypeRepr )

When working with “int” values that symbolize UNIX timestamps, such as those returned from time-related functions and variables, one can also use str.format() or str.format_time() to convert them to human-readable date strings. This code block demonstrates multiple ways to convert a timestamp using these functions:

//@variable A UNIX timestamp, in milliseconds. int unixTime = 1279411200000 //@variable Returns: "2010-07-18T00:00:00+0000" string default = str.format_time(unixTime) //@variable Returns: "2010-07-18" string ymdRepr = str.format_time(unixTime, "yyyy-MM-dd") //@variable Returns: "07-18-2010" string mdyRepr = str.format_time(unixTime, "MM-dd-yyyy") //@variable Returns: "20:00:00, 2010-07-17" string hmsymdRepr = str.format_time(unixTime, "HH:mm:ss, yyyy-MM-dd", "America/New_York") //@variable Returns: "Year: 2010, Month: 07, Day: 18, Time: 12:00:00" string customFormat = str.format( "Year: {0, time, yyyy}, Month: {1, time, MM}, Day: {2, time, dd}, Time: {3, time, hh:mm:ss}", unixTime, unixTime, unixTime, unixTime )

When working with types that don’t have built-in “string” representations, e.g., color, map, user-defined types, etc., programmers can use custom logic or formatting to construct representations. For example, this code calls str.format() to represent a “color” value using its r, g, b, and t components:

//@variable The built-in `color.maroon` value with 17% transparency. color myColor = color.new(color.maroon, 17) // Get the red, green, blue, and transparency components from `myColor`. float r = color.r(myColor) float g = color.g(myColor) float b = color.b(myColor) float t = color.t(myColor) //@variable Returns: "color (r = 136, g = 14, b = 79, t = 17)" string customRepr = str.format("color (r = {0}, g = {1}, b = {2}, t = {3})", r, g, b, t)

There are countless ways one can represent data using strings. When choosing string formats for debugging, ensure the results are readable and provide enough information for proper inspection. The following segments explain ways to validate strings by displaying them on the chart using labels, and the section after these segments explains how to display strings as messages in the Pine Logs pane.

Using labels

Labels allow scripts to display dynamic text (“series strings”) at any available location on the chart. Where to display such text on the chart depends on the information the programmer wants to inspect and their debugging preferences.

On successive bars

When inspecting the history of values that affect the chart’s scale or working with multiple series that have different types, a simple, handy debugging approach is to draw labels that display string representations on successive bars.

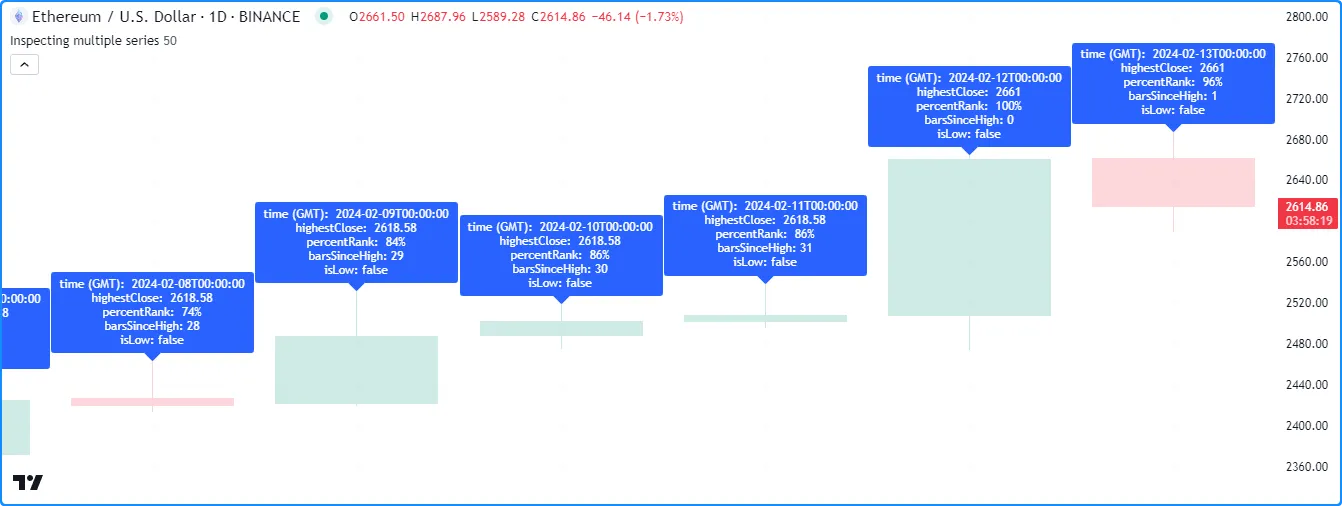

For example, this script calculates four series: highestClose, percentRank, barsSinceHigh, and isLow. It uses str.format() to create a formatted “string” representing the series values and a timestamp, then it calls label.new() to draw a label that display the results at the high on each bar:


//@version=5 indicator("Labels on successive bars demo", "Inspecting multiple series", true, max_labels_count = 500) //@variable The number of bars in the calculation window. int lengthInput = input.int(50, "Length", 1) //@variable The highest `close` over `lengthInput` bars. float highestClose = ta.highest(close, lengthInput) //@variable The percent rank of the current `close` compared to previous values over `lengthInput` bars. float percentRank = ta.percentrank(close, lengthInput) //@variable The number of bars since the `close` was equal to the `highestClose`. int barsSinceHigh = ta.barssince(close == highestClose) //@variable Is `true` when the `percentRank` is 0, i.e., when the `close` is the lowest. bool isLow = percentRank == 0.0 //@variable A multi-line string representing the `time`, `highestClose`, `percentRank`, `barsSinceHigh`, and `isLow`. string debugString = str.format( "time (GMT): {0, time, yyyy-MM-dd'T'HH:mm:ss}\nhighestClose: {1, number, #.####} \npercentRank: {2, number, #.##}%\nbarsSinceHigh: {3, number, integer}\nisLow: {4}", time, highestClose, percentRank, barsSinceHigh, isLow ) //@variable Draws a label showing the `debugString` at each bar's `high`. label debugLabel = label.new(chart.point.now(high), debugString, textcolor = color.white)

While the above example allows one to inspect the results of the script’s series on any bar with a label drawing, consecutive drawings like these can clutter the chart, especially when viewing longer strings.

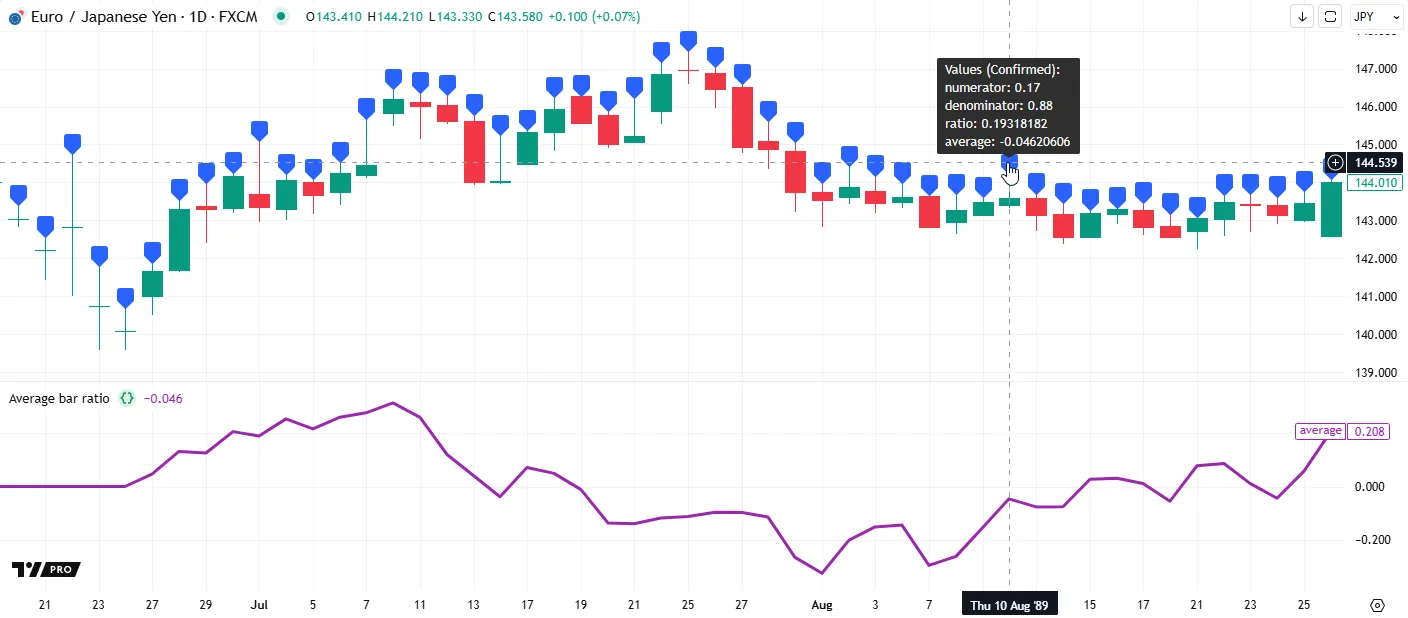

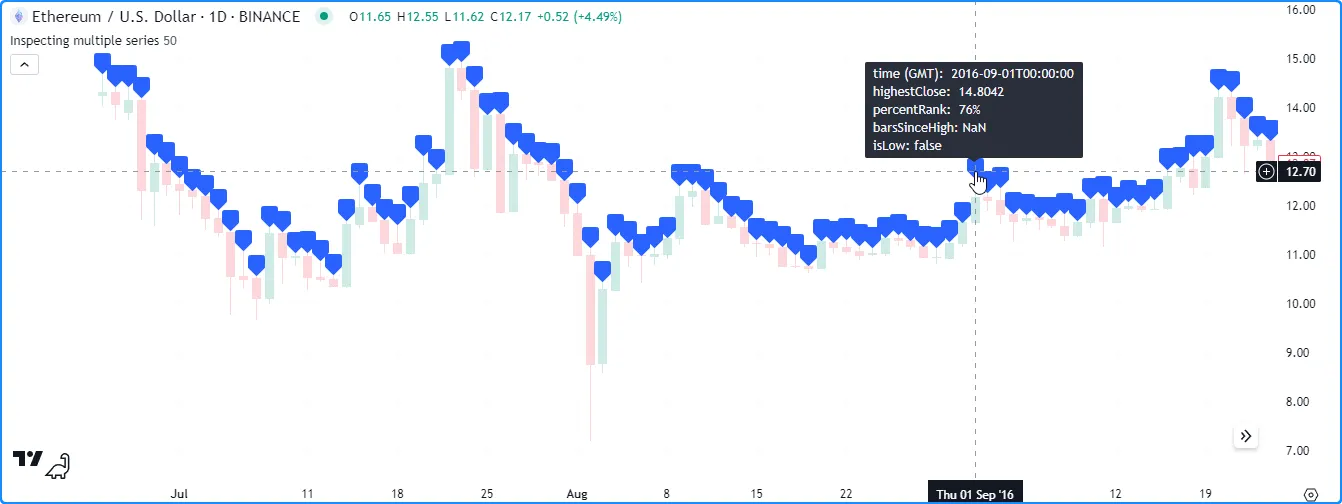

An alternative, more visually compact way to inspect successive bars’ values with labels is to utilize the tooltip property instead of the text property, as a label will only show its tooltip when the cursor hovers over it.

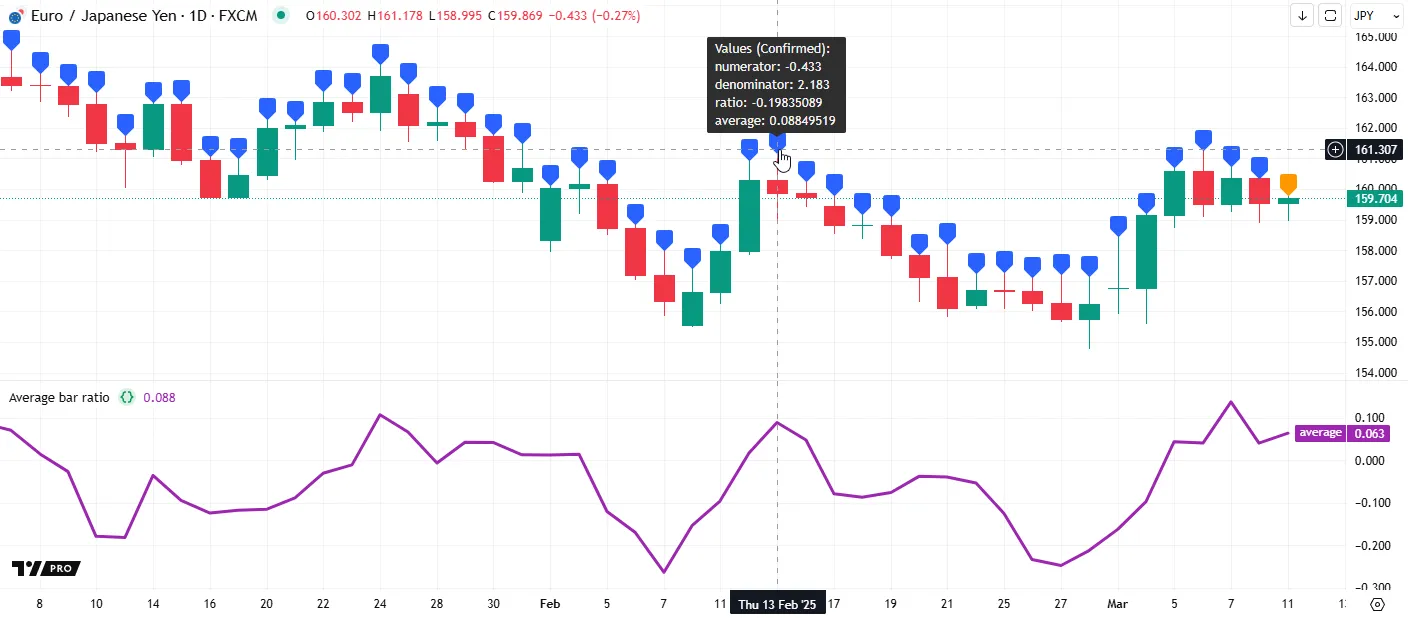

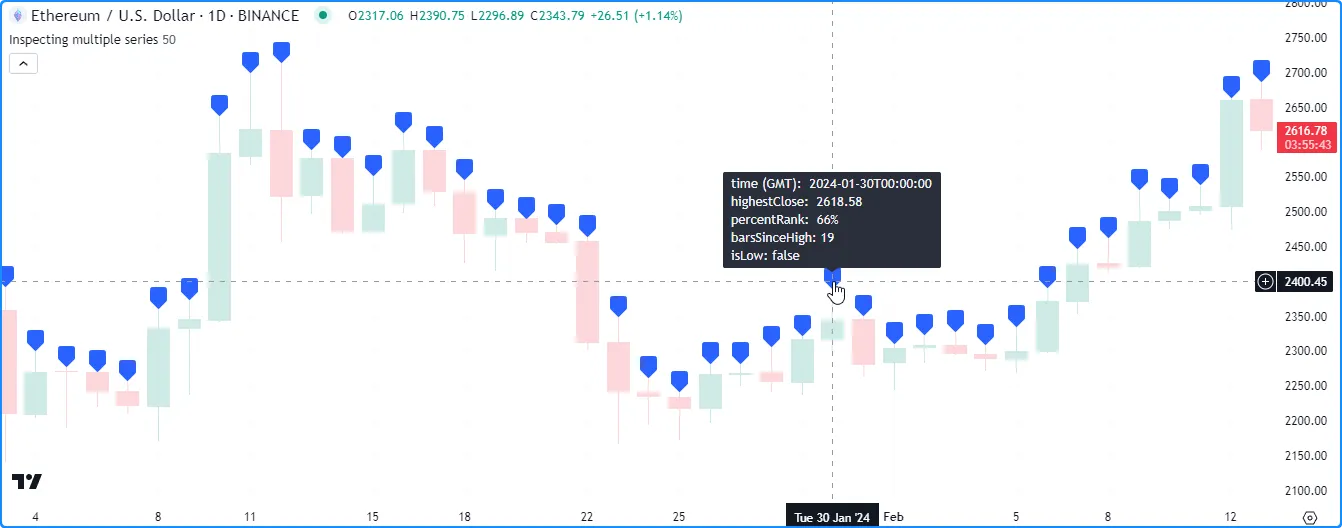

Below, we’ve modified the previous script by using the debugString as the tooltip argument instead of the text argument in the label.new() call. Now, we can view the results on specific bars without the extra noise:


//@version=5 indicator("Tooltips on successive bars demo", "Inspecting multiple series", true, max_labels_count = 500) //@variable The number of bars in the calculation window. int lengthInput = input.int(50, "Length", 1) //@variable The highest `close` over `lengthInput` bars. float highestClose = ta.highest(close, lengthInput) //@variable The percent rank of the current `close` compared to previous values over `lengthInput` bars. float percentRank = ta.percentrank(close, lengthInput) //@variable The number of bars since the `close` was equal to the `highestClose`. int barsSinceHigh = ta.barssince(close == highestClose) //@variable Is `true` when the `percentRank` is 0, i.e., when the `close` is the lowest. bool isLow = percentRank == 0.0 //@variable A multi-line string representing the `time`, `highestClose`, `percentRank`, `barsSinceHigh`, and `isLow`. string debugString = str.format( "time (GMT): {0, time, yyyy-MM-dd'T'HH:mm:ss}\nhighestClose: {1, number, #.####} \npercentRank: {2, number, #.##}%\nbarsSinceHigh: {3, number, integer}\nisLow: {4}", time, highestClose, percentRank, barsSinceHigh, isLow ) //@variable Draws a label showing the `debugString` in a tooltip at each bar's `high`. label debugLabel = label.new(chart.point.now(high), tooltip = debugString)

It’s important to note that a script can display up to 500 label drawings, meaning the above examples will only allow users to inspect the strings from the most recent 500 chart bars.

If a programmer wants to see the results from earlier chart bars, one approach is to create conditional logic that only allows drawings within a specific time range, e.g.:

if time >= startTime and time <= endTime <create_drawing_id>

If we use this structure in our previous example with chart.left_visible_bar_time and chart.right_visible_bar_time as the startTime and endTime values, the script will only create labels on visible chart bars and avoid drawing on others. With this logic, we can scroll to view labels on any chart bar, as long as there are up to max_labels_count bars in the visible range:


//@version=5 indicator("Tooltips on visible bars demo", "Inspecting multiple series", true, max_labels_count = 500) //@variable The number of bars in the calculation window. int lengthInput = input.int(50, "Length", 1) //@variable The highest `close` over `lengthInput` bars. float highestClose = ta.highest(close, lengthInput) //@variable The percent rank of the current `close` compared to previous values over `lengthInput` bars. float percentRank = ta.percentrank(close, lengthInput) //@variable The number of bars since the `close` was equal to the `highestClose`. int barsSinceHigh = ta.barssince(close == highestClose) //@variable Is `true` when the `percentRank` is 0, i.e., when the `close` is the lowest. bool isLow = percentRank == 0.0 //@variable A multi-line string representing the `time`, `highestClose`, `percentRank`, `barsSinceHigh`, and `isLow`. string debugString = str.format( "time (GMT): {0, time, yyyy-MM-dd'T'HH:mm:ss}\nhighestClose: {1, number, #.####} \npercentRank: {2, number, #.##}%\nbarsSinceHigh: {3, number, integer}\nisLow: {4}", time, highestClose, percentRank, barsSinceHigh, isLow ) if time >= chart.left_visible_bar_time and time <= chart.right_visible_bar_time //@variable Draws a label showing the `debugString` in a tooltip at each visible bar's `high`. label debugLabel = label.new(chart.point.now(high), tooltip = debugString)

Note that:

  • If the visible chart contains more bars than allowed drawings, the script will only show results on the latest bars in the visible range. For best results with this technique, zoom on the chart to keep the visible range limited to the allowed number of drawings.

At the end of the chart

A frequent approach to debugging a script’s strings with labels is to display them at the end of the chart, namely when the strings do not change or when only a specific bar’s values require analysis.

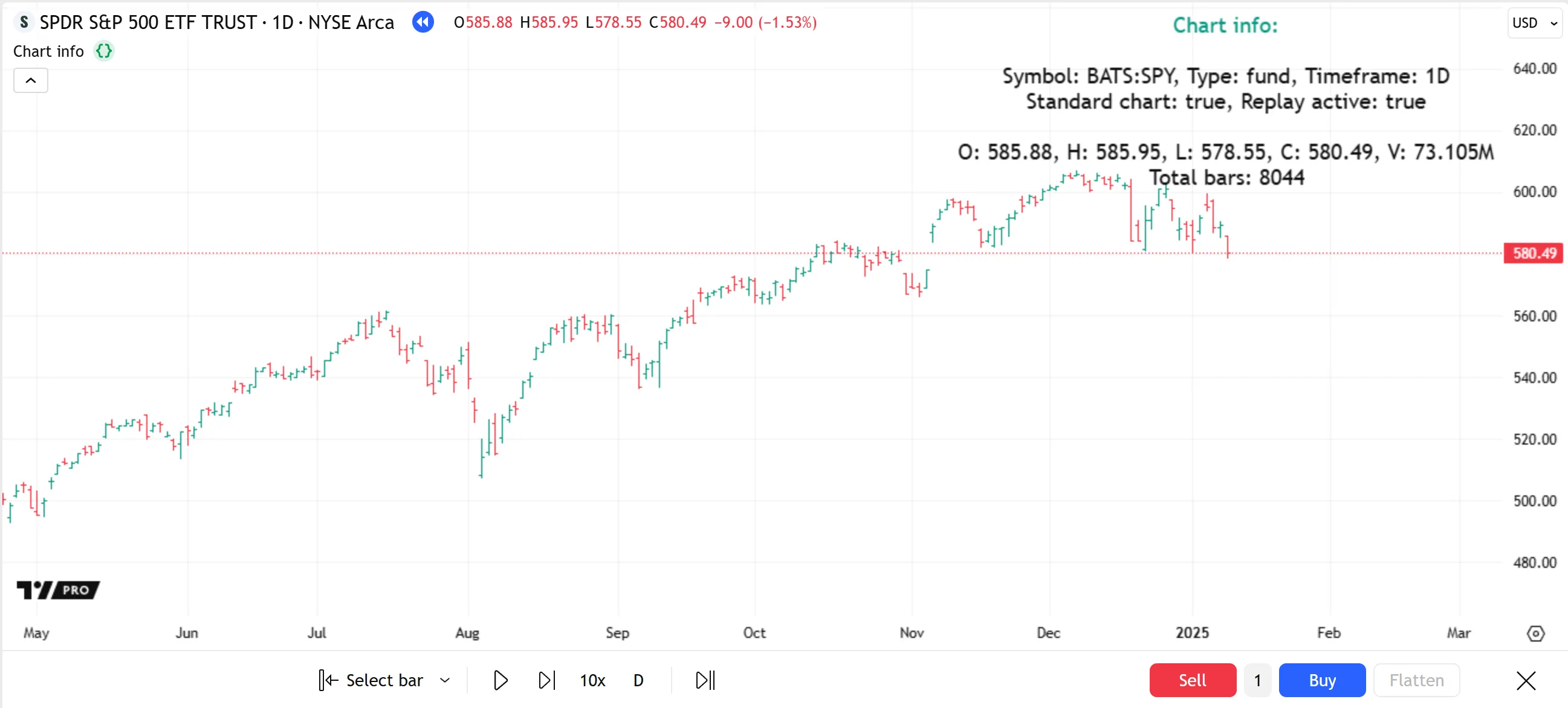

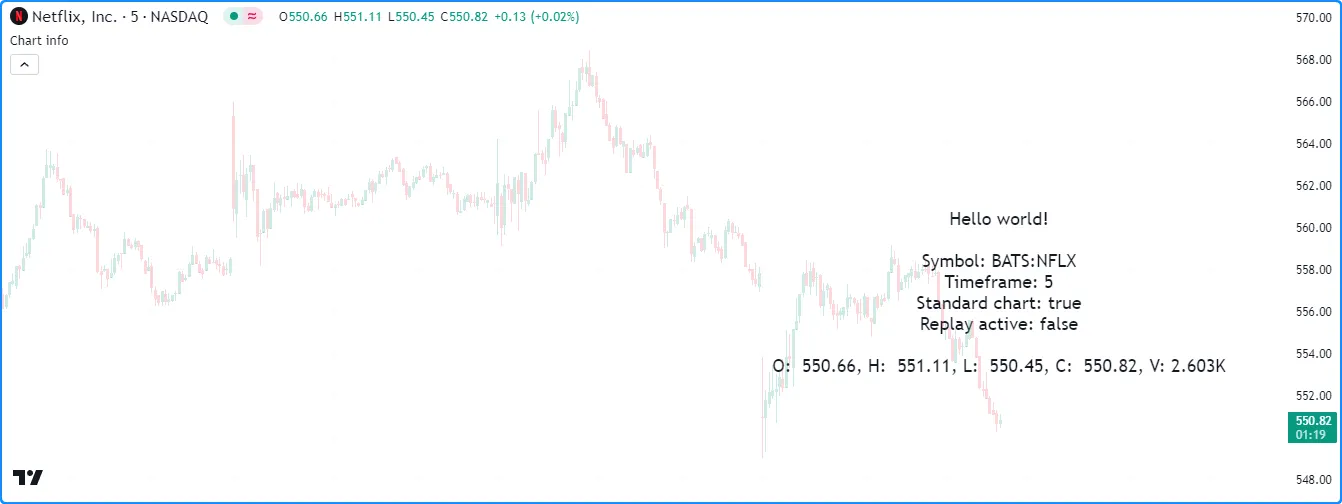

The script below contains a user-defined printLabel() function that draws a label at the last available time on the chart, regardless of when the script calls it. We’ve used the function in this example to display a “Hello world!” string, some basic chart information, and the data feed’s current OHLCV values:


//@version=5 indicator("Labels at the end of the chart demo", "Chart info", true) //@function Draws a label to print the `txt` at the last available time on the chart. // When called from the global scope, the label updates its text using the specified `txt` on every bar. //@param txt The string to display on the chart. //@param price The optional y-axis location of the label. If not specified, draws the label above the last chart bar. //@returns The resulting label ID. printLabel(string txt, float price = na) => int labelTime = math.max(last_bar_time, chart.right_visible_bar_time) var label result = label.new( labelTime, na, txt, xloc.bar_time, na(price) ? yloc.abovebar : yloc.price, na, label.style_none, chart.fg_color, size.large ) label.set_text(result, txt) label.set_y(result, price) result //@variable A formatted string containing information about the current chart. string chartInfo = str.format( "Symbol: {0}:{1}\nTimeframe: {2}\nStandard chart: {3}\nReplay active: {4}", syminfo.prefix, syminfo.ticker, timeframe.period, chart.is_standard, str.contains(syminfo.tickerid, "replay") ) //@variable A formatted string containing OHLCV values. string ohlcvInfo = str.format( "O: {0, number, #.#####}, H: {1, number, #.#####}, L: {2, number, #.#####}, C: {3, number, #.#####}, V: {4}", open, high, low, close, str.tostring(volume, format.volume) ) // Print "Hello world!" and the `chartInfo` at the end of the chart on the first bar. if barstate.isfirst printLabel("Hello world!" + "\n\n\n\n\n\n\n") printLabel(chartInfo + "\n\n") // Print current `ohlcvInfo` at the end of the chart, updating the displayed text as new data comes in. printLabel(ohlcvInfo)

Note that:

  • The printLabel() function sets the x-coordinate of the drawn label using the max of the last_bar_time and the chart.right_visible_bar_time to ensure it always shows the results at the last available bar.
  • When called from the global scope, the function creates a label with text and y properties that update on every bar.
  • We’ve made three calls to the function and added linefeed characters (\n) to demonstrate that users can superimpose the results from multiple labels at the end of the chart if the strings have adequate line spacing.

Using tables

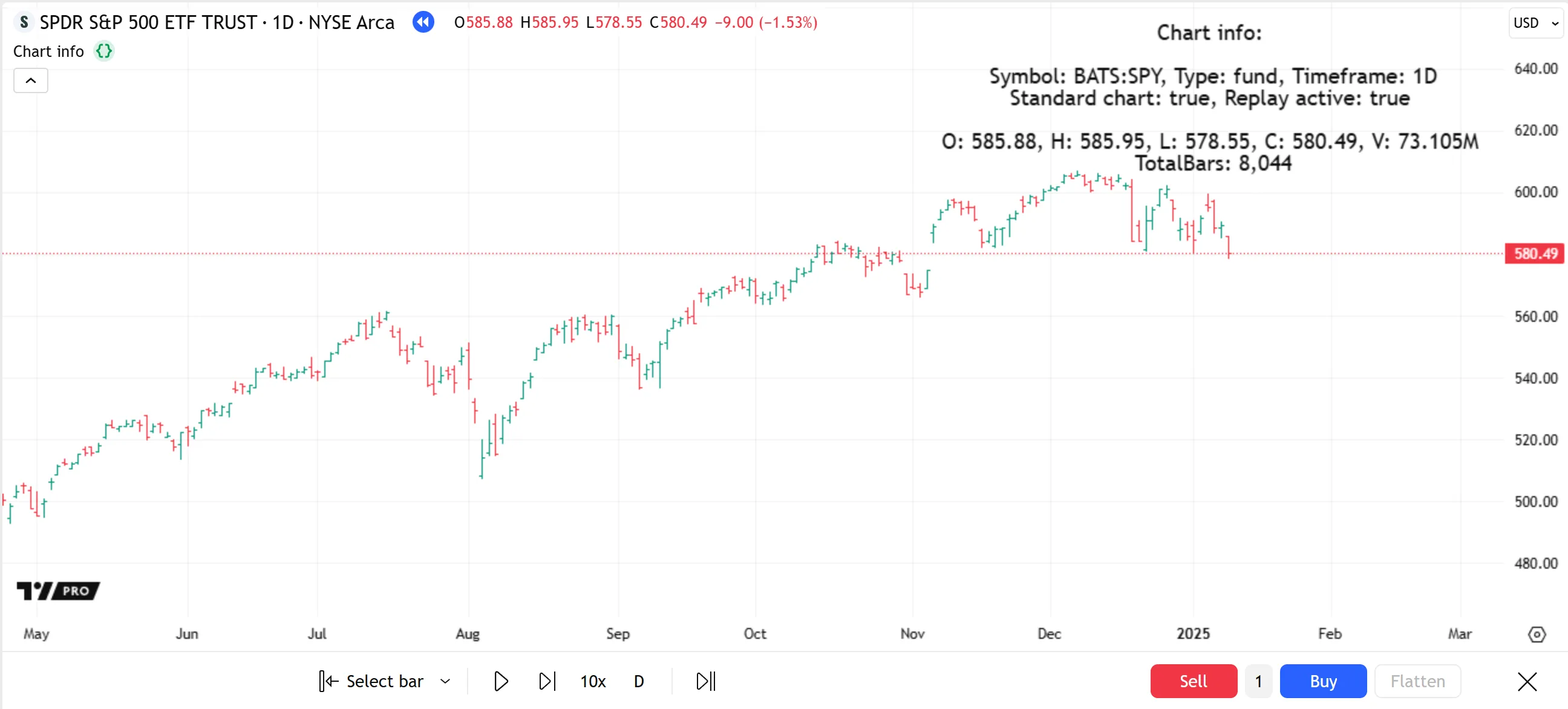

Tables display strings within cells arranged in columns and rows at fixed locations relative to a chart pane’s visual space. They can serve as versatile chart-based debugging tools, as unlike labels, they allow programmers to inspect one or more “series strings” in an organized visual structure agnostic to the chart’s scale or bar index.

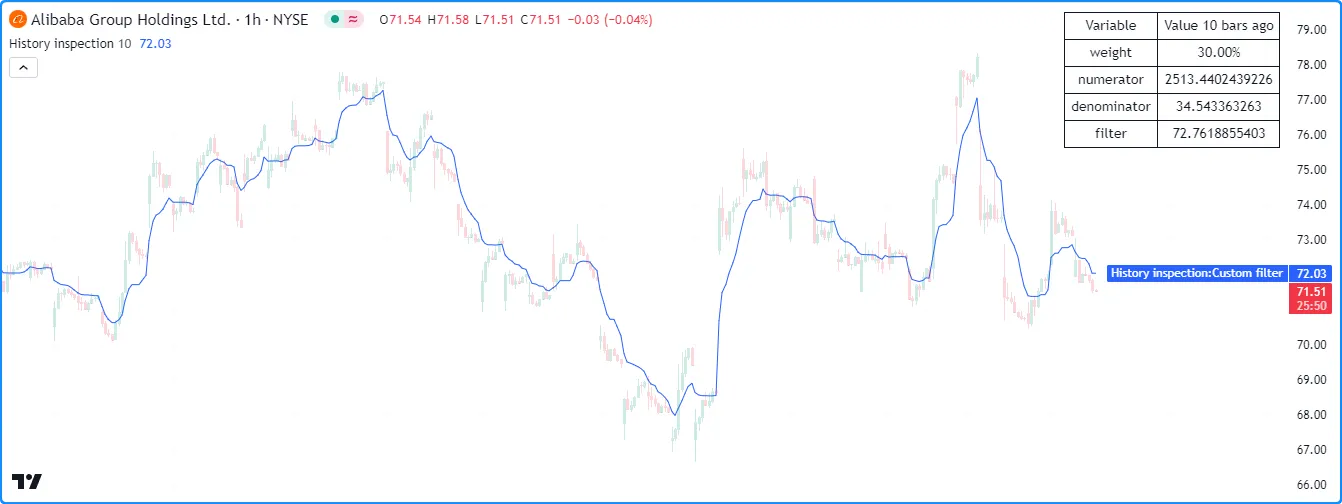

For example, this script calculates a custom filter whose result is the ratio of the EMA of weighted close prices to the EMA of the weight series. For inspection of the variables used in the calculation, it creates a table instance on the first bar, initializes the table’s cells on the last historical bar, then updates necessary cells with “string” representations of the values from barsBack bars ago on the latest chart bar:


//@version=5 indicator("Debugging with tables demo", "History inspection", true) //@variable The number of bars back in the chart's history to inspect. int barsBack = input.int(10, "Bars back", 0, 4999) //@variable The percent rank of `volume` over 10 bars. float weight = ta.percentrank(volume, 10) //@variable The 10-bar EMA of `weight * close` values. float numerator = ta.ema(weight * close, 10) //@variable The 10-bar EMA of `weight` values. float denominator = ta.ema(weight, 10) //@variable The ratio of the `numerator` to the `denominator`. float filter = numerator / denominator // Plot the `filter`. plot(filter, "Custom filter") //@variable The color of the frame, border, and text in the `debugTable`. color tableColor = chart.fg_color //@variable A table that contains "string" representations of variable names and values on the latest chart bar. var table debugTable = table.new( position.top_right, 2, 5, frame_color = tableColor, frame_width = 1, border_color = tableColor, border_width = 1 ) // Initialize cells on the last confirmed historical bar. if barstate.islastconfirmedhistory table.cell(debugTable, 0, 0, "Variable", text_color = tableColor) table.cell(debugTable, 1, 0, str.format("Value {0, number, integer} bars ago", barsBack), text_color = tableColor) table.cell(debugTable, 0, 1, "weight", text_color = tableColor) table.cell(debugTable, 1, 1, "", text_color = tableColor) table.cell(debugTable, 0, 2, "numerator", text_color = tableColor) table.cell(debugTable, 1, 2, "", text_color = tableColor) table.cell(debugTable, 0, 3, "denominator", text_color = tableColor) table.cell(debugTable, 1, 3, "", text_color = tableColor) table.cell(debugTable, 0, 4, "filter", text_color = tableColor) table.cell(debugTable, 1, 4, "", text_color = tableColor) // Update value cells on the last available bar. if barstate.islast table.cell_set_text(debugTable, 1, 1, str.tostring(weight[barsBack], format.percent)) table.cell_set_text(debugTable, 1, 2, str.tostring(numerator[barsBack])) table.cell_set_text(debugTable, 1, 3, str.tostring(denominator[barsBack])) table.cell_set_text(debugTable, 1, 4, str.tostring(filter[barsBack]))

Note that:

  • The script uses the var keyword to specify that the table assigned to the debugTable variable on the first bar persists throughout the script’s execution.
  • This script modifies the table within two if structures. The first structure initializes the cells with table.cell() only on the last confirmed historical bar (barstate.islastconfirmedhistory). The second structure updates the text properties of relevant cells with string representations of our variables’ values using table.cell_set_text() calls on the latest available bar (barstate.islast).

It’s important to note that although tables can provide debugging utility, namely when working with multiple series or creating on-chart logs, they carry a higher computational cost than other techniques discussed on this page and may require more code. Additionally, unlike labels, one can only view a table’s state from the latest script execution. We therefore recommend using them wisely and sparingly while debugging, opting for simplified approaches where possible. For more information about using table objects, see the Tables page.

Pine Logs

Pine Logs are interactive messages that scripts can output at specific points in their execution. They provide a powerful way for programmers to inspect a script’s data, conditions, and execution flow with minimal code.

Unlike the other tools discussed on this page, Pine Logs have a deliberate design for in-depth script debugging. Scripts do not display Pine Logs on the chart or in the Data Window. Instead, they print messages with timestamps in the dedicated Pine Logs pane, which provides specialized navigation features and filtering options.

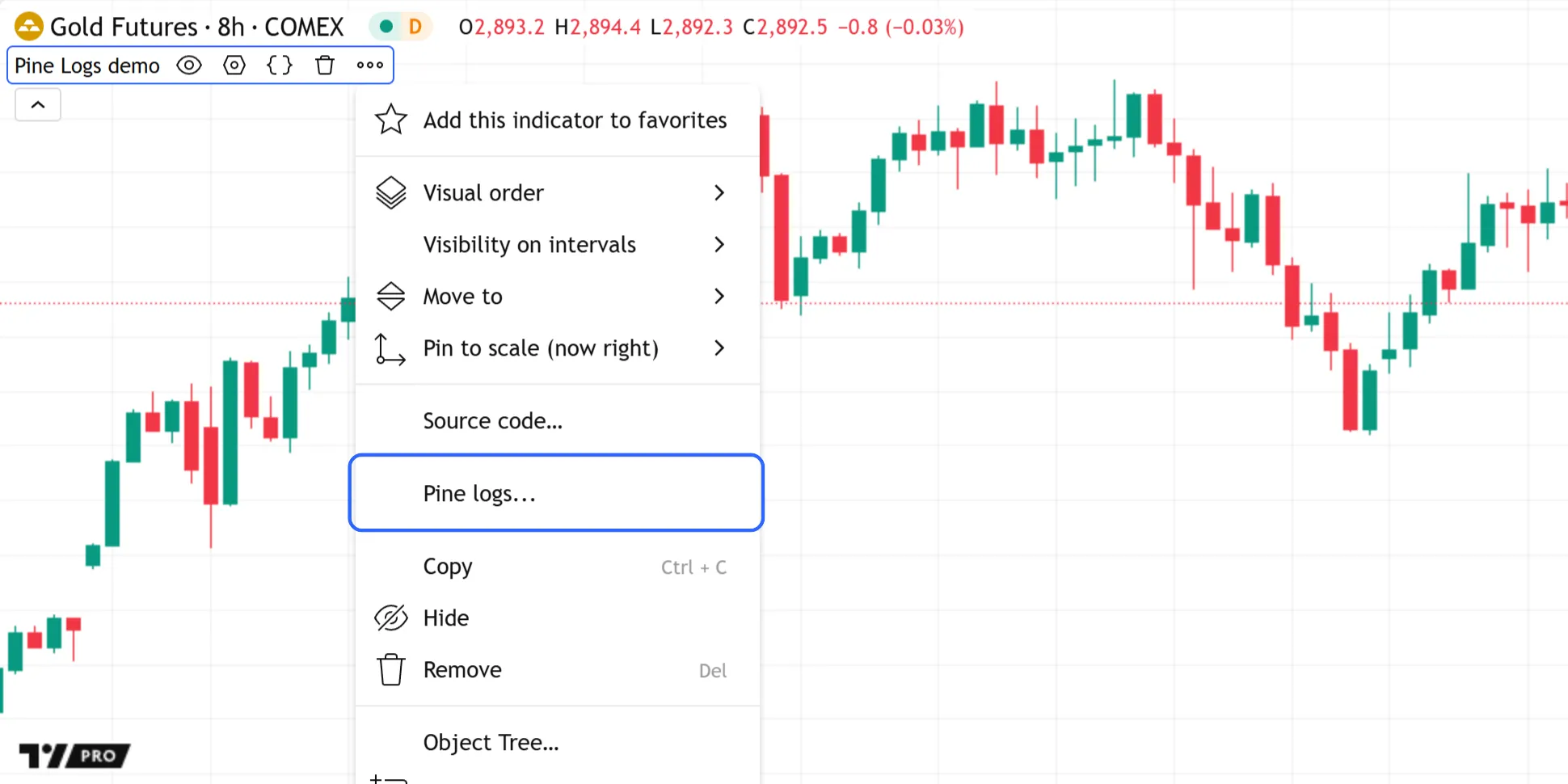

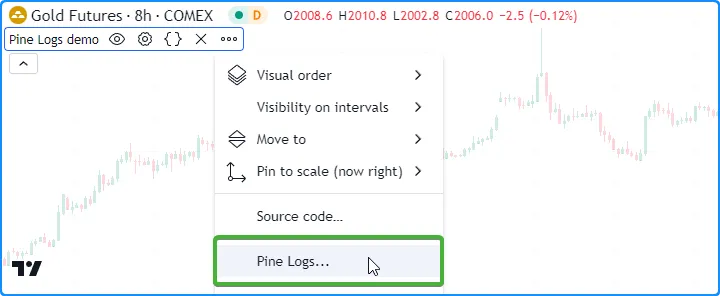

To access the Pine Logs pane, select “Pine Logs…” from the Editor’s “More” menu or from the “More” menu of a script loaded on the chart that uses log.*() functions:


Creating logs

Scripts can create logs by calling the functions in the log.*() namespace.

All log.*() functions have the following signatures:

log.*(message) → void
log.*(formatString, arg0, arg1, ...) → void

The first overload logs a specified message in the Pine Logs pane. The second overload is similar to str.format(), as it logs a formatted message based on the formatString and the additional arguments supplied in the call.

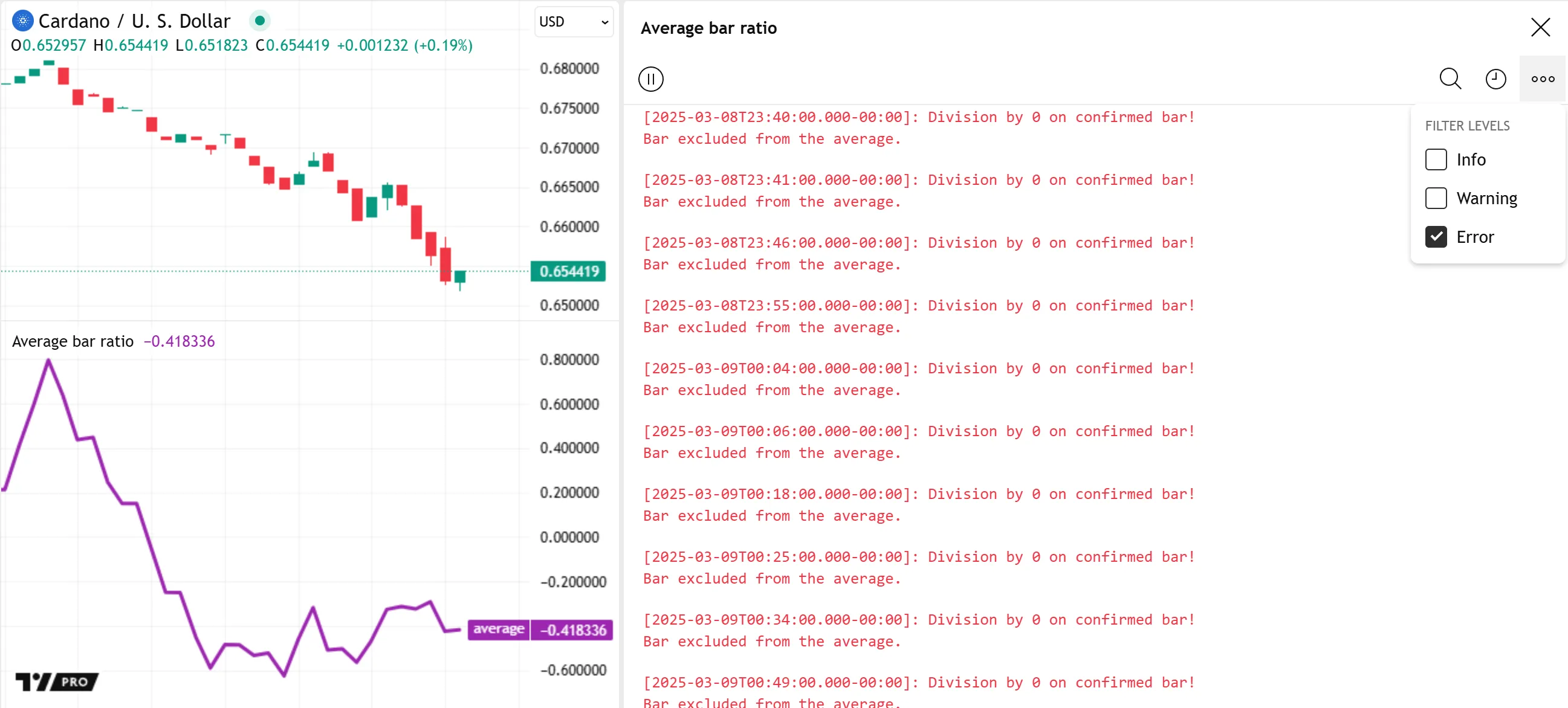

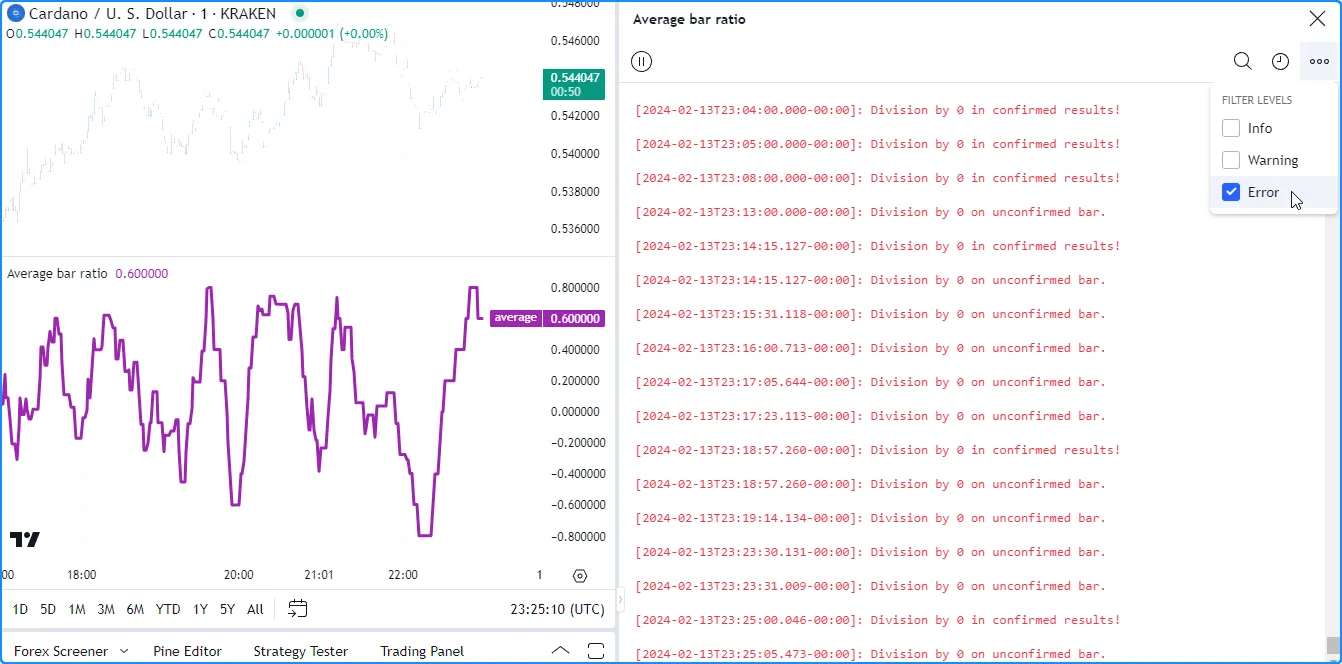

Each log.*() function has a different debug level, allowing programmers to categorize and filter results shown in the pane:

  • The log.info() function logs an entry with the “info” level that appears in the pane with gray text.
  • The log.warning() function logs an entry with the “warning” level that appears in the pane with orange text.
  • The log.error() function logs an entry with the “error” level that appears in the pane with red text.

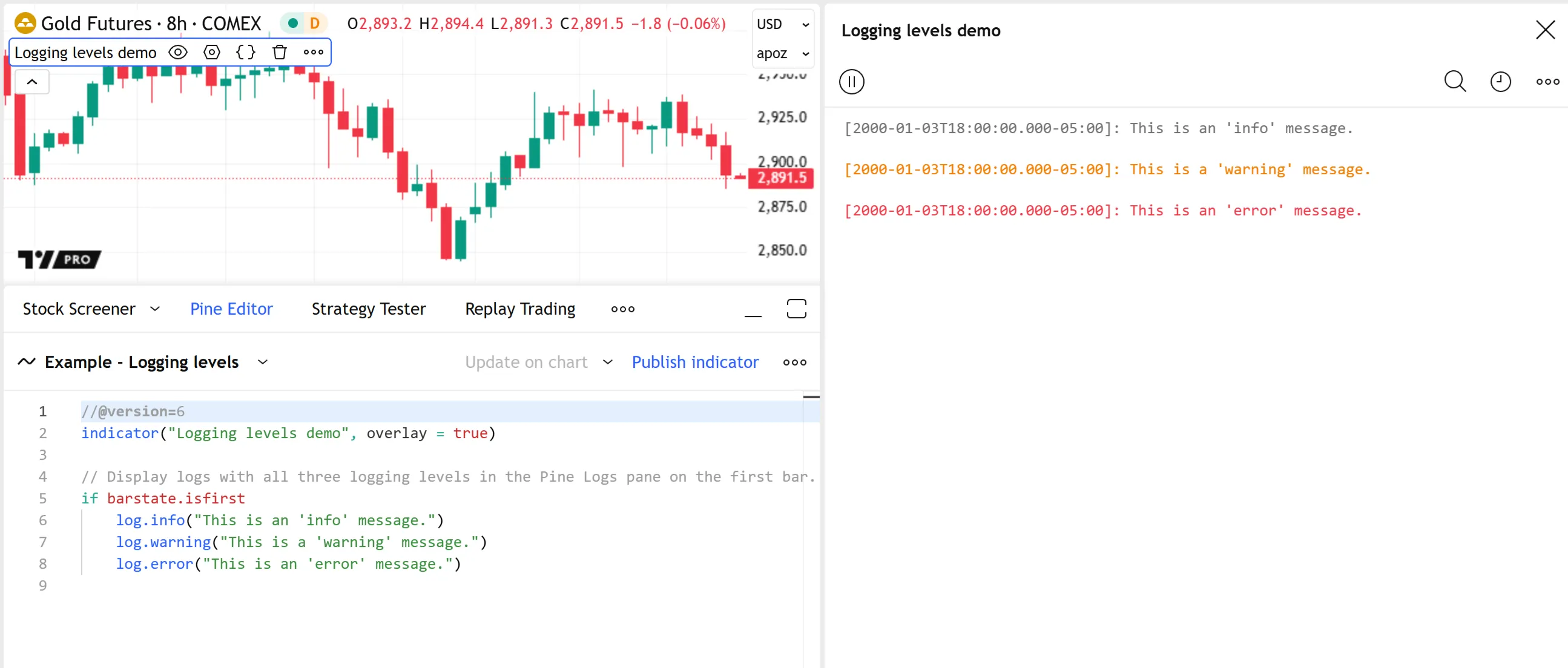

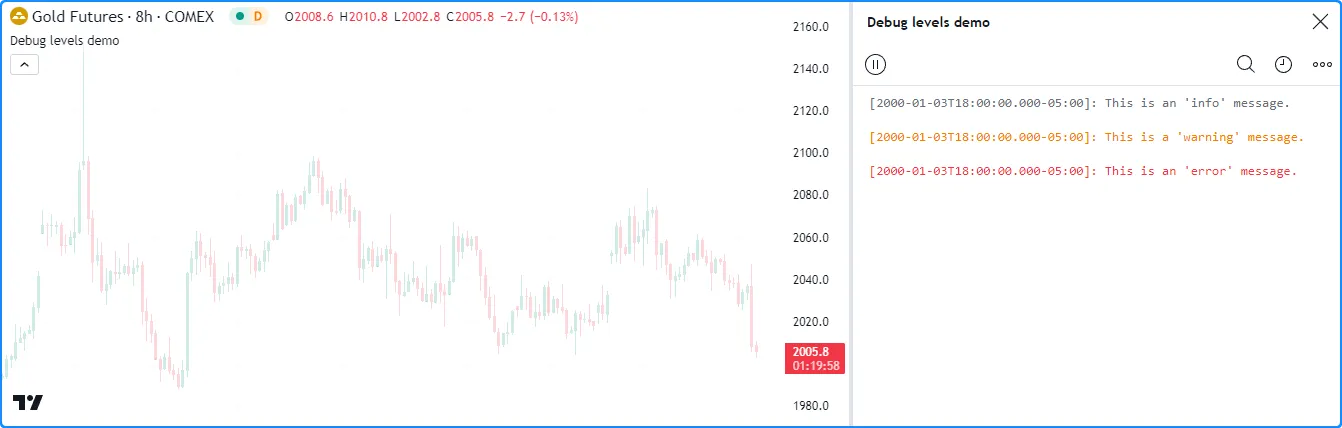

This code demonstrates the difference between all three log.*() functions. It calls log.info(), log.warning(), and log.error() on the first available bar:


//@version=5 indicator("Debug levels demo", overlay = true) if barstate.isfirst log.info("This is an 'info' message.") log.warning("This is a 'warning' message.") log.error("This is an 'error' message.")

Pine Logs can execute anywhere within a script’s execution. They allow programmers to track information from historical bars and monitor how their scripts behave on realtime, unconfirmed bars. When executing on historical bars, scripts generate a new message once for each log.*() call on a bar. On realtime bars, calls to log.*() functions can create new entries on each new tick.

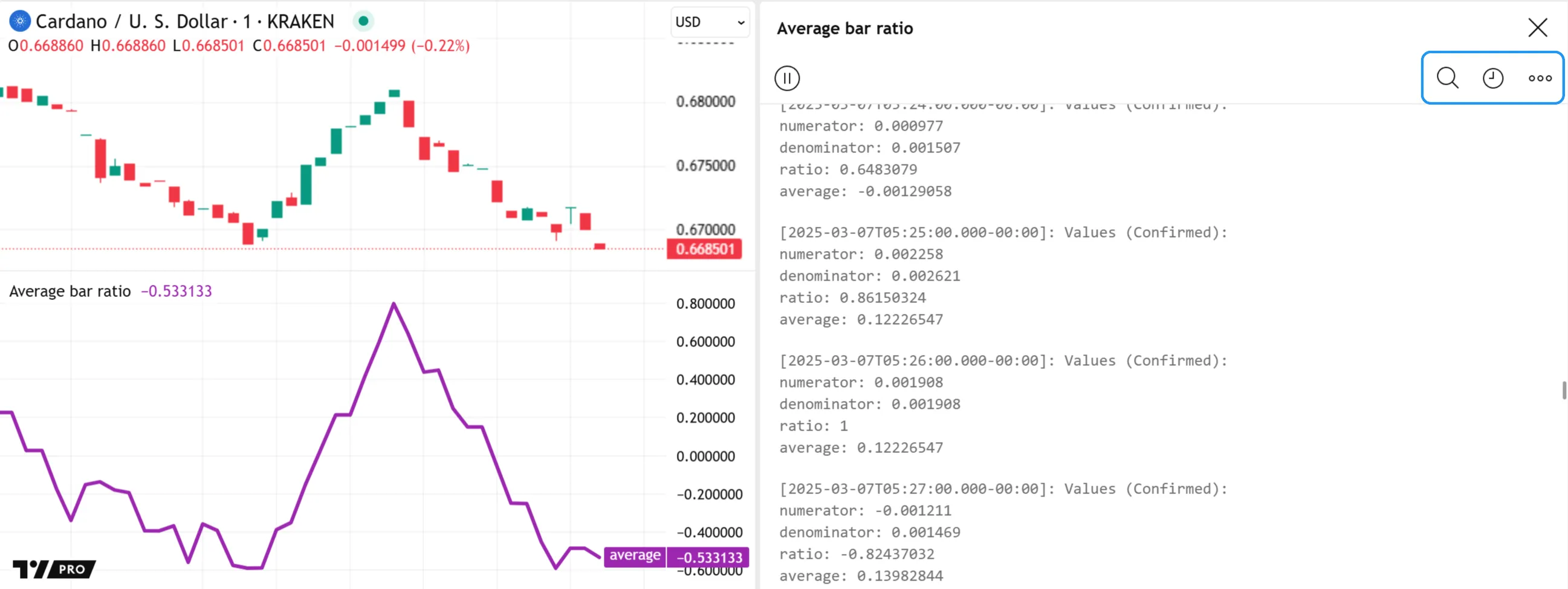

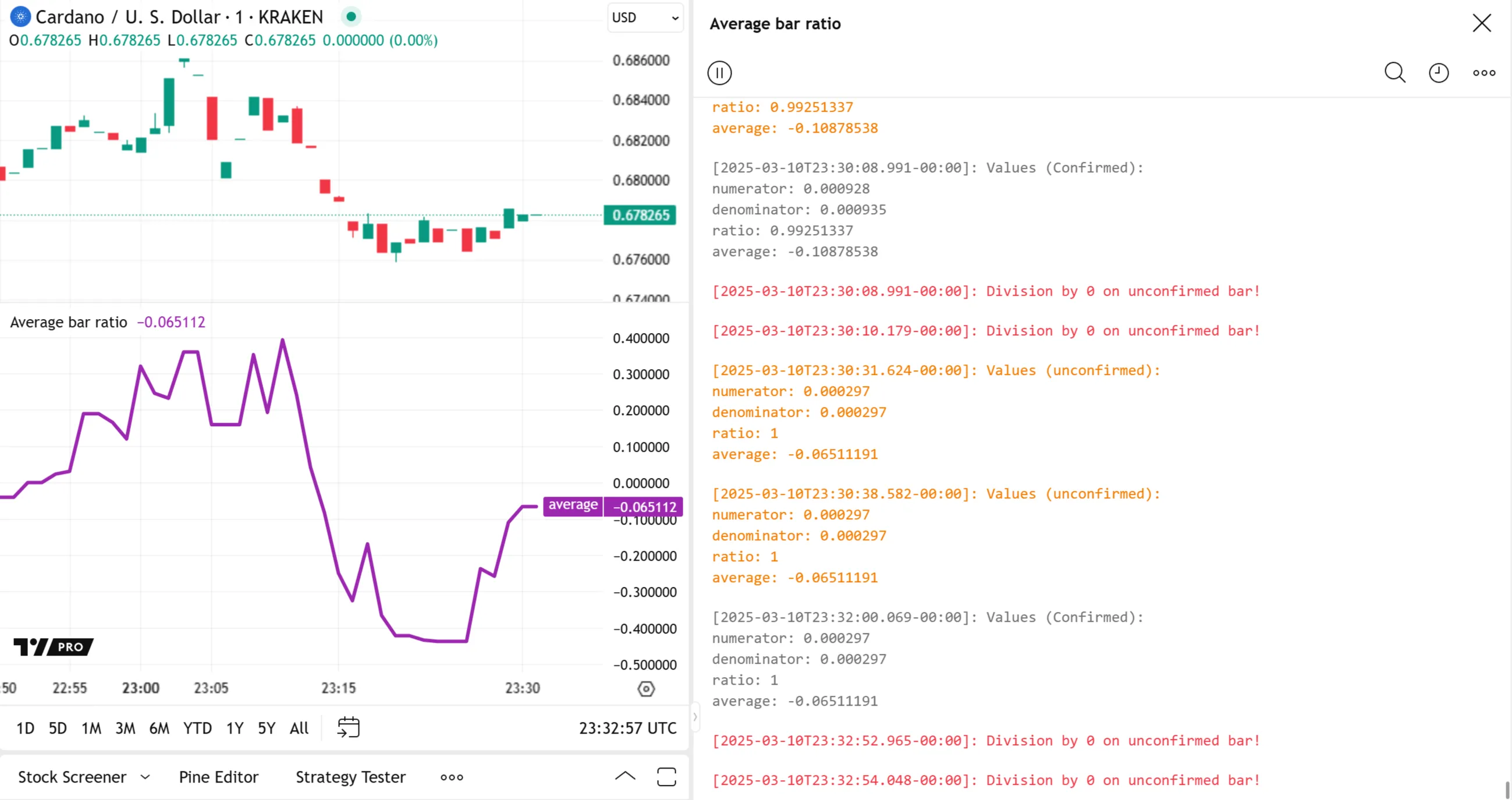

For example, this script calculates the average ratio between each bar’s close - open value to its high - low range. When the denominator is nonzero, the script calls log.info() to print the values of the calculation’s variables on confirmed bars and log.warning() to print the values on unconfirmed bars. Otherwise, it uses log.error() to indicate that division by zero occurred, as such cases can affect the average result:


//@version=5 indicator("Logging historical and realtime data demo", "Average bar ratio") //@variable The current bar's change from the `open` to `close`. float numerator = close - open //@variable The current bar's `low` to `high` range. float denominator = high - low //@variable The ratio of the bar's open-to-close range to its full range. float ratio = numerator / denominator //@variable The average `ratio` over 10 non-na values. float average = ta.sma(ratio, 10) // Plot the `average`. plot(average, "average", color.purple, 3) if barstate.isconfirmed // Log a division by zero error if the `denominator` is 0. if denominator == 0.0 log.error("Division by 0 in confirmed results!") // Otherwise, log the confirmed values. else log.info( "Values (confirmed):\nnumerator: {1, number, #.########}\ndenominator: {2, number, #.########} \nratio: {0, number, #.########}\naverage: {3, number, #.########}", ratio, numerator, denominator, average ) else // Log a division by zero error if the `denominator` is 0. if denominator == 0.0 log.error("Division by 0 on unconfirmed bar.") // Otherwise, log the unconfirmed values. else log.warning( "Values (unconfirmed):\nnumerator: {1, number, #.########}\ndenominator: {2, number, #.########} \nratio: {0, number, #.########}\naverage: {3, number, #.########}", ratio, numerator, denominator, average )

Note that:

  • Pine Logs do not roll back on each tick in an unconfirmed bar, meaning the results for those ticks show in the pane until the script restarts its execution. To only log messages on confirmed bars, use barstate.isconfirmed in the conditions that trigger a log.*() call.
  • When logging on unconfirmed bars, we recommend ensuring those logs contain unique information or use different debug levels so you can filter the results as needed.
  • The Pine Logs pane will show up to the most recent 10,000 entries for historical bars. If a script generates more than 10,000 logs on historical bars and a programmer needs to view earlier entries, they can use conditional logic to limit log.*() calls to specific occurrences. See this section for an example that limits log generation to a user-specified time range.

Inspecting logs

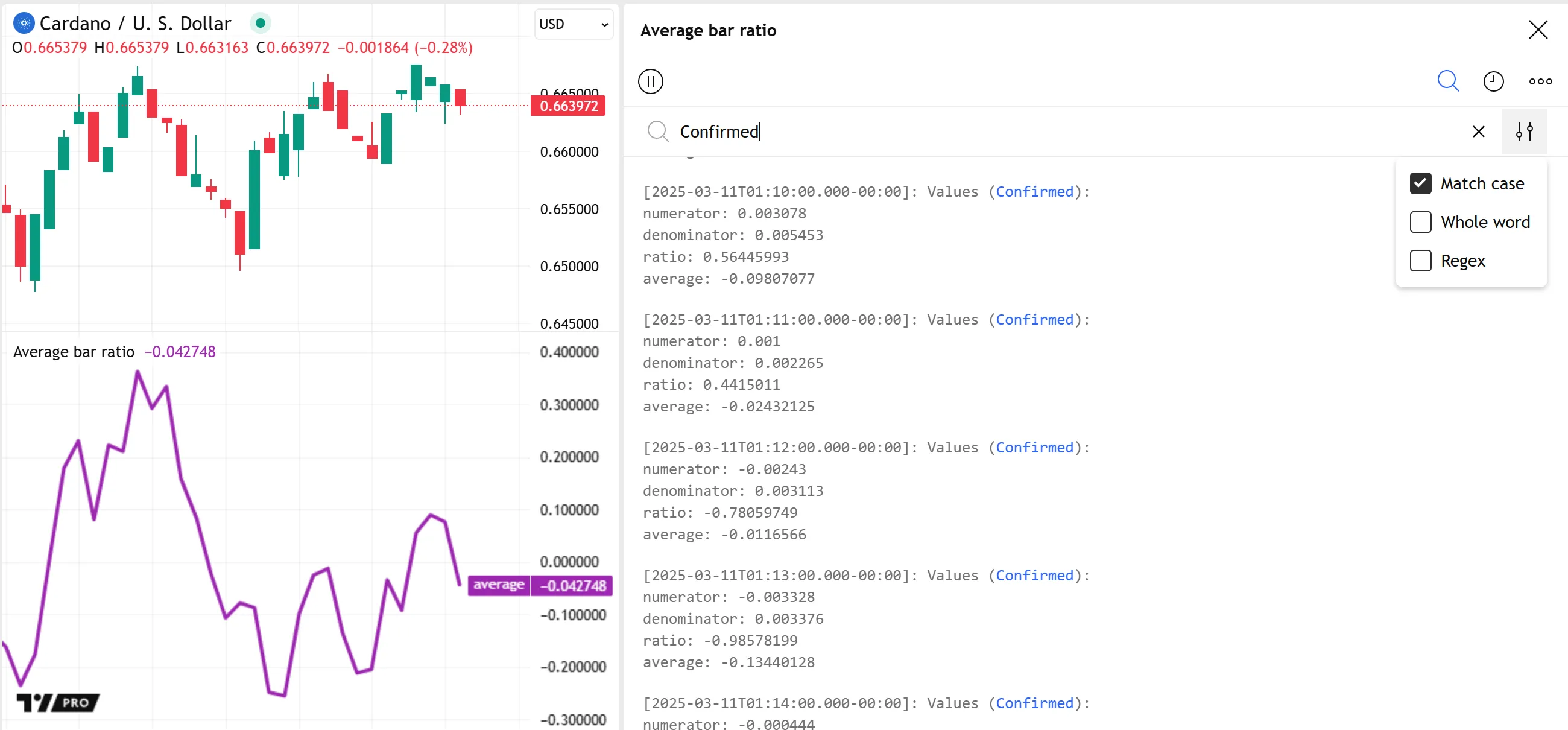

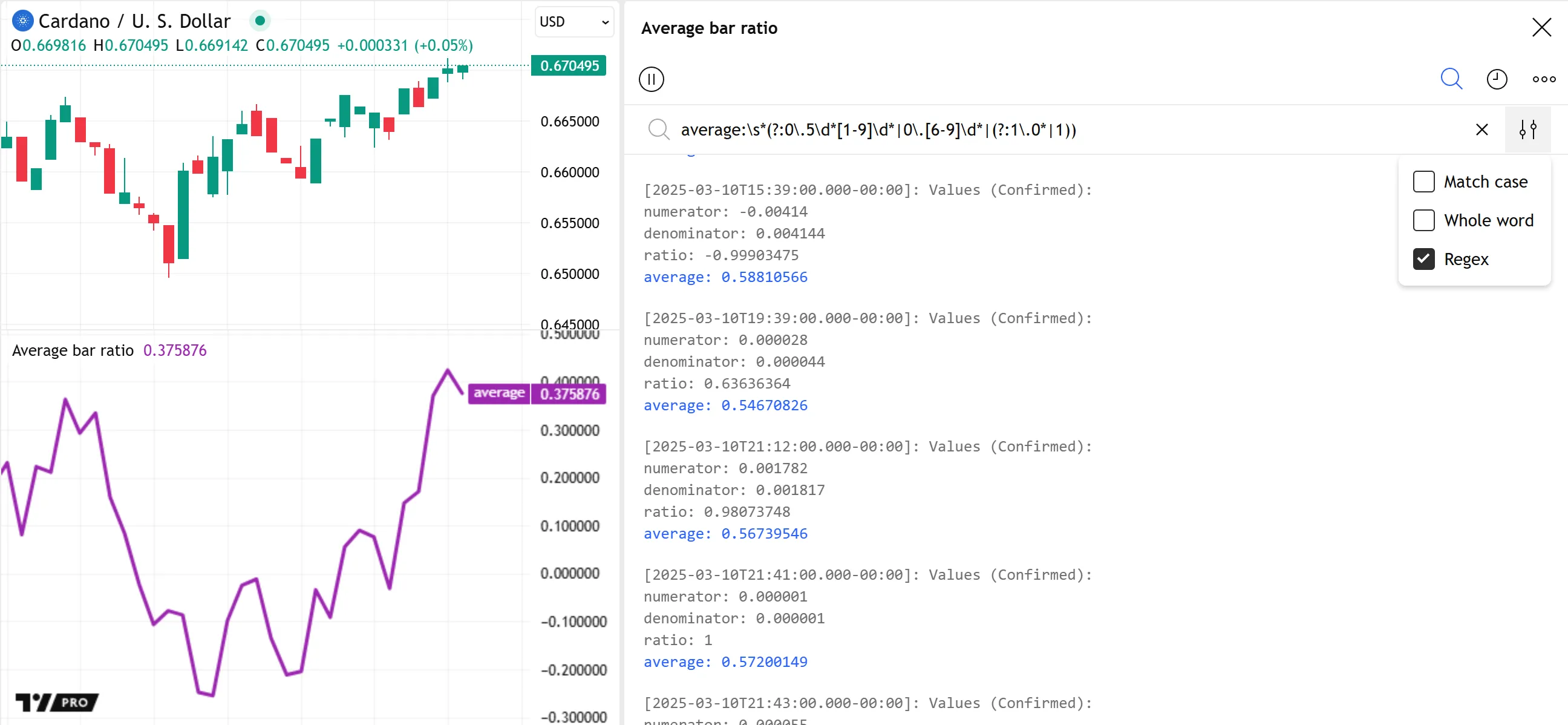

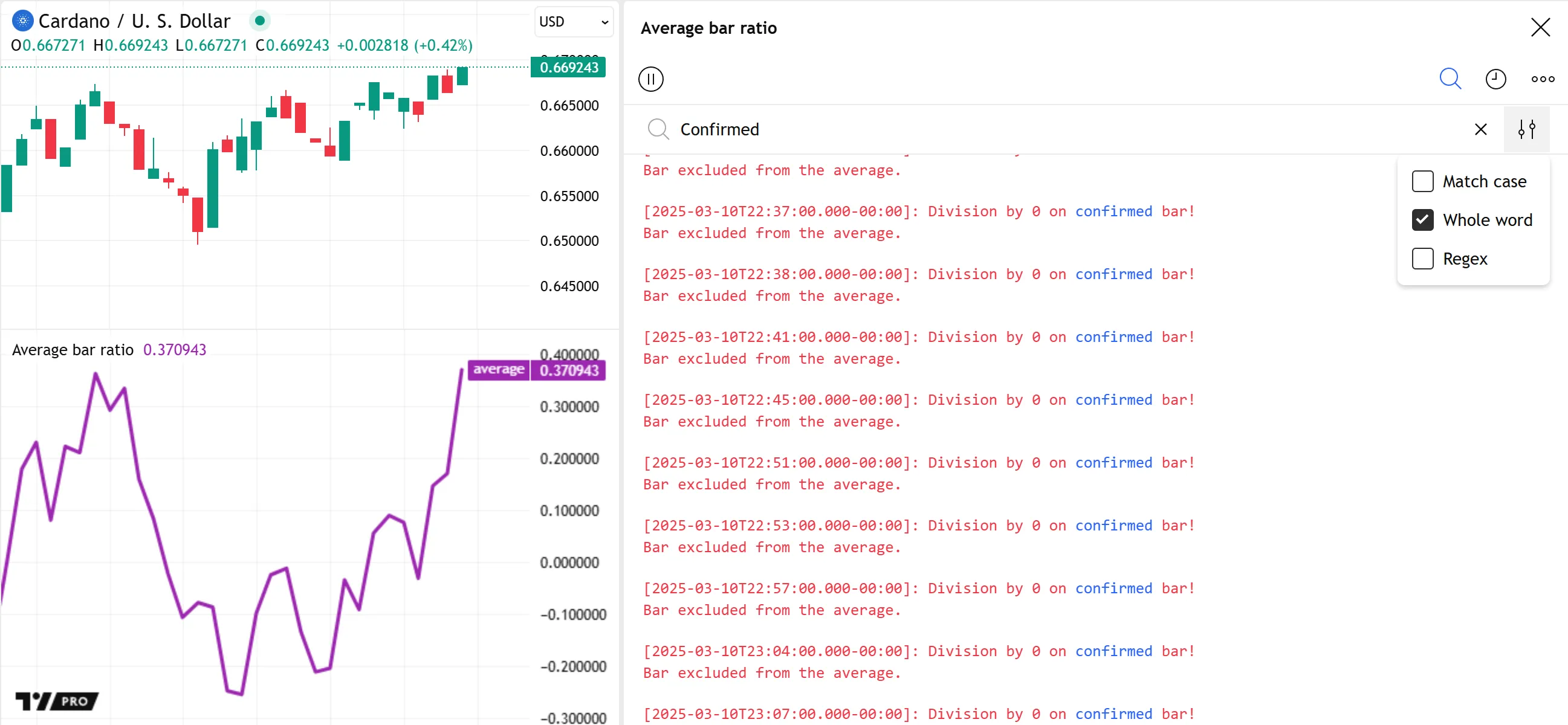

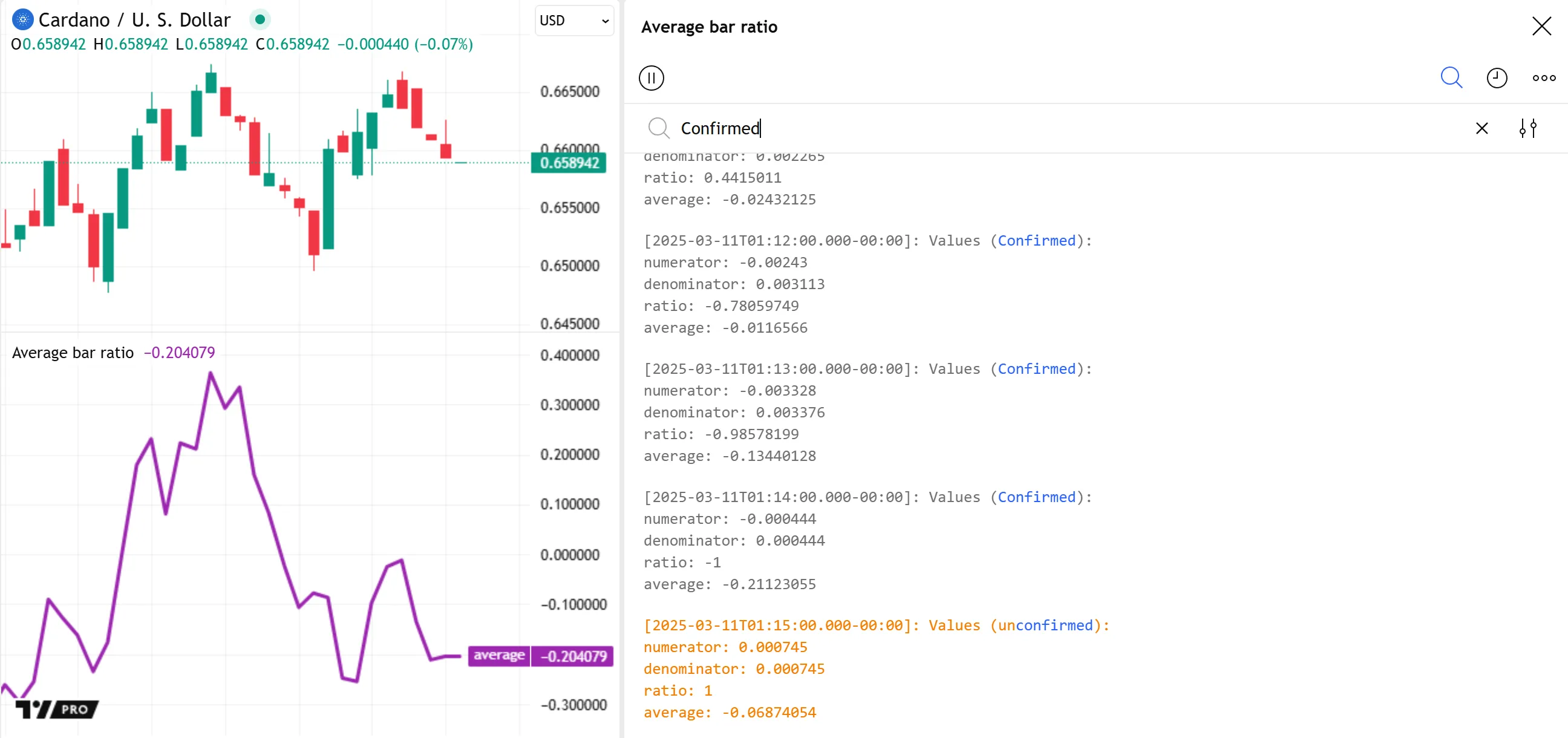

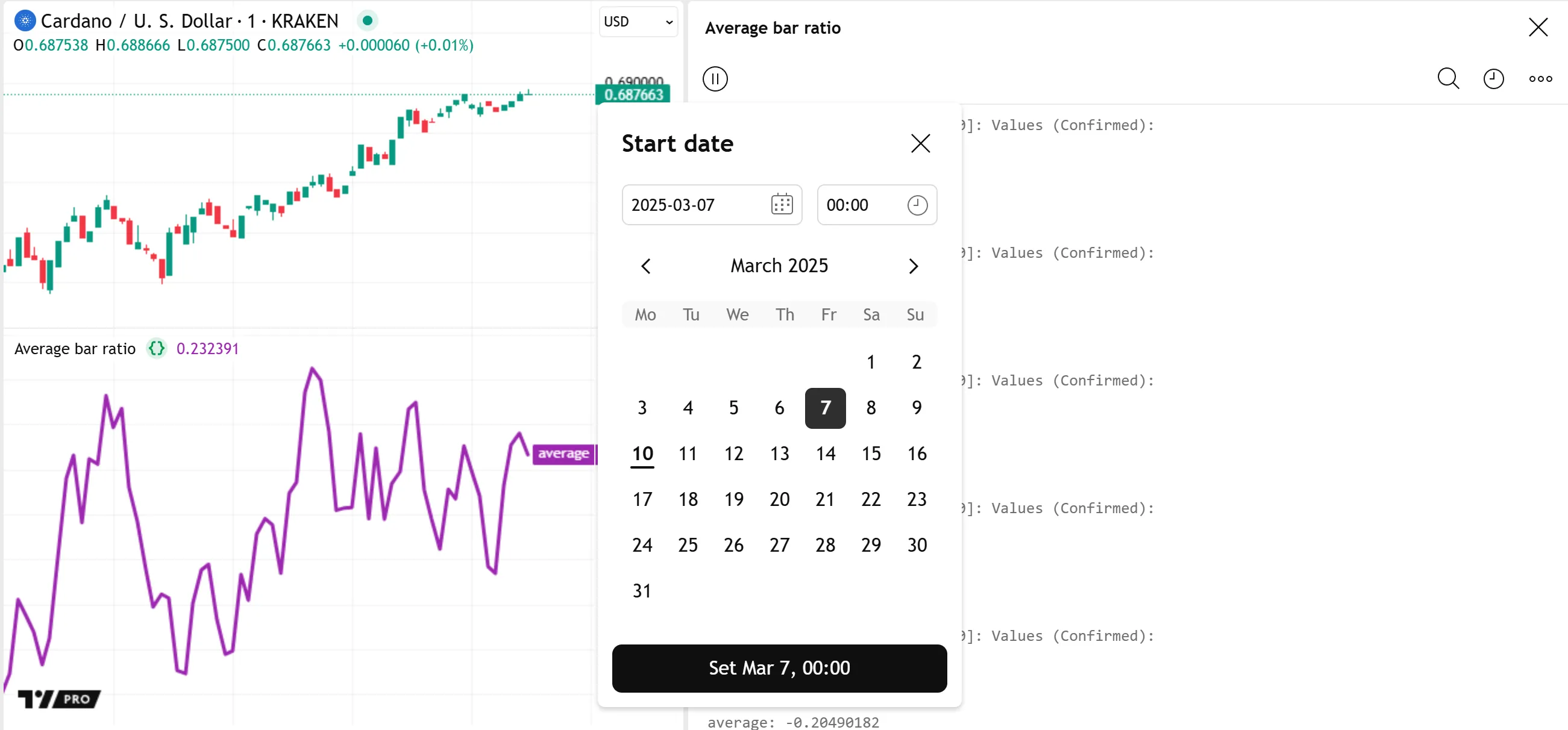

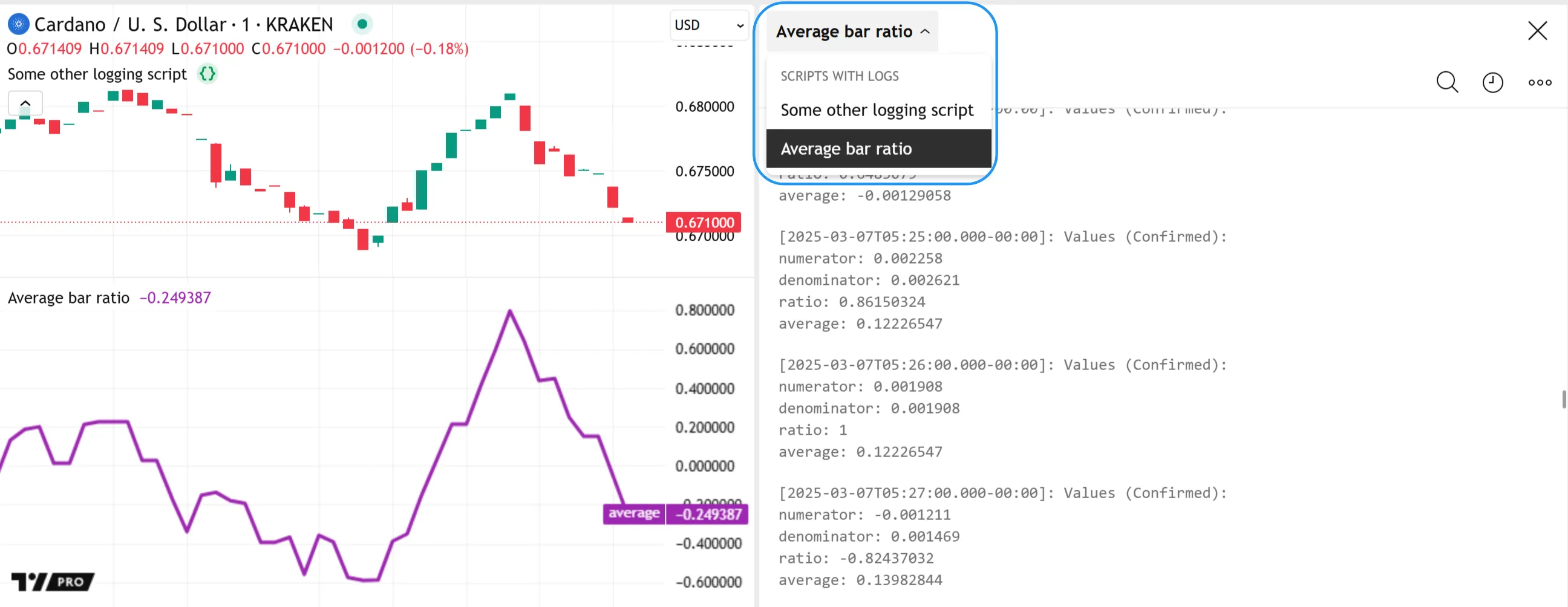

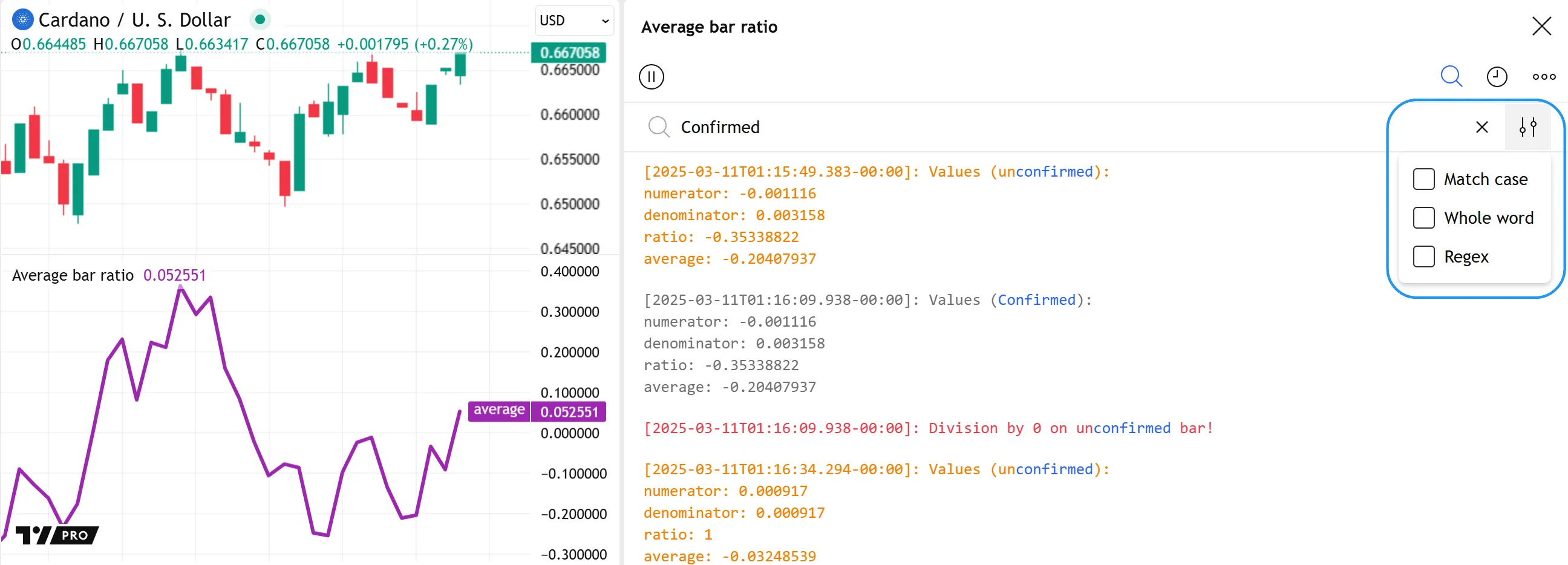

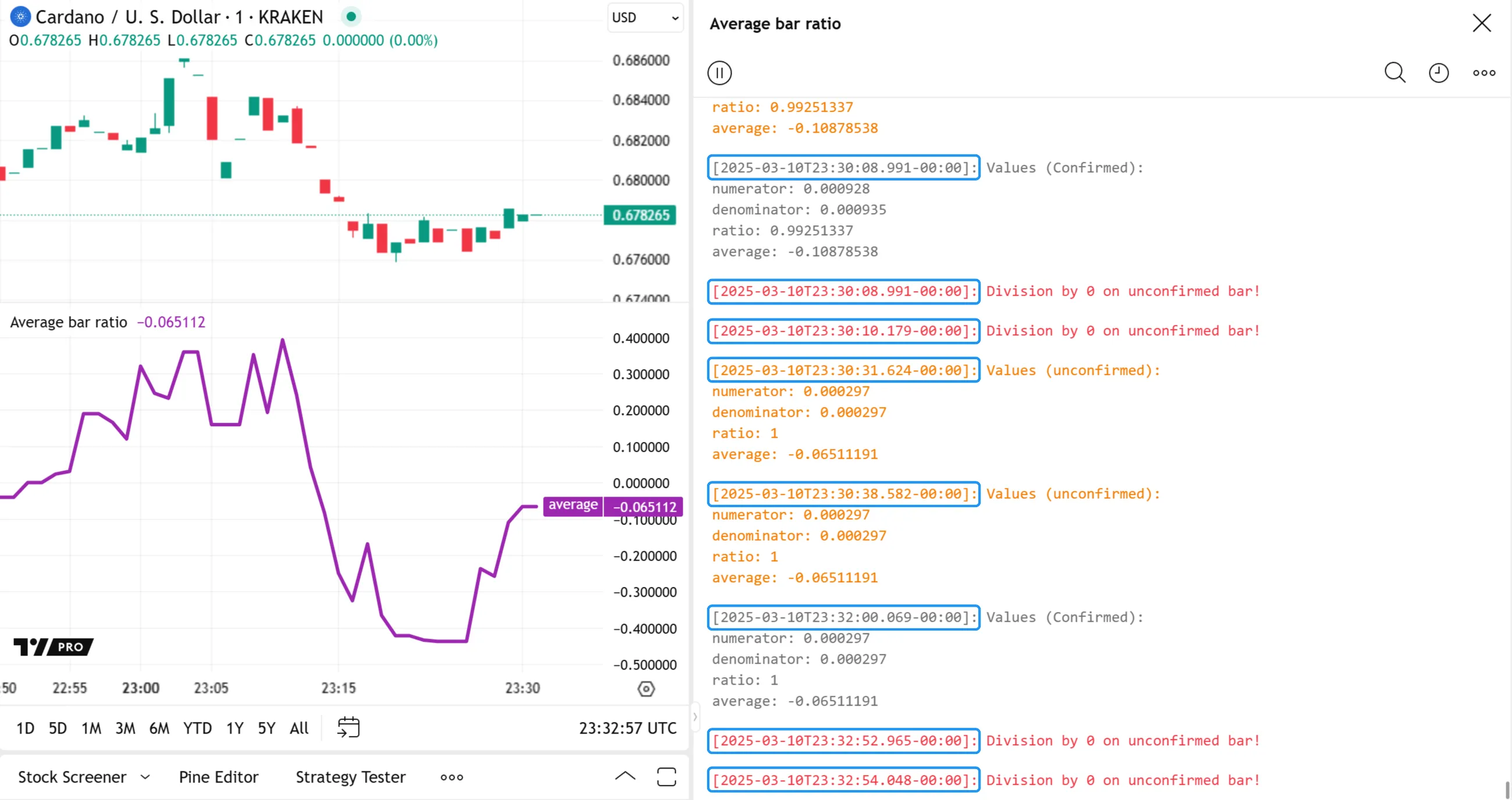

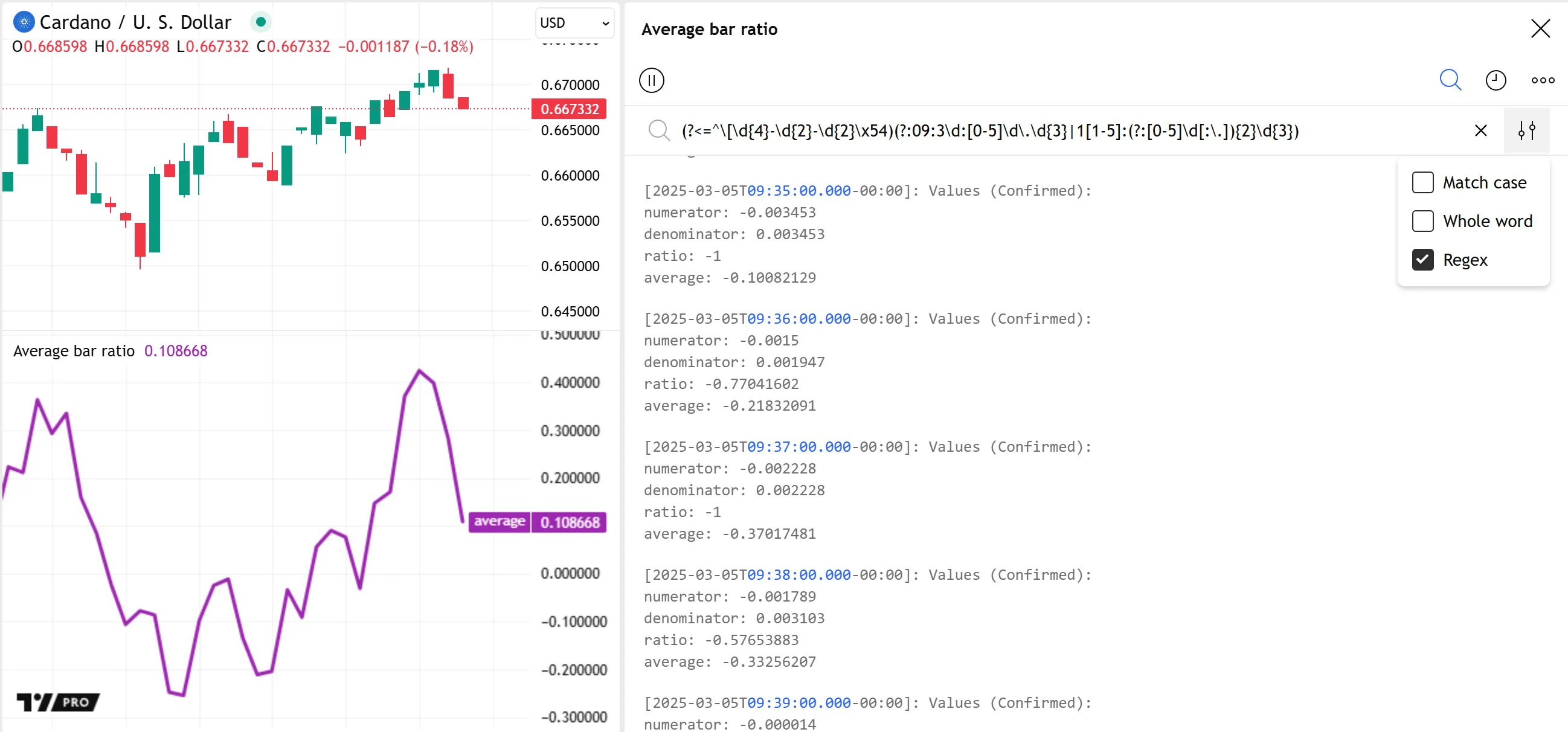

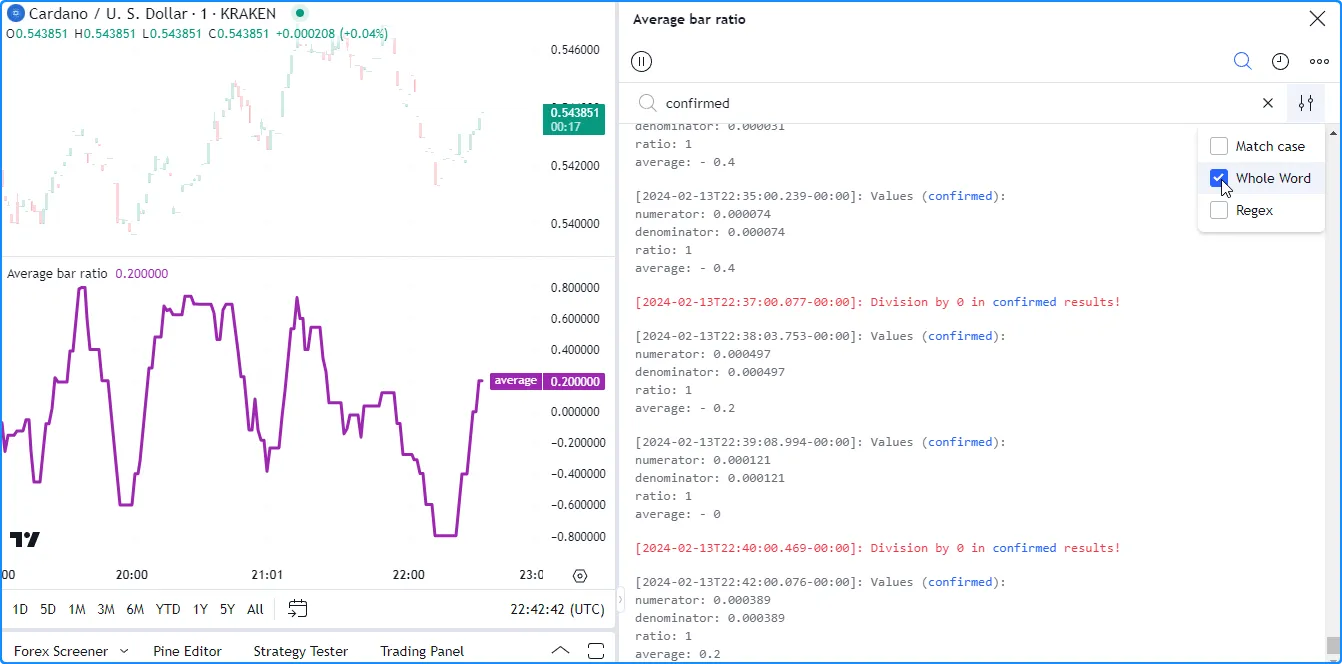

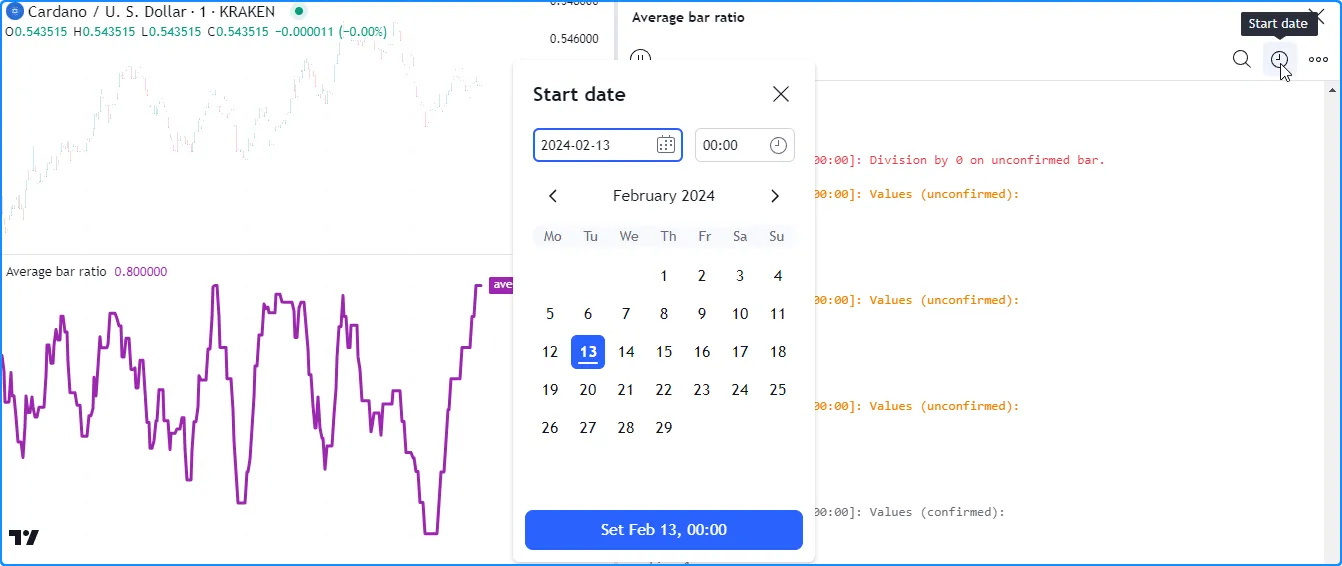

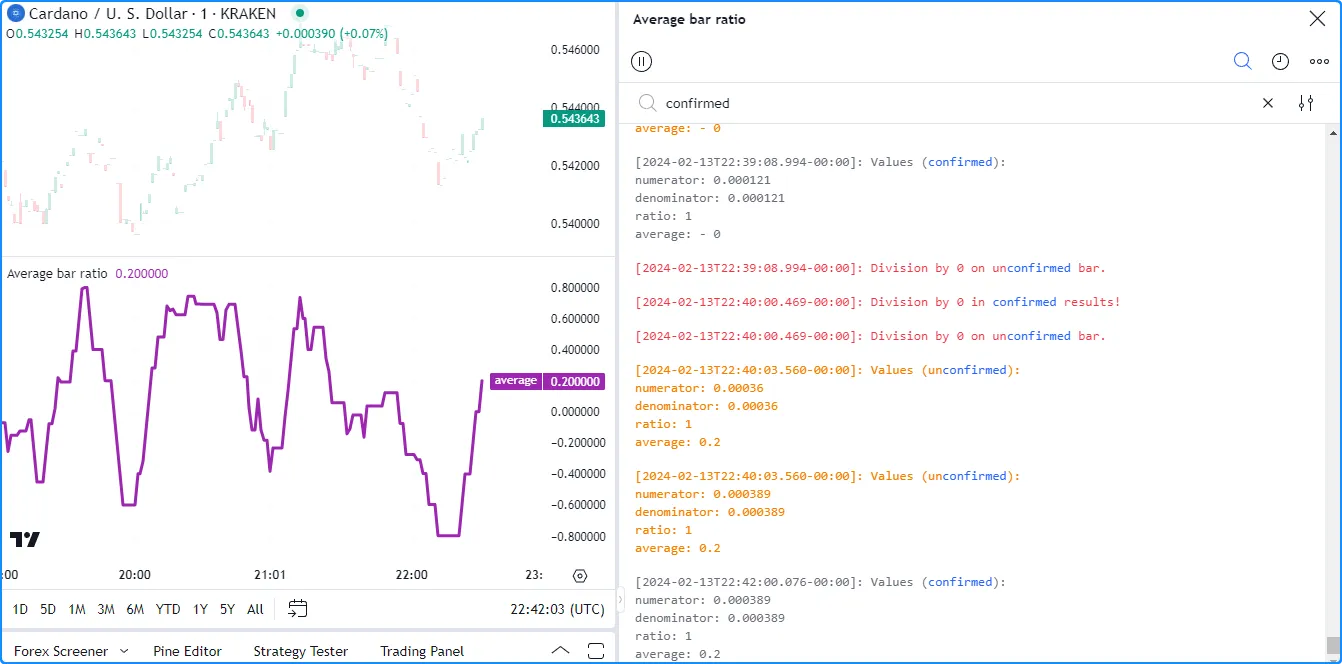

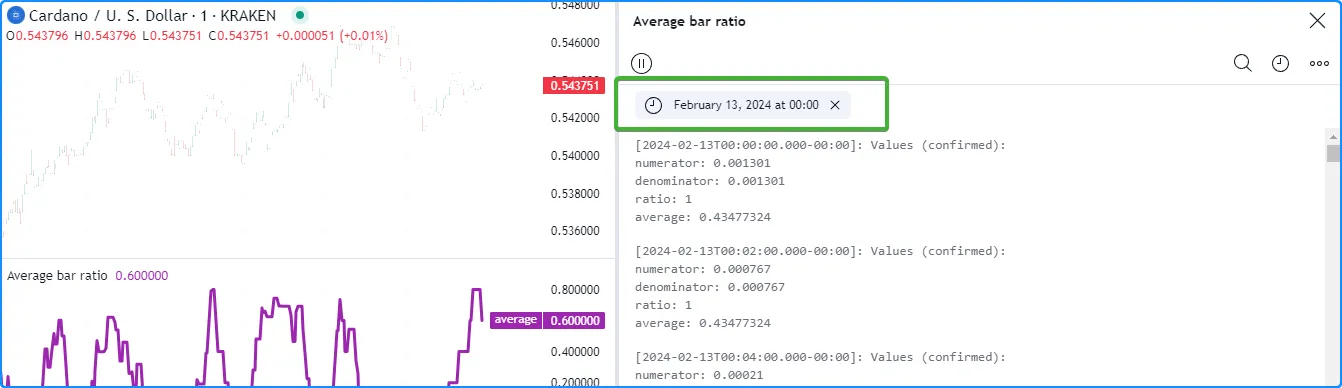

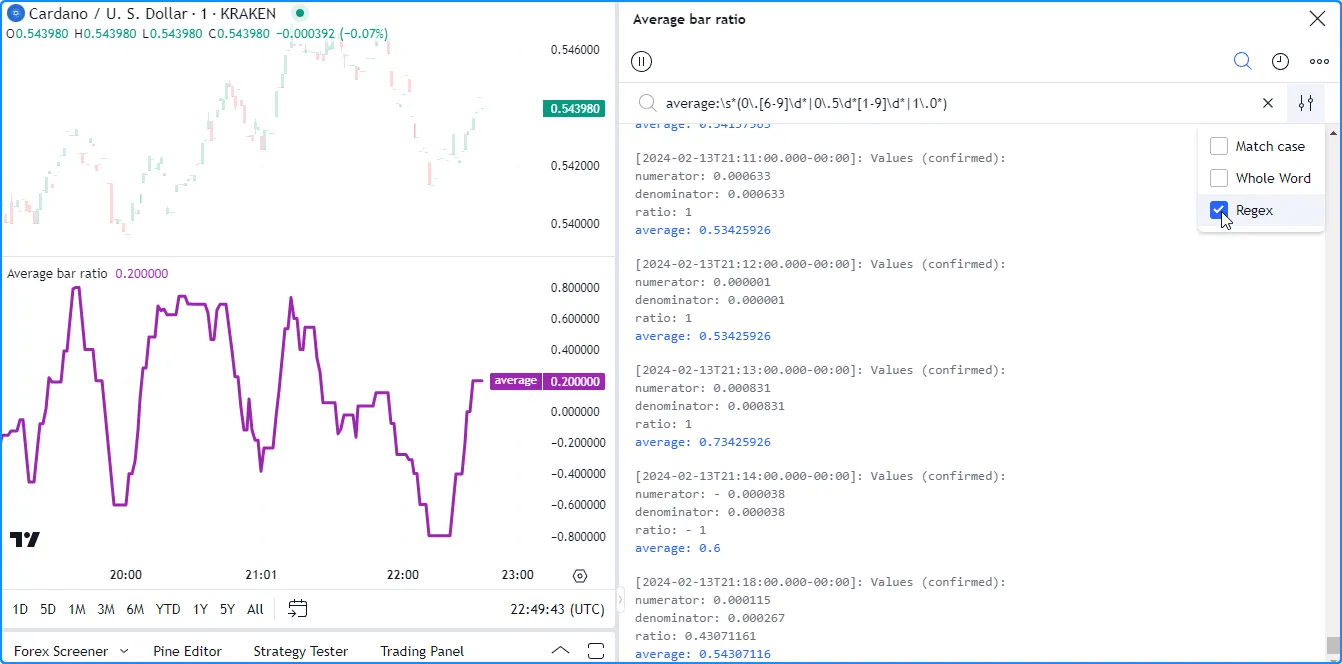

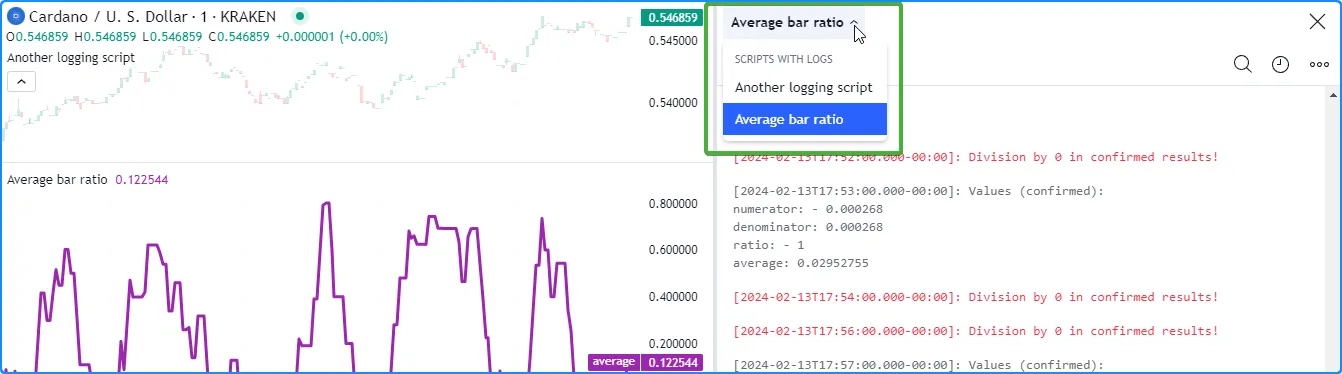

Pine Logs include some helpful features that simplify the inspection process. Whenever a script generates a log, it automatically prefixes the message with a granular timestamp to signify where the log event occurred in the time series. Additionally, each entry contains “Source code” and “Scroll to bar” icons, which appear when hovering over it in the Pine Logs pane:

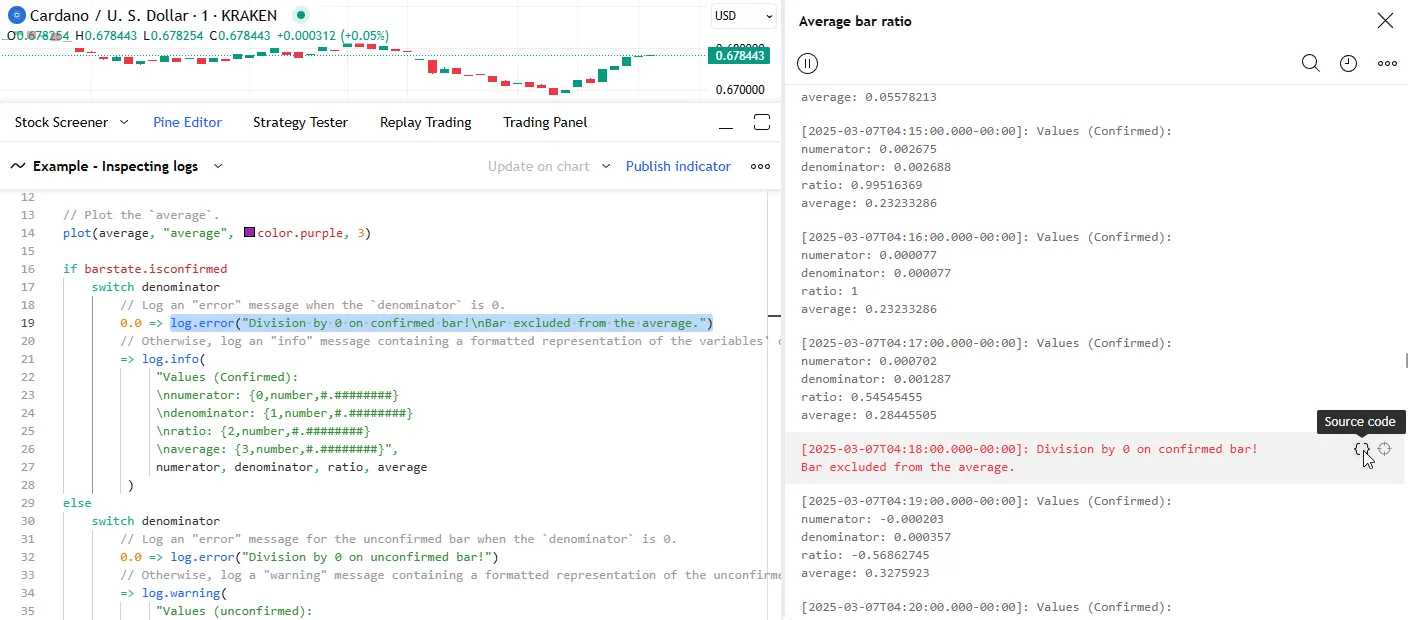

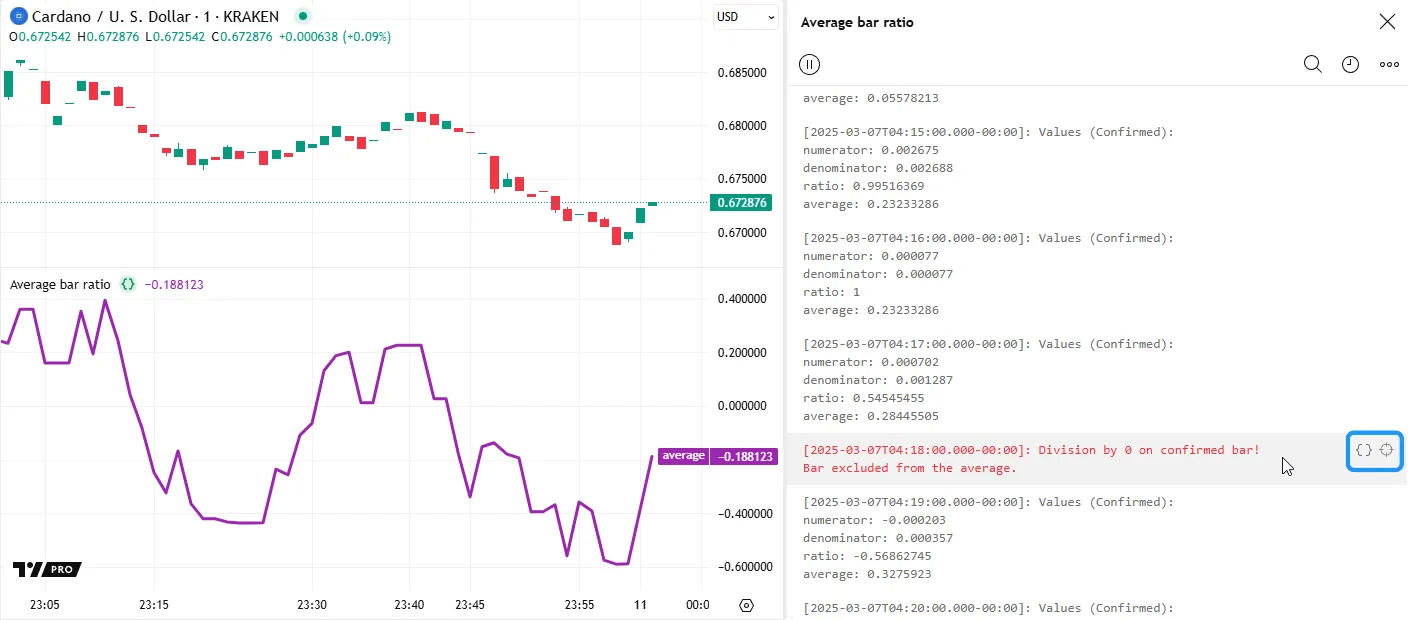

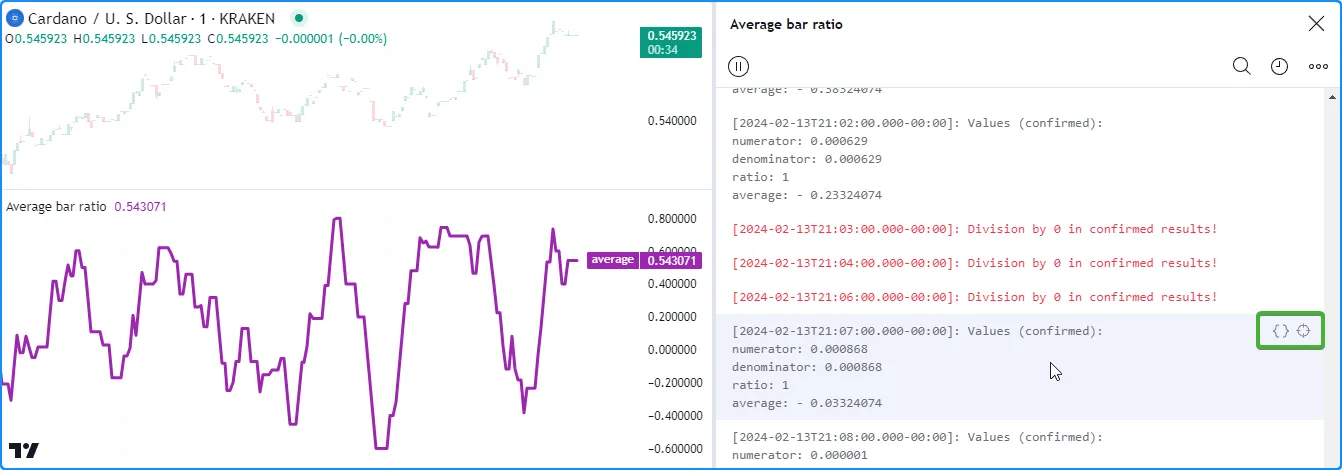

Clicking an entry’s “Source code” icon opens the script in the Pine Editor and highlights the specific line of code that triggered the log:

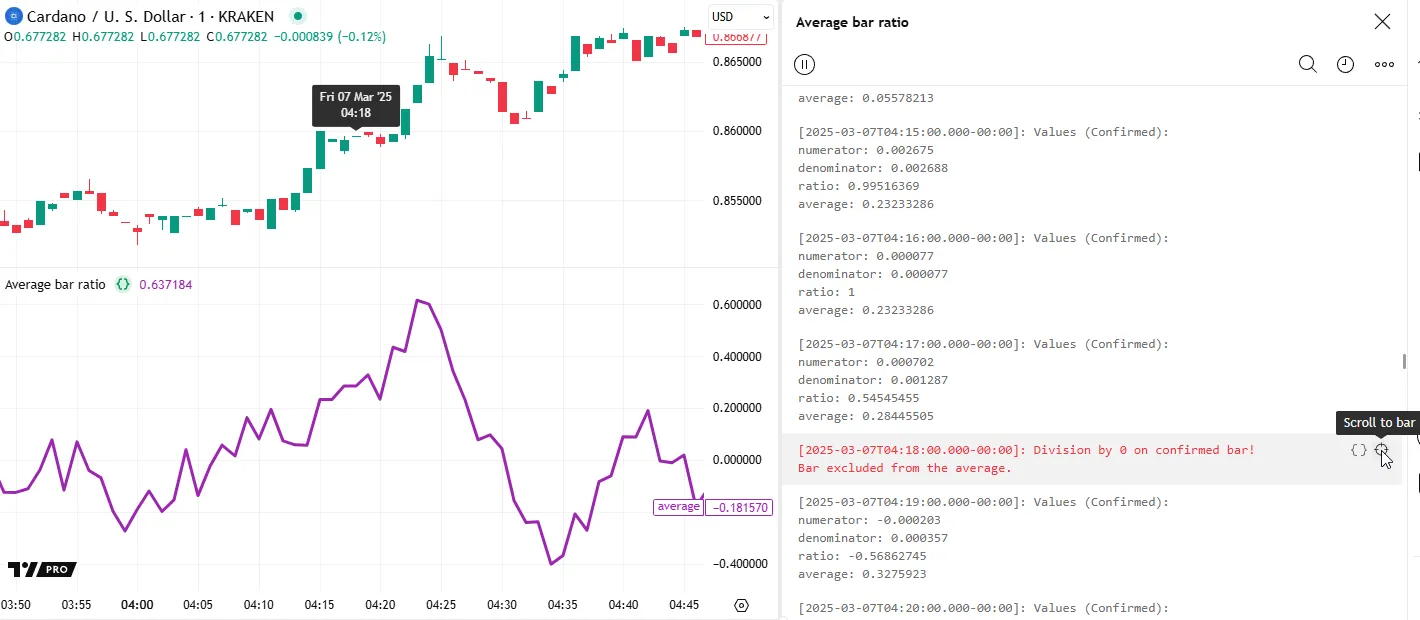

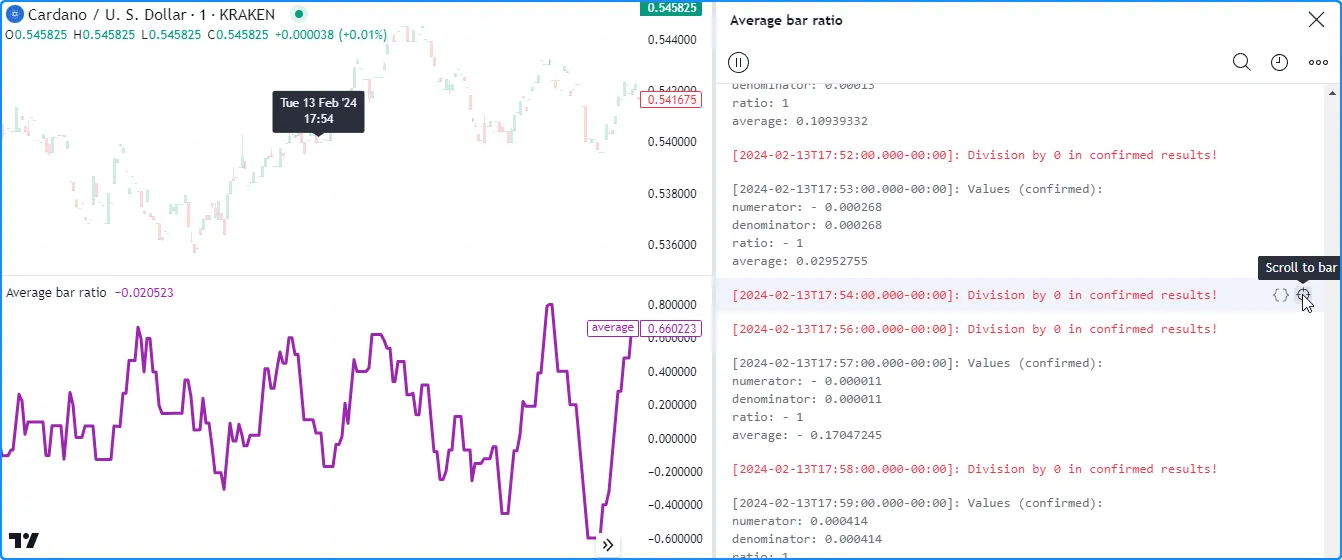

Clicking an entry’s “Scroll to bar” icon navigates the chart to the specific bar where the log occurred, then temporarily displays a tooltip containing time information for that bar:


Note that:

  • The time information in the tooltip depends on the chart’s timeframe, just like the x-axis label linked to the chart’s cursor and drawing tools. For example, the tooltip on an EOD chart will only show the weekday and the date, whereas the tooltip on a 10-second chart will also contain the time of day, including seconds.

When a chart includes more than one script that generates logs, it’s important to note that each script maintains its own independent message history. To inspect the messages from a specific script when multiple are on the chart, select its title from the dropdown at the top of the Pine Logs pane:


Filtering logs

A single script can generate numerous logs, depending on the conditions that trigger its log.*() calls. While directly scrolling through the log history to find specific entries may suffice when a script only generates a few, it can become unwieldy when searching through hundreds or thousands of messages.

The Pine Logs pane includes multiple options for filtering messages, which allows one to simplify their results by isolating specific character sequences, start times, and debug levels.

Clicking the “Search” icon at the top of the pane opens a search bar, which matches text to filter logged messages. The search filter also highlights the matched portion of each message in blue for visual reference. For example, here, we entered “confirmed” to match all results generated by our previous script with the word somewhere in their text:


Notice that the results from this search also considered messages with “unconfirmed” as matches since the word contains our query. We can omit these matches by selecting the “Whole Word” checkbox in the options at the right of the search bar:


This filter also supports regular expressions (regex), which allow users to perform advanced searches that match custom character patterns when selecting the “Regex” checkbox in the search options. For example, this regex matches all entries that contain “average” followed by a sequence representing a number greater than 0.5 and less than or equal to 1:

average:\s*(0\.[6-9]\d*|0\.5\d*[1-9]\d*|1\.0*)

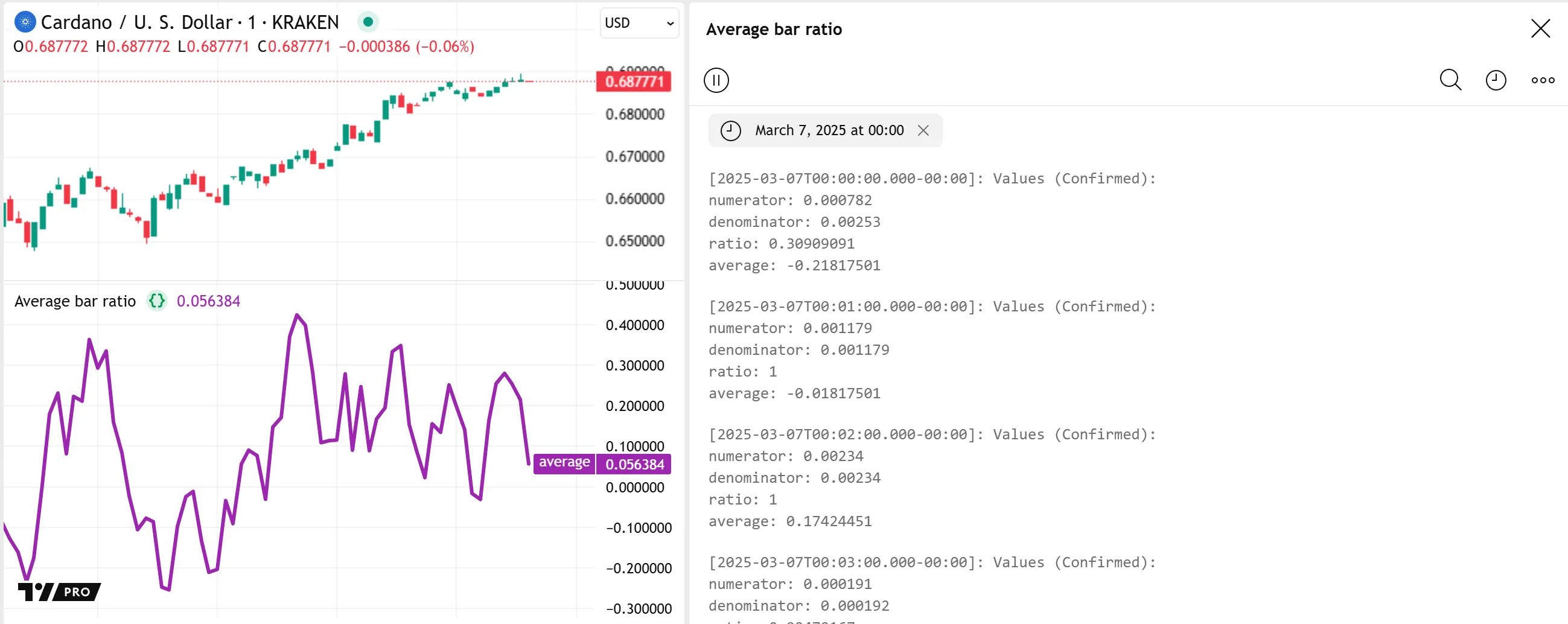

Clicking the “Start date” icon opens a dialog that allows users to specify the date and time of the first log shown in the results:


After specifying the starting point, a tag containing the starting time will appear above the log history:


Users can filter results by debug level using the checkboxes available when selecting the rightmost icon in the filtering options. Here, we’ve deactivated the “info” and “warning” levels so the results will only contain “error” messages:


Using inputs

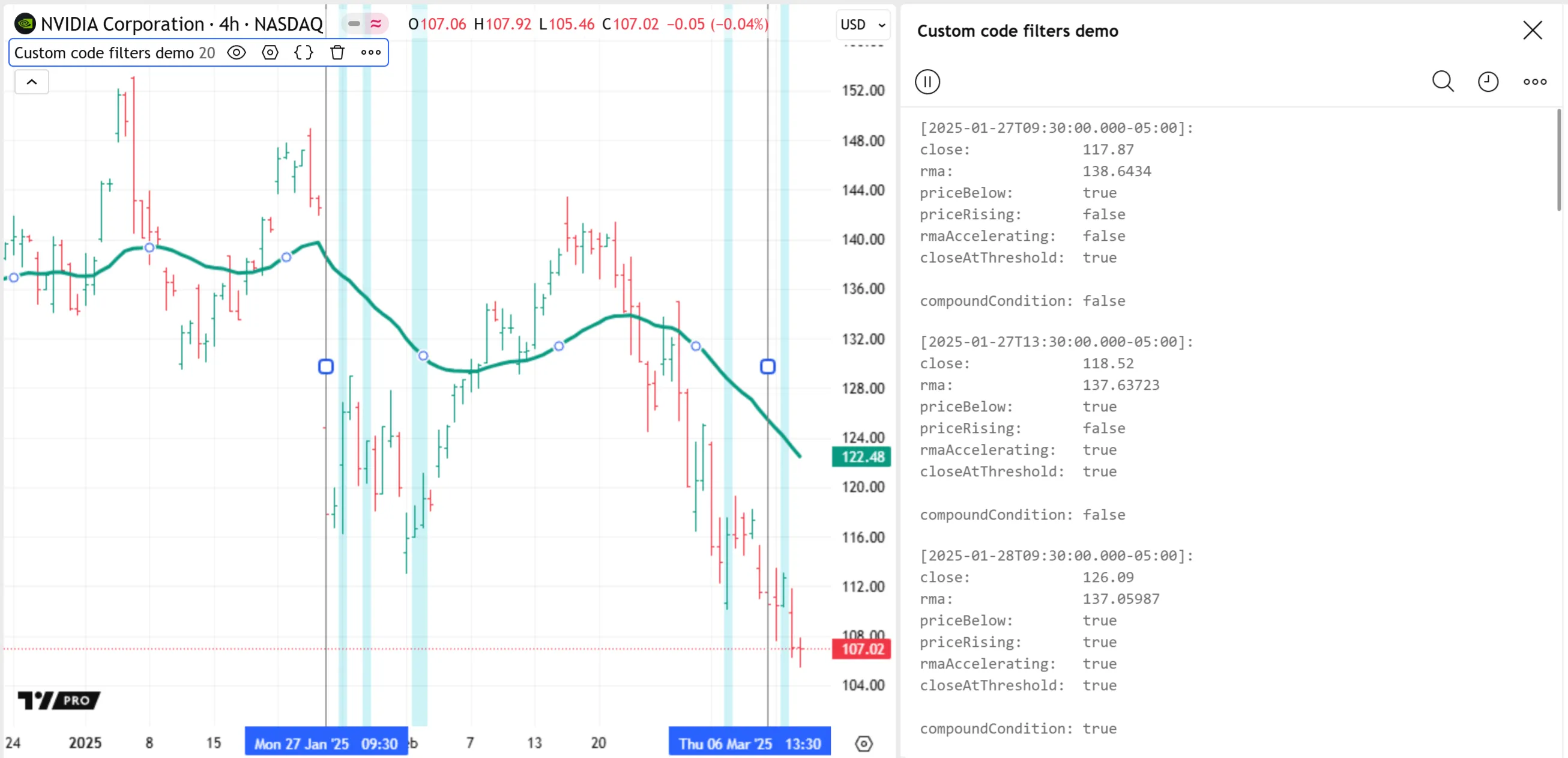

Another, more involved way to interactively filter a script’s logged results is to create inputs linked to conditional logic that activates specific log.*() calls in the code.

Let’s look at an example. This code calculates an RMA of close prices and declares a few unique conditions to form a compound condition. The script uses log.info() to display important debugging information in the Pine Logs pane, including the values of the compoundCondition variable and the “bool” variables that determine its result.

We declared the filterLogsInput, logStartInput, and logEndInput variables respectively assigned to an input.bool() and two input.time() calls for custom log filtering. When filterLogsInput is true, the script will only generate a new log if the bar’s time is between the logStartInput and logEndInput values, allowing us to interactively isolate the entries that occurred within a specific time range:


//@version=5 indicator("Filtering logs using inputs demo", "Compound condition in input range", true) //@variable The length for moving average calculations. int lengthInput = input.int(20, "Length", 2) //@variable If `true`, only allows logs within the input time range. bool filterLogsInput = input.bool(true, "Only log in time range", group = "Log filter") //@variable The starting time for logs if `filterLogsInput` is `true`. int logStartInput = input.time(0, "Start time", group = "Log filter", confirm = true) //@variable The ending time for logs if `filterLogsInput` is `true`. int logEndInput = input.time(0, "End time", group = "Log filter", confirm = true) //@variable The RMA of `close` prices. float rma = ta.rma(close, lengthInput) //@variable Is `true` when `close` exceeds the `rma`. bool priceBelow = close <= rma //@variable Is `true` when the current `close` is greater than the max of the previous `hl2` and `close`. bool priceRising = close > math.max(hl2[1], close[1]) //@variable Is `true` when the `rma` is positively accelerating. bool rmaAccelerating = rma - 2.0 * rma[1] + rma[2] > 0.0 //@variable Is `true` when the difference between `rma` and `close` exceeds 2 times the current ATR. bool closeAtThreshold = rma - close > ta.atr(lengthInput) * 2.0 //@variable Is `true` when all the above conditions occur. bool compoundCondition = priceBelow and priceRising and rmaAccelerating and closeAtThreshold // Plot the `rma`. plot(rma, "RMA", color.teal, 3) // Highlight the chart background when the `compoundCondition` occurs. bgcolor(compoundCondition ? color.new(color.aqua, 80) : na, title = "Compound condition highlight") //@variable If `filterLogsInput` is `true`, is only `true` in the input time range. Otherwise, always `true`. bool showLog = filterLogsInput ? time >= logStartInput and time <= logEndInput : true // Log results for a confirmed bar when `showLog` is `true`. if barstate.isconfirmed and showLog log.info( "\nclose: {0, number, #.#####}\nrma: {1, number, #.#####}\npriceBelow: {2}\npriceRising: {3} \nrmaAccelerating: {4}\ncloseAtThreshold: {5}\n\ncompoundCondition: {6}", close, rma, priceBelow, priceRising, rmaAccelerating, closeAtThreshold, compoundCondition )

Note that:

  • The input.*() functions assigned to the filterLogsInput, logStartInput, and logEndInput variables include a group argument to oragnize and distinguish them in the script’s settings.
  • The input.time() calls include confirm = true so that we can interactively set the start and end times directly on the chart. To reset the inputs, select “Reset points…” from the options in the script’s “More” menu.
  • The condition that triggers each log.info() call includes barstate.isconfirmed to limit log generation to confirmed bars.

Debugging functions

User-defined functions and methods are custom functions written by users. They encapsulate sequences of operations that a script can invoke later in its execution.

Every user-defined function or method has a local scope that embeds into the script’s global scope. The parameters in a function’s signature and the variables declared within the function body belong to that function’s local scope, and they are not directly accessible to a script’s outer scope or the scopes of other functions.

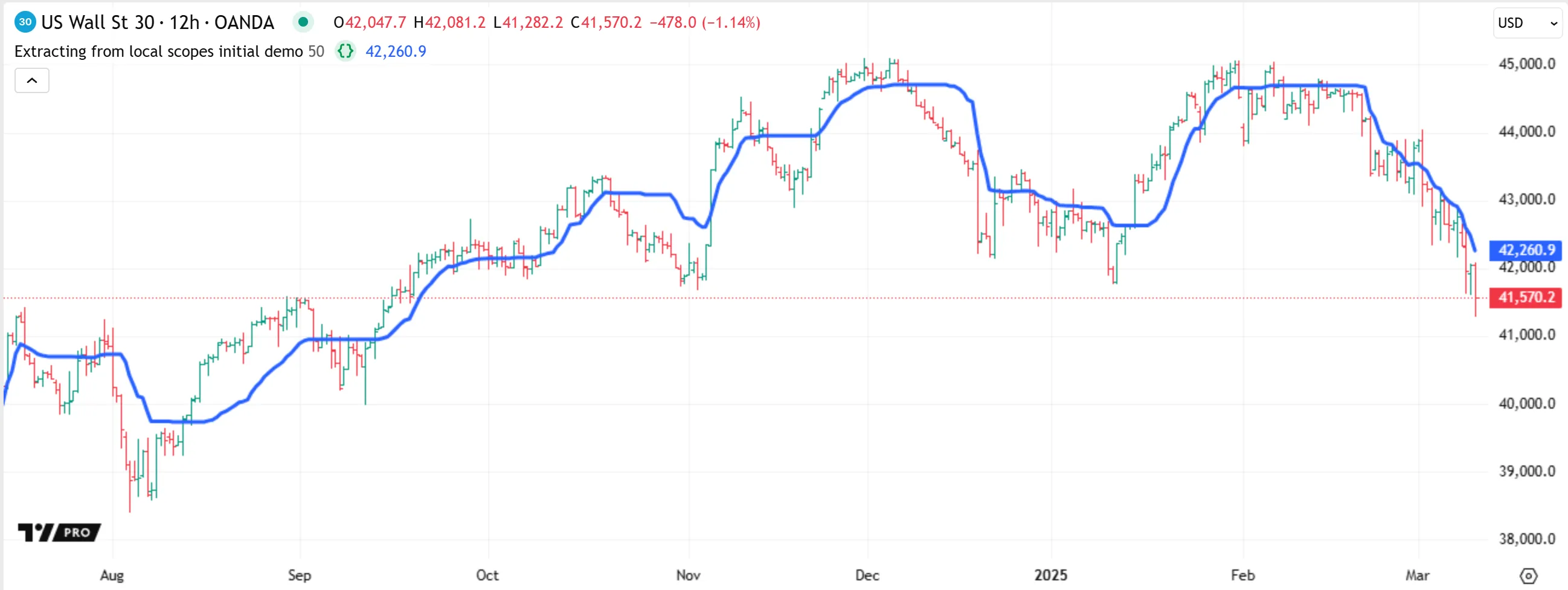

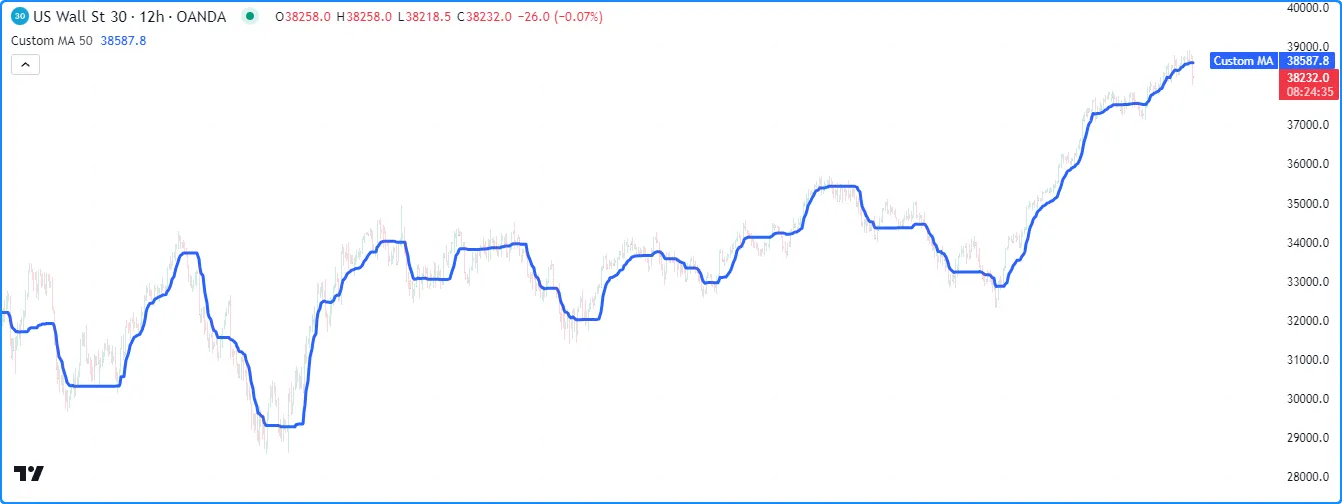

The segments below explain a few ways programmers can debug the values from a function’s local scope. We will use this script as the starting point for our subsequent examples. It contains a customMA() function that returns an exponential moving average whose smoothing parameter varies based on the source distance outside the 25th and 75th percentiles over length bars:


//@version=5 indicator("Debugging functions demo", "Custom MA", true) //@variable The number of bars in the `customMA()` calculation. int lengthInput = input.int(50, "Length", 2) //@function Calculates a moving average that only responds to values outside the first and third quartiles. //@param source The series of values to process. //@param length The number of bars in the calculation. //@returns The moving average value. customMA(float source, int length) => //@variable The custom moving average. var float result = na // Calculate the 25th and 75th `source` percentiles. float q1 = ta.percentile_linear_interpolation(source, length, 25) float q3 = ta.percentile_linear_interpolation(source, length, 75) // Calculate the range values. float outerRange = math.max(source - q3, q1 - source, 0.0) float totalRange = ta.range(source, length) //@variable Half the ratio of the `outerRange` to the `totalRange`. float alpha = 0.5 * outerRange / totalRange // Mix the `source` with the `result` based on the `alpha` value. result := (1.0 - alpha) * nz(result, source) + alpha * source // Return the `result`. result //@variable The `customMA()` result over `lengthInput` bars. float maValue = customMA(close, lengthInput) // Plot the `maValue`. plot(maValue, "Custom MA", color.blue, 3)

Extracting local variables

When a programmer wants to inspect a user-defined function’s local variables by plotting its values, coloring the background or chart bars, etc., they must extract the values to the global scope, as the built-in functions that produce such outputs can only accept global variables and literals.

Since the values returned by a function are available to the scope where a call occurs, one straightforward extraction approach is to have the function return a tuple containing all the values that need inspection.

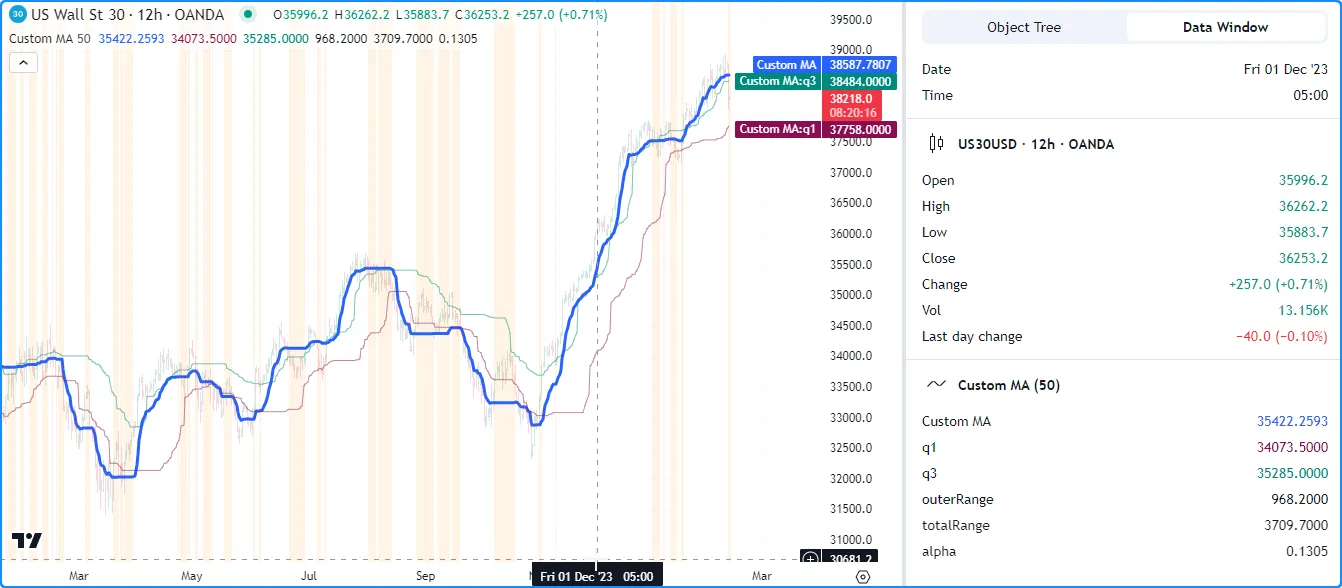

Here, we’ve modified the customMA() function to return a tuple containing all the function’s calculated variables. Now, we can call the function with a tuple declaration to make the values available in the global scope and inspect them with plots:


//@version=5 indicator("Extracting local variables with tuples demo", "Custom MA", true) //@variable The number of bars in the `customMA()` calculation. int lengthInput = input.int(50, "Length", 2) //@function Calculates a moving average that only responds to values outside the first and third quartiles. //@param source The series of values to process. //@param length The number of bars in the calculation. //@returns The moving average value. customMA(float source, int length) => //@variable The custom moving average. var float result = na // Calculate the 25th and 75th `source` percentiles. float q1 = ta.percentile_linear_interpolation(source, length, 25) float q3 = ta.percentile_linear_interpolation(source, length, 75) // Calculate the range values. float outerRange = math.max(source - q3, q1 - source, 0.0) float totalRange = ta.range(source, length) //@variable Half the ratio of the `outerRange` to the `totalRange`. float alpha = 0.5 * outerRange / totalRange // Mix the `source` with the `result` based on the `alpha` value. result := (1.0 - alpha) * nz(result, source) + alpha * source // Return a tuple containing the `result` and other local variables. [result, q1, q3, outerRange, totalRange, alpha] // Declare a tuple containing all values returned by `customMA()`. [maValue, q1Debug, q3Debug, outerRangeDebug, totalRangeDebug, alphaDebug] = customMA(close, lengthInput) // Plot the `maValue`. plot(maValue, "Custom MA", color.blue, 3) //@variable Display location for plots with different scale. notOnPane = display.all - display.pane // Display the extracted `q1` and `q3` values in all plot locations. plot(q1Debug, "q1", color.new(color.maroon, 50)) plot(q3Debug, "q3", color.new(color.teal, 50)) // Display the other extracted values in the status line and Data Window to avoid impacting the scale. plot(outerRangeDebug, "outerRange", chart.fg_color, display = notOnPane) plot(totalRangeDebug, "totalRange", chart.fg_color, display = notOnPane) plot(alphaDebug, "alpha", chart.fg_color, display = notOnPane) // Highlight the chart when `alphaDebug` is 0, i.e., when the `maValue` does not change. bgcolor(alphaDebug == 0.0 ? color.new(color.orange, 90) : na, title = "`alpha == 0.0` highlight")

Note that:

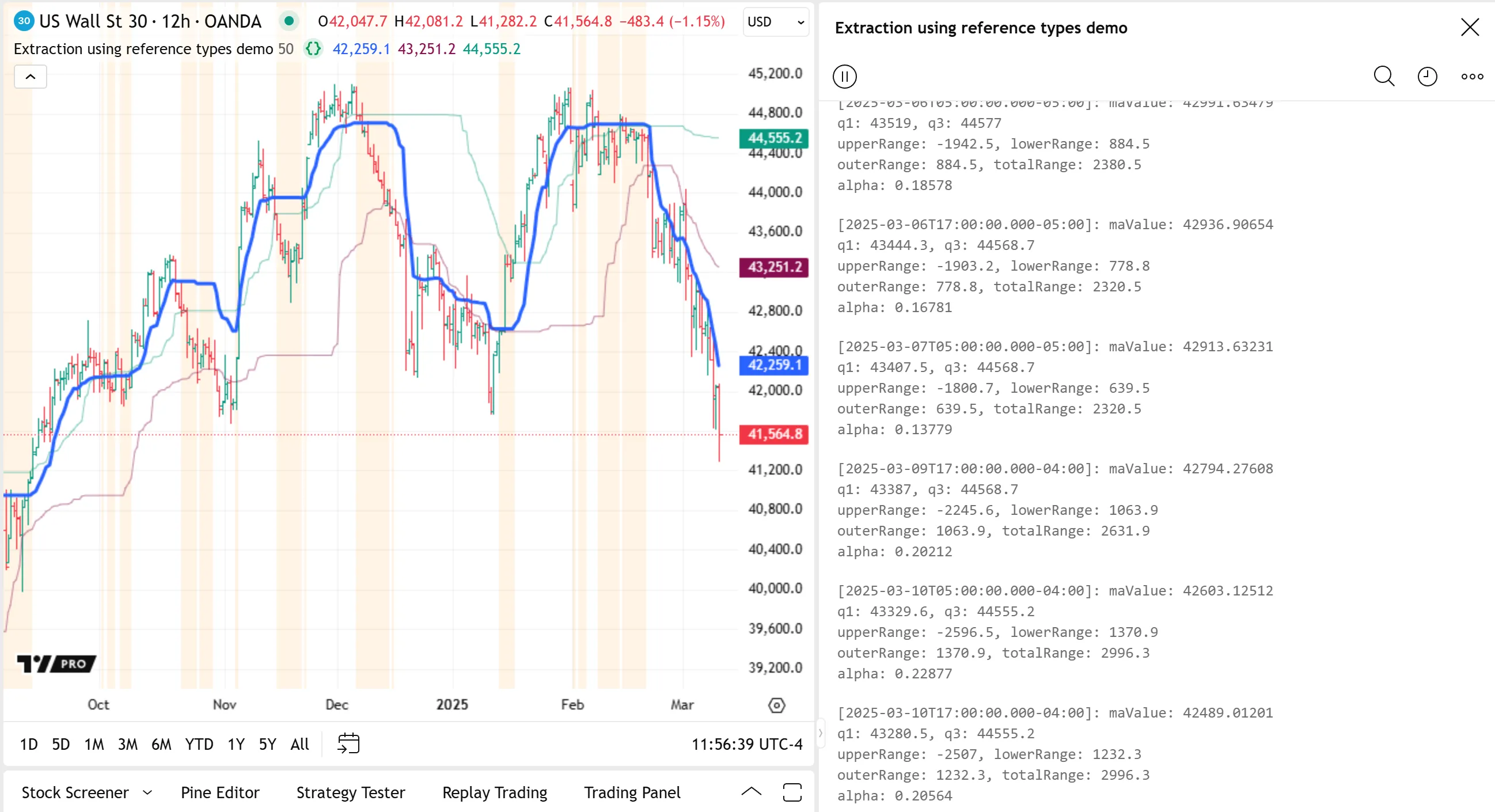

Another, more advanced way to extract the values of a function’s local variables is to pass them to a reference type variable declared in the global scope.

Function scopes can access global variables for their calculations. While a script cannot directly reassign the values of global variables from within a function’s scope, it can update the elements or properties of those values if they are reference types, such as arrays, matrices, maps, and user-defined types.

This version declares a debugData variable in the global scope that references a map with “string” keys and “float” values. Within the local scope of the customMA() function, the script puts key-value pairs containing each local variable’s name and value into the map. After calling the function, the script plots the stored debugData values:

//@version=5 indicator("Extracting local variables with reference types demo", "Custom MA", true) //@variable The number of bars in the `customMA()` calculation. int lengthInput = input.int(50, "Length", 2) //@variable A map with "string" keys and "float" values for debugging the `customMA()`. map<string, float> debugData = map.new<string, float>() //@function Calculates a moving average that only responds to values outside the first and third quartiles. //@param source The series of values to process. //@param length The number of bars in the calculation. //@returns The moving average value. customMA(float source, int length) => //@variable The custom moving average. var float result = na // Calculate the 25th and 75th `source` percentiles. float q1 = ta.percentile_linear_interpolation(source, length, 25), map.put(debugData, "q1", q1) float q3 = ta.percentile_linear_interpolation(source, length, 75), map.put(debugData, "q3", q3) // Calculate the range values. float outerRange = math.max(source - q3, q1 - source, 0.0), map.put(debugData, "outerRange", outerRange) float totalRange = ta.range(source, length), map.put(debugData, "totalRange", totalRange) //@variable Half the ratio of the `outerRange` to the `totalRange`. float alpha = 0.5 * outerRange / totalRange, map.put(debugData, "alpha", alpha) // Mix the `source` with the `result` based on the `alpha` value. result := (1.0 - alpha) * nz(result, source) + alpha * source // Return the `result`. result //@variable The `customMA()` result over `lengthInput` bars. float maValue = customMA(close, lengthInput) // Plot the `maValue`. plot(maValue, "Custom MA", color.blue, 3) //@variable Display location for plots with different scale. notOnPane = display.all - display.pane // Display the extracted `q1` and `q3` values in all plot locations. plot(map.get(debugData, "q1"), "q1", color.new(color.maroon, 50)) plot(map.get(debugData, "q3"), "q3", color.new(color.teal, 50)) // Display the other extracted values in the status line and Data Window to avoid impacting the scale. plot(map.get(debugData, "outerRange"), "outerRange", chart.fg_color, display = notOnPane) plot(map.get(debugData, "totalRange"), "totalRange", chart.fg_color, display = notOnPane) plot(map.get(debugData, "alpha"), "alpha", chart.fg_color, display = notOnPane) // Highlight the chart when the extracted `alpha` is 0, i.e., when the `maValue` does not change. bgcolor(map.get(debugData, "alpha") == 0.0 ? color.new(color.orange, 90) : na, title = "`alpha == 0.0` highlight")

Note that:

  • We placed each map.put() call on the same line as each variable declaration, separated by a comma, to keep things concise and avoid adding extra lines to the customMA() code.
  • We used map.get() to retrieve each value for the debug plot() and bgcolor() calls.

Local drawings and logs

Unlike plot.*() functions and others that require values accessible to the global scope, scripts can generate drawing objects and Pine Logs from directly within a function, allowing programmers to flexibly debug its local variables without extracting values to the outer scope.

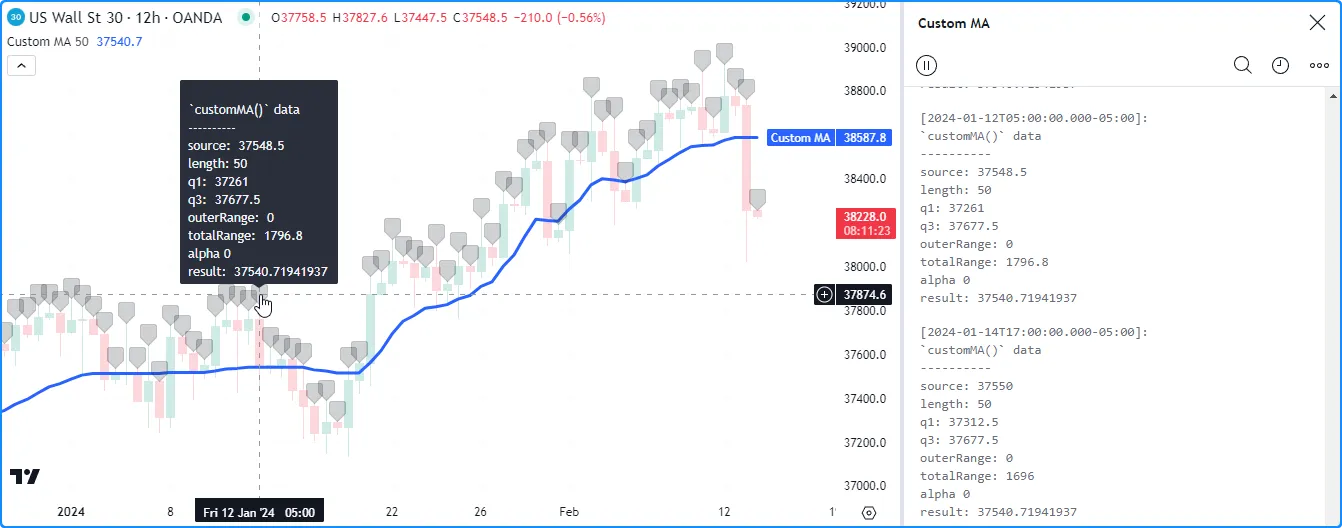

In this example, we used labels and Pine Logs to display string representations of the values within the customMA() scope. Inside the function, the script calls str.format() to create a formatted string representing the local scope’s data, then calls label.new() and log.info() to respectively display the text on the chart in a tooltip and log an “info” message containing the text in the Pine Logs pane:


//@version=5 indicator("Local drawings and logs demo", "Custom MA", true, max_labels_count = 500) //@variable The number of bars in the `customMA()` calculation. int lengthInput = input.int(50, "Length", 2) //@function Calculates a moving average that only responds to values outside the first and third quartiles. //@param source The series of values to process. //@param length The number of bars in the calculation. //@returns The moving average value. customMA(float source, int length) => //@variable The custom moving average. var float result = na // Calculate the 25th and 75th `source` percentiles. float q1 = ta.percentile_linear_interpolation(source, length, 25) float q3 = ta.percentile_linear_interpolation(source, length, 75) // Calculate the range values. float outerRange = math.max(source - q3, q1 - source, 0.0) float totalRange = ta.range(source, length) //@variable Half the ratio of the `outerRange` to the `totalRange`. float alpha = 0.5 * outerRange / totalRange // Mix the `source` with the `result` based on the `alpha` value. result := (1.0 - alpha) * nz(result, source) + alpha * source //@variable A formatted string containing representations of all local variables. string debugText = str.format( "\n`customMA()` data\n----------\nsource: {0, number, #.########}\nlength: {1}\nq1: {2, number, #.########} \nq3: {3, number, #.########}\nouterRange: {4, number, #.########}\ntotalRange: {5, number, #.########} \nalpha{6, number, #.########}\nresult: {7, number, #.########}", source, length, q1, q3, outerRange, totalRange, alpha, result ) // Draw a label with a tooltip displaying the `debugText`. label.new(bar_index, high, color = color.new(chart.fg_color, 80), tooltip = debugText) // Print an "info" message in the Pine Logs pane when the bar is confirmed. if barstate.isconfirmed log.info(debugText) // Return the `result`. result //@variable The `customMA()` result over `lengthInput` bars. float maValue = customMA(close, lengthInput) // Plot the `maValue`. plot(maValue, "Custom MA", color.blue, 3)

Note that:

  • We included max_labels_count = 500 in the indicator() function to display labels for the most recent 500 customMA() calls.
  • The function uses barstate.isconfirmed in an if statement to only call log.info() on confirmed bars. It does not log a new message on each realtime tick.

Debugging loops

Loops are structures that repeatedly execute a code block based on a counter (for), the contents of a collection (for…in), or a condition (while). They allow scripts to perform repetitive tasks without the need for redundant lines of code.

Each loop instance maintains a separate local scope, which all outer scopes cannot access. All variables declared within a loop’s scope are specific to that loop, meaning one cannot use them in an outer scope.

As with other structures in Pine, there are numerous possible ways to debug loops. This section explores a few helpful techniques, including extracting local values for plots, inspecting values with drawings, and tracing a loop’s execution with Pine Logs.

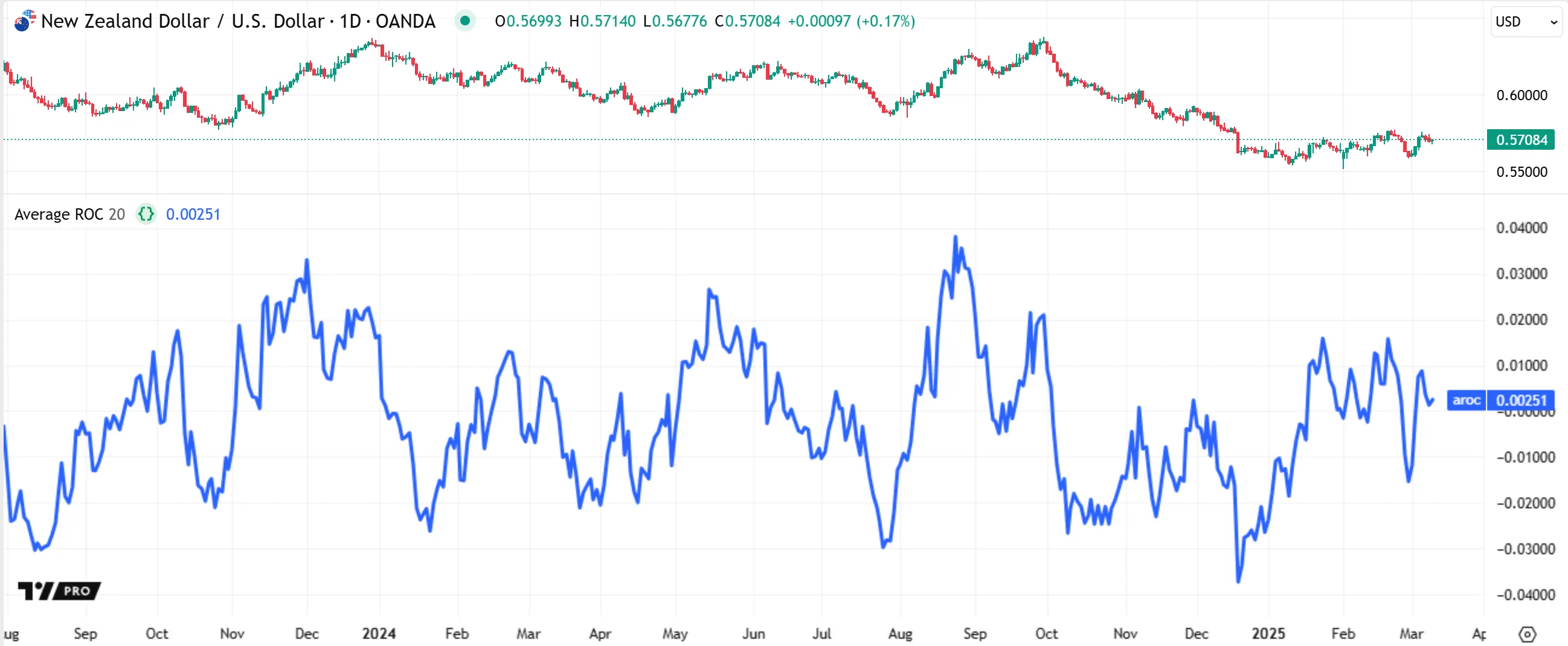

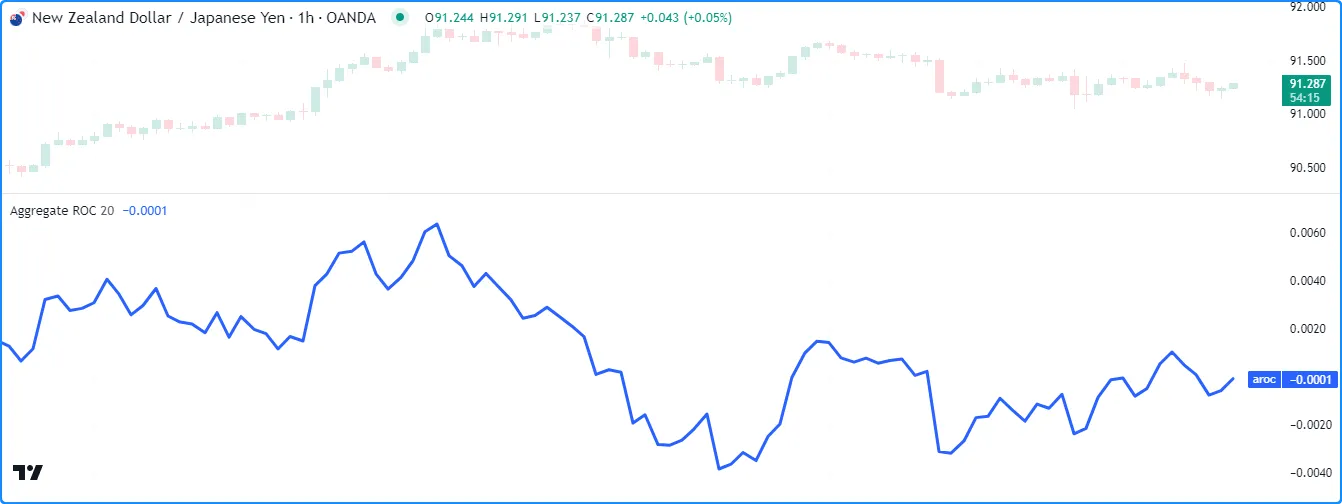

We will use this script as a starting point for the examples in the following segments. It aggregates the close value’s rates of change over 1 - lookbackInput bars and accumulates them in a for loop, then divides the result by the lookbackInput to calculate a final average value:


//@version=5 indicator("Debugging loops demo", "Aggregate ROC") //@variable The number of bars in the calculation. int lookbackInput = input.int(20, "Lookback", 1) //@variable The average ROC of `close` prices over each length from 1 to `lookbackInput` bars. float aroc = 0.0 // Calculation loop. for length = 1 to lookbackInput //@variable The `close` value `length` bars ago. float pastClose = close[length] //@variable The `close` rate of change over `length` bars. float roc = (close - pastClose) / pastClose // Add the `roc` to `aroc`. aroc += roc // Divide `aroc` by the `lookbackInput`. aroc /= lookbackInput // Plot the `aroc`. plot(aroc, "aroc", color.blue, 3)

Note that:

  • The aroc is a global variable modified within the loop, whereas pastClose and roc are local variables inaccessible to the outer scope.

Inspecting a single iteration

When a programmer needs to focus on a specific loop iteration, there are multiple techniques they can use, most of which entail using a condition inside the loop to trigger debugging actions, such as extracting values to outer variables, creating drawings, logging messages, etc.

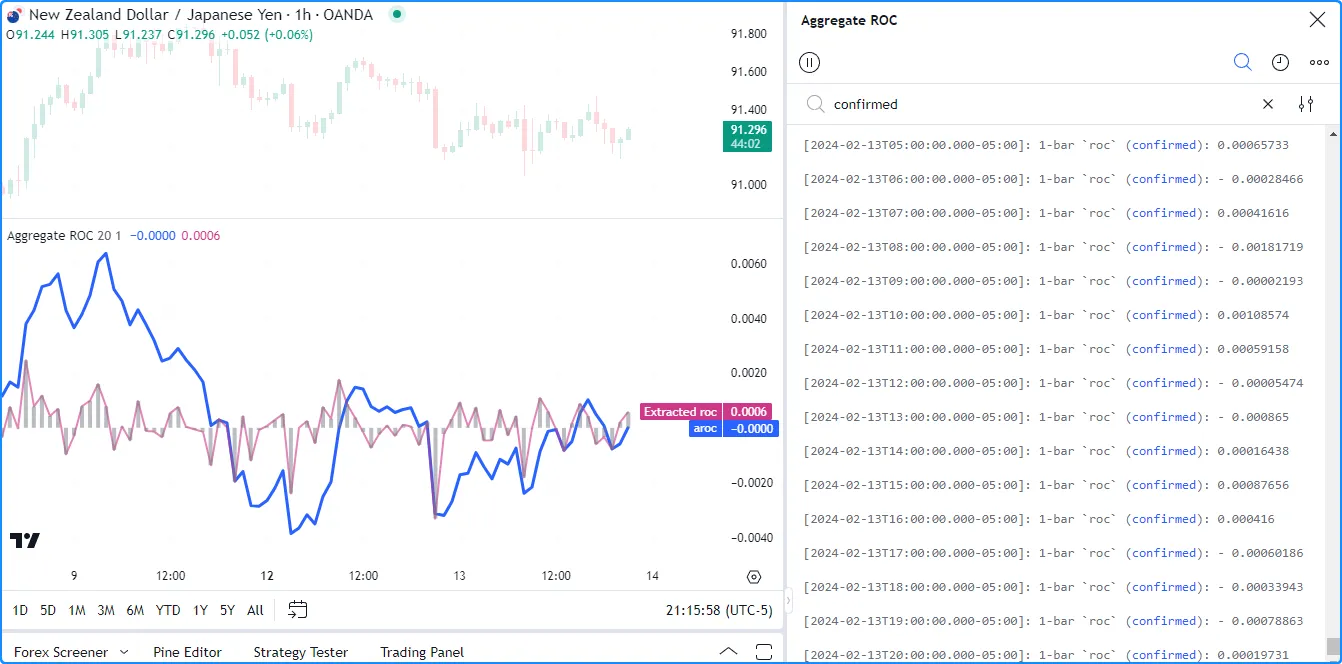

This example inspects the local roc value from a single iteration of the loop in three different ways. When the loop counter’s value equals the debugCounterInput, the script assigns the roc to an rocDebug variable from the global scope for plotting, draws a vertical line from 0 to the roc value using line.new(), and logs a message in the Pine Logs pane using log.info():


//@version=5 indicator("Inspecting a single iteration demo", "Aggregate ROC", max_lines_count = 500) //@variable The number of bars in the calculation. int lookbackInput = input.int(20, "Lookback", 1) //@variable The `length` value in the loop's execution where value extraction occurs. int debugCounterInput = input.int(1, "Loop counter value", 1, group = "Debugging") //@variable The `roc` value extracted from the loop. float rocDebug = na //@variable The average ROC of `close` over lags from 1 to `lookbackInput` bars. float aroc = 0.0 // Calculation loop. for length = 1 to lookbackInput //@variable The `close` value `length` bars ago. float pastClose = close[length] //@variable The `close` rate of change over `length` bars. float roc = (close - pastClose) / pastClose // Add the `roc` to `aroc`. aroc += roc // Trigger debug actions when the `length` equals the `debugCounterInput`. if length == debugCounterInput // Assign `roc` to `rocDebug` so the script can plot its value. rocDebug := roc // Draw a vertical line from 0 to the `roc` at the `bar_index`. line.new(bar_index, 0.0, bar_index, roc, color = color.new(color.gray, 50), width = 4) // Log an "info" message in the Pine Logs pane. log.info("{0}-bar `roc`{1}: {2, number, #.########}", length, barstate.isconfirmed ? " (confirmed)" : "", roc) // Divide `aroc` by the `lookbackInput`. aroc /= lookbackInput // Plot the `aroc`. plot(aroc, "aroc", color.blue, 3) // Plot the `rocDebug`. plot(rocDebug, "Extracted roc", color.new(color.rgb(206, 55, 136), 40), 2)

Note that:

  • The input.int() call assigned to the debugCounterInput includes a group argument to distinguish it in the script’s settings.
  • The log.info() call includes “(confirmed)” in the formatted message whenever barstate.isconfirmed is true. Searching this text in the Pine Logs pane will filter out the entries from unconfirmed bars. See the Filtering logs section above.

Inspecting multiple iterations

When inspecting the values from several loop iterations, it’s often helpful to utilize collections or strings to gather the results for use in output functions after the loop terminates.

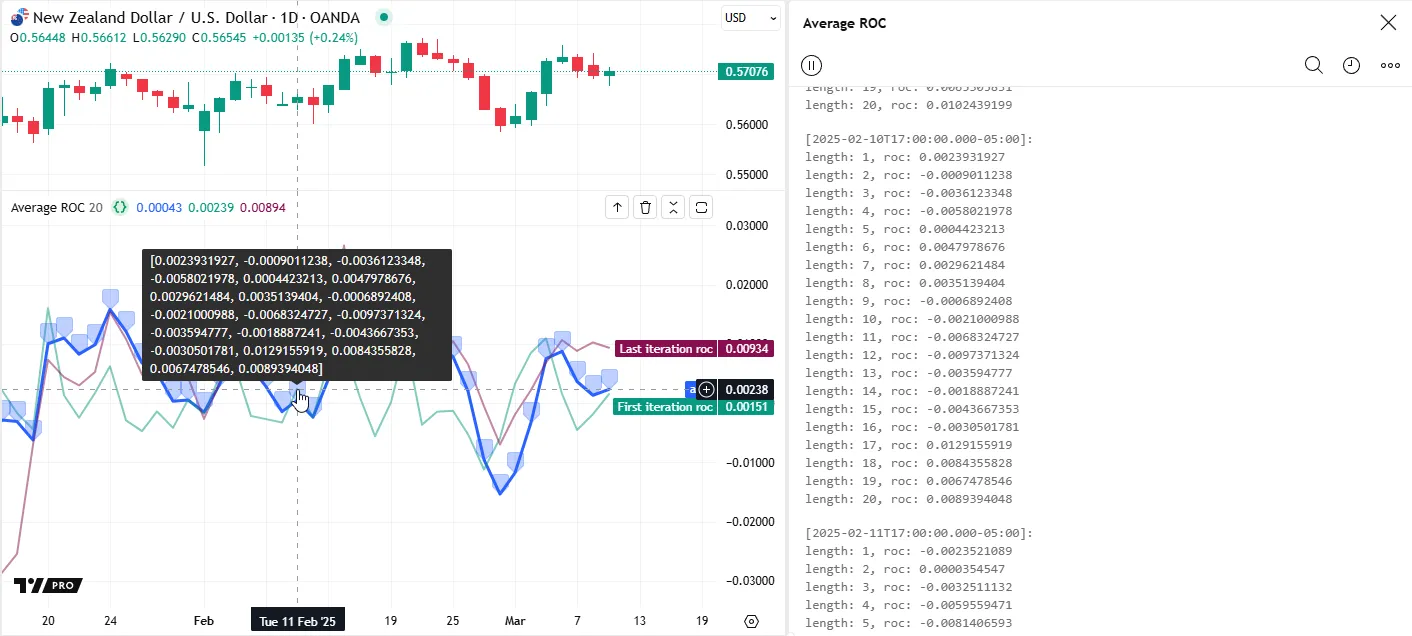

This version demonstrates a few ways to collect and display the loop’s values from all iterations. It declares a logText string and a debugValues array in the global scope. Inside the local scope of the for loop, the script concatenates a string representation of the length and roc with the logText and calls array.push() to push the iteration’s roc value into the debugValues array.

After the loop ends, the script plots the first and last value from the debugValues array, draws a label with a tooltip showing a string representation of the array, and displays the logText in the Pine Logs pane upon the bar’s confirmation:


//@version=5 indicator("Inspecting multiple iterations demo", "Aggregate ROC", max_labels_count = 500) //@variable The number of bars in the calculation. int lookbackInput = input.int(20, "Lookback", 1) //@variable An array containing the `roc` value from each loop iteration. array<float> debugValues = array.new<float>() //@variable A "string" containing information about the `roc` on each iteration. string logText = "" //@variable The average ROC of `close` over lags from 1 to `lookbackInput` bars. float aroc = 0.0 // Calculation loop. for length = 1 to lookbackInput //@variable The `close` value `length` bars ago. float pastClose = close[length] //@variable The `close` rate of change over `length` bars. float roc = (close - pastClose) / pastClose // Add the `roc` to `aroc`. aroc += roc // Concatenate a new "string" representation with the `debugText`. logText += "\nlength: " + str.tostring(length) + ", roc: " + str.tostring(roc) // Push the `roc` value into the `debugValues` array. array.push(debugValues, roc) // Divide `aroc` by the `lookbackInput`. aroc /= lookbackInput // Plot the `aroc`. plot(aroc, "aroc", color.blue, 3) // Plot the `roc` values from the first and last iteration. plot(array.first(debugValues), "First iteration roc", color.new(color.rgb(166, 84, 233), 50), 2) plot(array.last(debugValues), "Last iteration roc", color.new(color.rgb(115, 86, 218), 50), 2) // Draw a label with a tooltip containing a "string" representation of the `debugValues` array. label.new(bar_index, aroc, color = color.new(color.rgb(206, 55, 136), 70), tooltip = str.tostring(debugValues)) // Log the `logText` in the Pine Logs pane when the bar is confirmed. if barstate.isconfirmed log.info(logText)

Another way to inspect a loop over several iterations is to generate sequential Pine Logs or create/modify drawing objects within the loop’s scope to trace its execution pattern with granular detail.

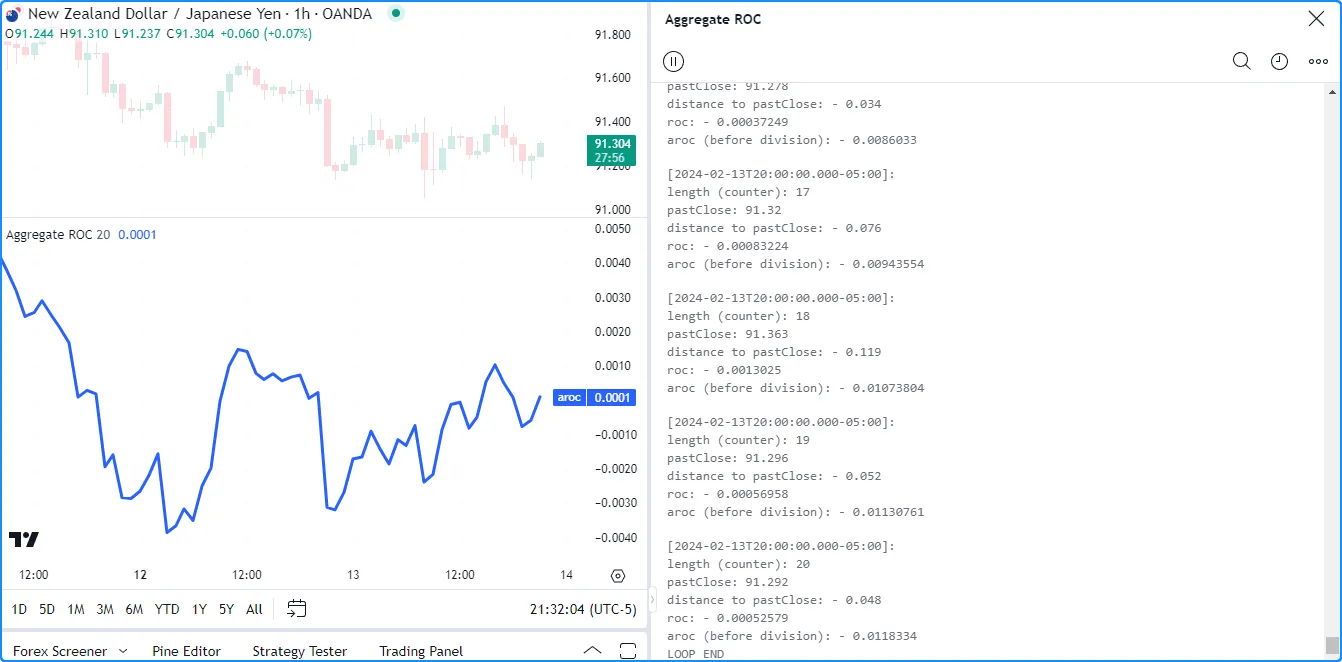

This example uses Pine Logs to trace the execution flow of our script’s loop. It generates a new “info” message on each iteration to track the local scope’s calculations as the loop progresses on each confirmed bar:


//@version=5 indicator("Inspecting multiple iterations demo", "Aggregate ROC") //@variable The number of bars in the calculation. int lookbackInput = input.int(20, "Lookback", 1) //@variable The average ROC of `close` over lags from 1 to `lookbackInput` bars. float aroc = 0.0 // Calculation loop. for length = 1 to lookbackInput //@variable The `close` value `length` bars ago. float pastClose = close[length] //@variable The `close` rate of change over `length` bars. float roc = (close - pastClose) / pastClose // Add the `roc` to `aroc`. aroc += roc if barstate.isconfirmed log.info( "{0}\nlength (counter): {1}\npastClose: {2, number, #.#####}\n distance to pastClose: {3, number, #.########}\nroc: {4, number, #.########}\n aroc (before division): {5, number, #.########}\n{6}", length == 1 ? "LOOP START" : "", length, pastClose, close - pastClose, roc, aroc, length == lookbackInput ? "LOOP END" : "" ) // Divide `aroc` by the `lookbackInput`. aroc /= lookbackInput // Plot the `aroc`. plot(aroc, "aroc", color.blue, 3)

Note that:

  • When iteratively generating logs or drawings from inside a loop, make it a point to avoid unnecessary clutter and strive for easy navigation. More is not always better for debugging, especially when working within loops.

Tips

Organization and readability

When writing scripts, it’s wise to prioritize organized, readable source codes. Code that’s organized and easy to read helps streamline the debugging process. Additionally, well-written code is easier to maintain over time.

Here are a few quick tips based on our Style guide and the examples on this page:

  • Aim to follow the general script organization recommendations. Organizing scripts using this structure makes things easier to locate and inspect.
  • Choose variable and function names that make them easy to identify and understand. See the Naming conventions section for some examples.
  • It’s often helpful to temporarily assign important parts of expressions to variables with informative names while debugging. Breaking expressions down into reusable parts helps simplify inspection processes.
  • Use comments and annotations (//@function, //@variable, etc.) to document your code. Annotations are particularly helpful, as the Pine Editor’s autosuggest displays variable and function descriptions in a pop-up when hovering over their identifiers anywhere in the code.
  • Remember that less is more in many cases. Don’t overwhelm yourself with excessive script outputs or unnecessary information while debugging. Keep things simple, and only include as much information as you need.

Speeding up repetitive tasks

There are a few handy techniques we often utilize when debugging our code:

  • We use plotchar() or plotshape() to quickly display the results of “int”, “float”, or “bool” variables and expressions in the script’s status line and the Data Window.
  • We often use bgcolor() to visualize the history of certain conditions on the chart.
  • We use a one-line version of our printLabel() function from this section to print strings at the end of the chart.
  • We use a label.new() call with a tooltip argument to display strings in tooltips on successive bars.
  • We use the log.*() functions to quickly display data with string representations in the Pine Logs pane.

When one establishes their typical debugging processes, it’s often helpful to create keyboard macros to speed up repetitive tasks and spend less time setting up debug outputs in each code.

The following is a simple AutoHotkey script (not Pine Script™ code) that includes hotstrings for the above five techniques. The script generates code snippets by entering a specified character sequence followed by a whitespace:

; ————— This is AHK code, not Pine Script™. —————
; Specify that hotstrings trigger when they end with space, tab, linefeed, or carriage return.
#Hotstring EndChars `t `n `r
:X:,,show::SendInput, plotchar(%Clipboard%, "%Clipboard%", "", color = chart.fg_color, display = display.all - display.pane){Enter}
:X:,,highlight::SendInput, bgcolor(bool(%Clipboard%) ? color.new(color.orange, 80) : na, title = "%Clipboard% highlight"){Enter}
:X:,,print::SendInput, printLabel(string txt, float price = na) => int labelTime = math.max(last_bar_time, chart.right_visible_bar_time), var label result = label.new(labelTime, na, txt, xloc.bar_time, na(price) ? yloc.abovebar : yloc.price, na, label.style_none, chart.fg_color, size.large), label.set_text(result, txt), label.set_y(result, price), result`nprintLabel(){Left}
:X:,,tooltip::SendInput, label.new(bar_index, high, color = color.new(chart.fg_color, 70), tooltip = str.tostring(%Clipboard%)){Enter}
:X:,,log::SendInput, log.info(str.tostring(%Clipboard%)){Enter}

The “,,show” macro generates a plotchar() call that uses the clipboard’s contents for the series and title arguments. Copying a variableName variable or the close > open expression and typing “,,show” followed by a space will respectively yield:

plotchar(variableName, "variableName", "", color = chart.fg_color, display = display.all - display.pane) plotchar(close > open, "close > open", "", color = chart.fg_color, display = display.all - display.pane)

The “,,highlight” macro generates a bgcolor() call that highlights the chart pane’s background with a conditional color based on the variable or expression copied to the clipboard. For example, copying the barstate.isrealtime variable and typing “,,highlight” followed by a space will yield:

bgcolor(bool(barstate.isrealtime) ? color.new(color.orange, 80) : na, title = "barstate.isrealtime highlight")

The “,,print” macro generates the one-line printLabel() function and creates an empty printLabel() call with the cursor placed inside it. All you need to do after typing “,,print” followed by a space is enter the text you want to display:

printLabel(string txt, float price = na) => int labelTime = math.max(last_bar_time, chart.right_visible_bar_time), var label result = label.new(labelTime, na, txt, xloc.bar_time, na(price) ? yloc.abovebar : yloc.price, na, label.style_none, chart.fg_color, size.large), label.set_text(result, txt), label.set_y(result, price), result printLabel()

The “,,tooltip” macro generates a label.new() call with a tooltip argument that uses str.tostring() on the clipboard’s contents. Copying the variableName variable and typing “,,tooltip” followed by a space yields:

label.new(bar_index, high, color = color.new(chart.fg_color, 70), tooltip = str.tostring(variableName))

The “,,log” macro generates a log.info() call with a message argument that uses str.tostring() on the clipboard’s contents to display string representations of variables and expressions in the Pine Logs pane. Copying the expression bar_index % 2 == 0 and typing “,,log” followed by a space yields:

log.info(str.tostring(bar_index % 2 == 0))

Note that:

  • AHK is available for Windows devices. Research other software to employ a similar process if your machine uses a different operating system.
